Only one light source can be illuminated at the same time.
It may take some minutes until the color temperature and illuminance of the lamps are
reliably stable. All values measured in the acceptance protocol were measured three minutes
after switching on the lights.

4.2 LED lightHEAD V2 (lightSTUDIO-L)

6
The lightHEAD with iQ-LED V2 technique adds more functionality and a more comprehensive
illuminance range (25 - 2000 lux) to the previous lightHEAD version. See the datasheet for more
technical information. The lightHEAD incorporates a control panel, which enables the user to use it
without a connection to a PC.

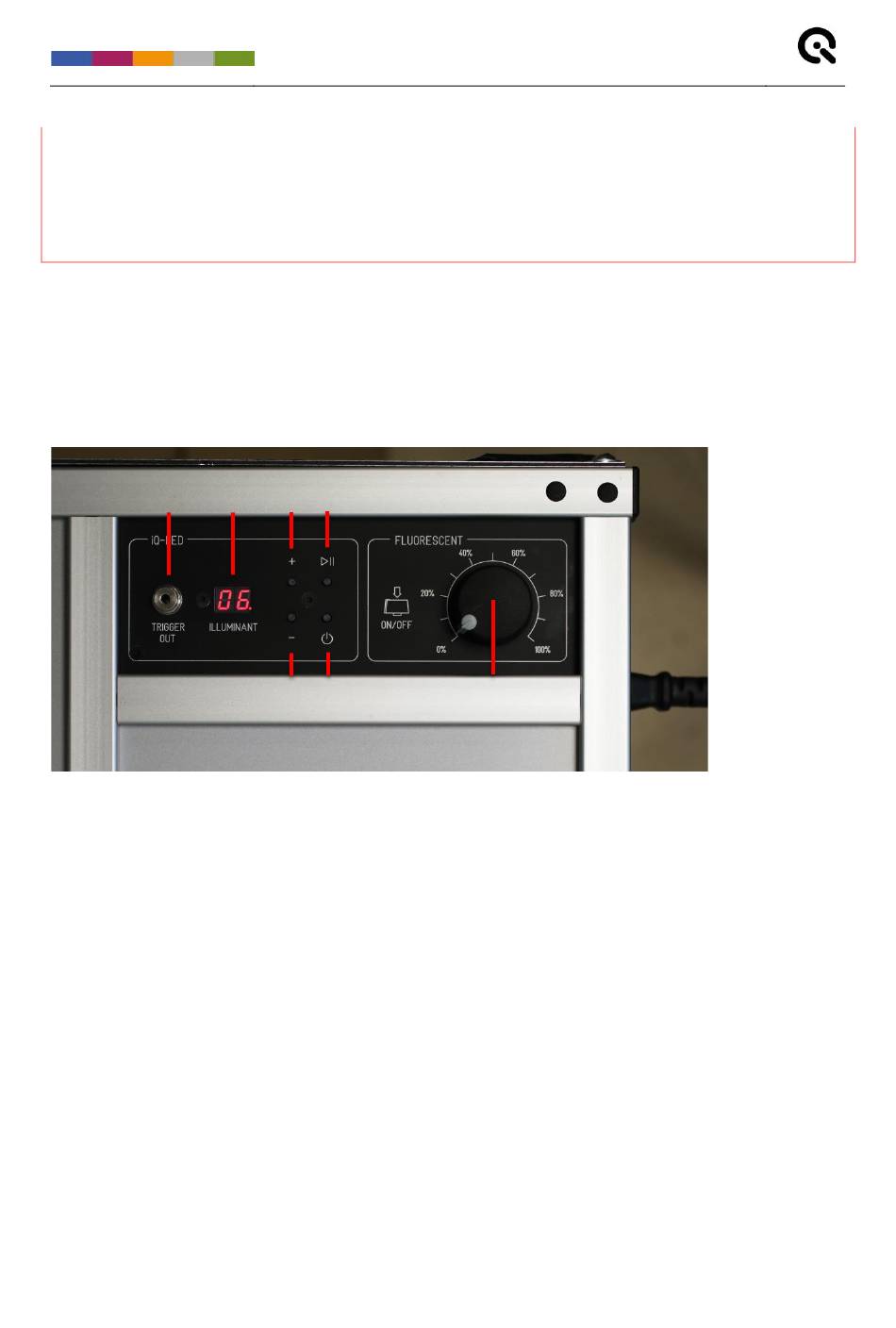

Usage of control elements:
[1] Hold the power switch for two seconds to turn the LED light on and off.
[2] [3] Switch between 44 stored illuminants. Use iQ-LED software > V3.0.0 to generate and store
illuminants on the lightHEAD.
[4] It plays and interrupts a sequence of illuminants. Use iQ-LED software > V3.0.0 to generate
and store a sequence on the lightHEAD. Three default illuminants are stored upon delivery of
the device: A, D50, and D75, with intensities noted in the acceptance protocol.
[5] Displays the memory slot number of an illuminant. Read the iQ-LED software manual
instructions to see how the number is assigned to an illuminant.
