5.3 Settings

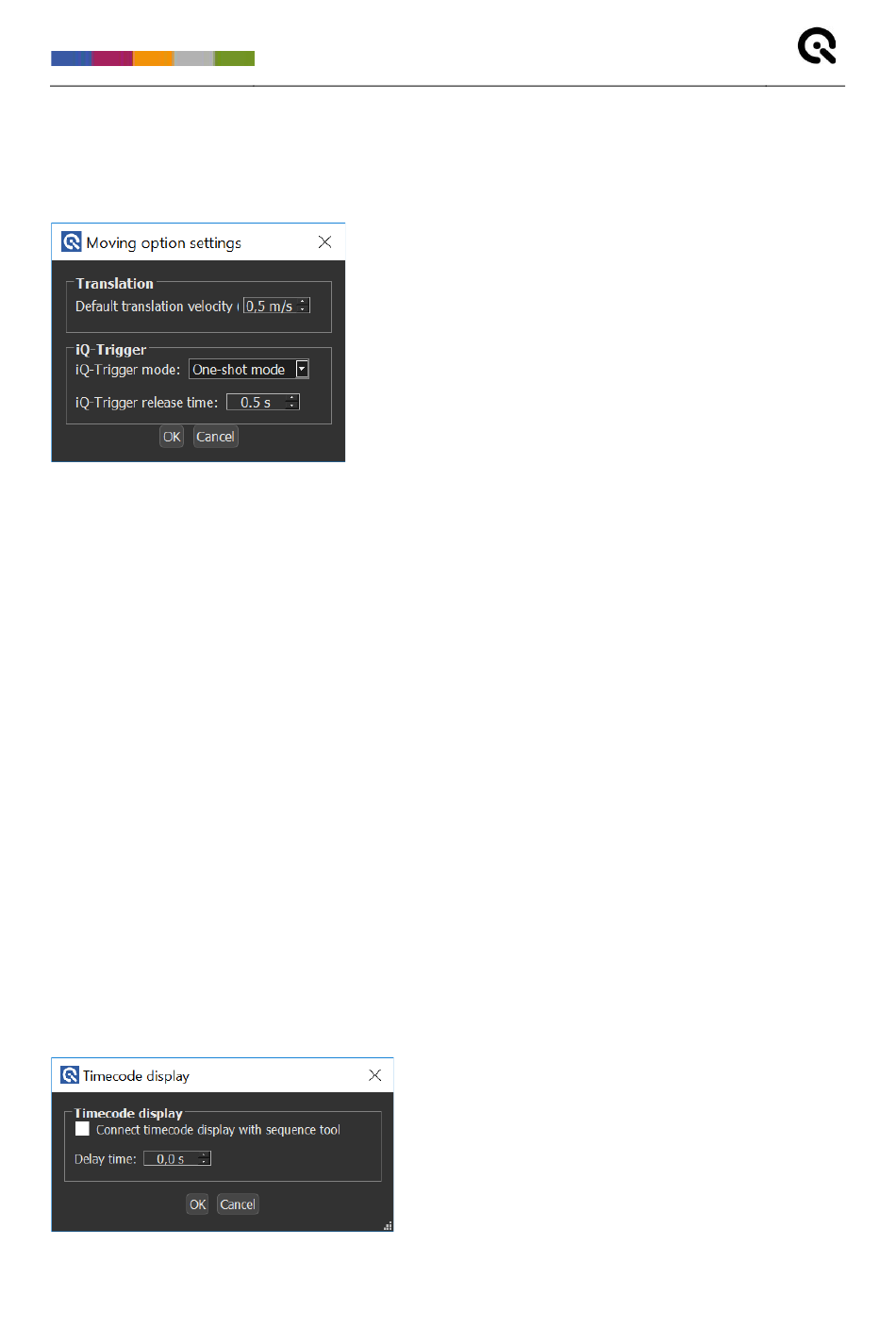

5.3.1 Moving option settings (lightSTUDIO-M)

In the Moving option settings dialog, specifications can be modified for some components of the
Moving lightSTUDIO.
The default translation velocity [1] defines the transportation speed of the moving test chart in a range
between 0.01 and 3.0 m/s. This value is used for the movement when clicking the move left, move
home, or move right buttons and as speed for the return movements of a sequence.
The iQ-Trigger mode menu [2] offers three options for the behavior of the iQ-Trigger:
One-shot mode:
Toggle mode:
Continuous mode: iQ-Trigger is released by pressing the start/stop button and stays activated
The iQ-Trigger release time [3] denotes the duration of the iQ-Trigger release when the one-shot
mode is selected. The minimum time is 0.1 s.

5.3.2 Timecode display settings (lightSTUDIO-M)

Image Engineering
1
2
3
iQ-Trigger is released once with the start/stop button and stays activated with
a predefined duration time, as edited in the corresponding field below.
iQ-Trigger is released by clicking the start/stop button and stays activated until
the next click on the button.
until the button is released.
1
2
