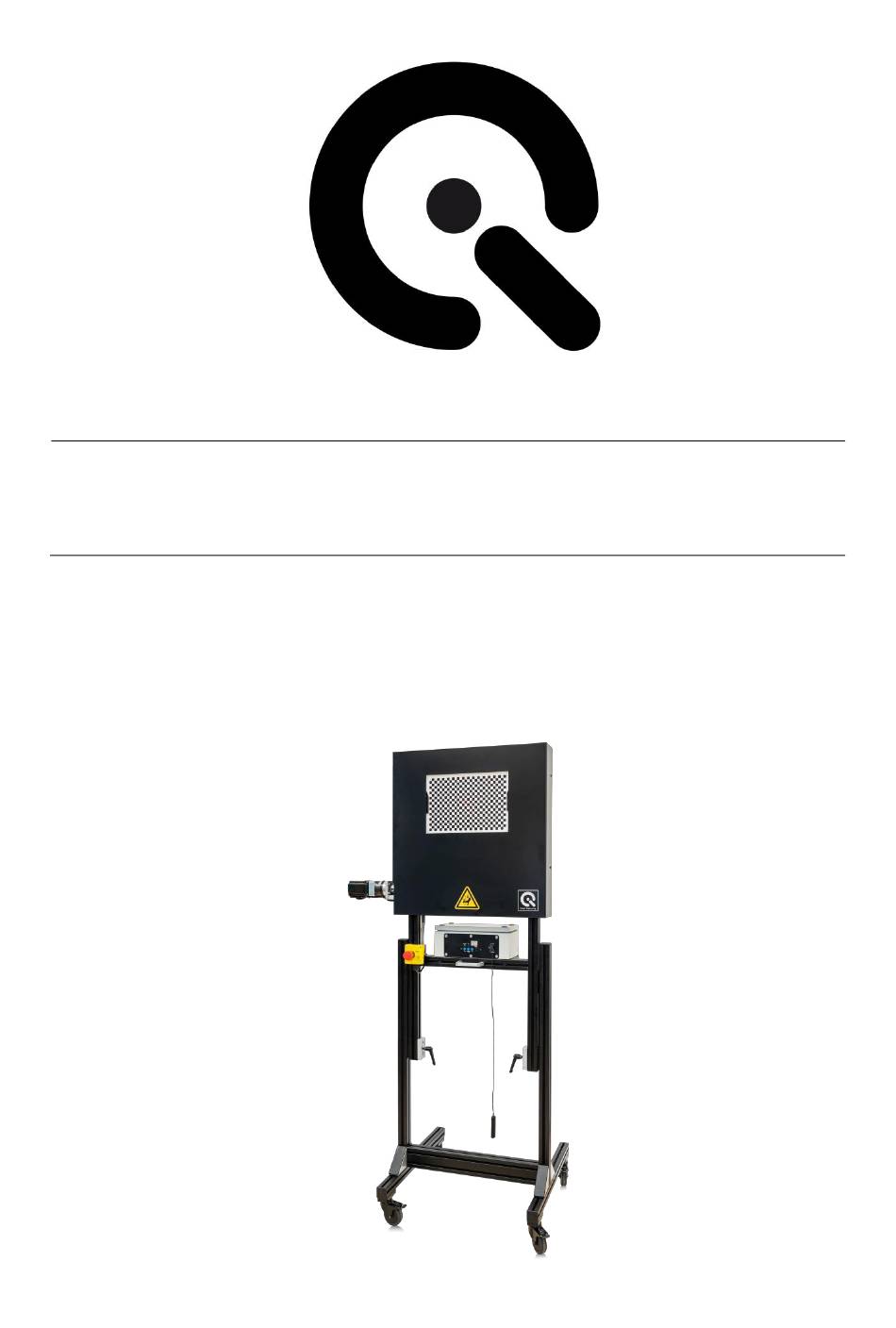

- Page 1 Focus User Manual September 8, 2021 Image Engineering GmbH & Co. KG · Im Gleisdreieck 5 · 50169 Kerpen-Horrem · Germany T +49 2273 99991 - 0 · F +49 2273 99991 -10 · www.image-engineering.com...
-
Page 2: Table Of Contents
2.2 Commissioning ......................5 OPERATING INSTRUCTIONS HARDWARE ..............8 3.1 Controls ........................8 3.2 Height adjustment of frame ..................9 3.3 Using iQ-Near Focus with other IE measurement devices ........10 3.3.1 LED-Panel V4 (timing measurement) ..............10 3.4 Care instructions ......................10 ADDITIONAL INFORMATION ..................11 4.1 Storage and transport ....................11... -
Page 3: Introduction
RoHS 2 - 2011/65/EU 1.2 Intended use iQ-Near Focus is used to focus the automatic focusing system of a camera to a defined, short distance with high temporal accuracy. A high contrast, translucent checkerboard chart is used for that purpose. -
Page 4: Safety Distance
1.3.3 Safety distance To ensure user safety, keep a safe distance of approx. 1m from the unit during operation. To facilitate this, the iQ-Near Focus comes with a wired remote control that connects to the control box. Emergency STOP switch... -
Page 5: Getting Started
• Hex keys for frame assembly 2.2 Commissioning The iQ-Near Focus comes almost ready to use. Only the feet of the frame need to be mounted before using the device using the included hex keys. Step 1: Guide the slot nuts into the corresponding groove on each foot profile (Figure 1). Slide on, until hole in foot profile aligns with screw head between the four slot nuts (Figure 2). - Page 6 Tighten downward facing screws on both sides to secure the feet and stabilize the frame. To complete assembly, the cover caps are placed on the brackets and the open ends of the profiles (Figure 3). Tighten screws on either side of frame Figure 4: Finalization Image Engineering iQ-Near Focus Seite 6 von 11...
- Page 7 Then place the supplied profile caps on the open ends of the frame. A rubber mallet can be helpful here. Finally tighten the hand levers down to secure the position of the upper frame. Image Engineering iQ-Near Focus Seite 7 von 11...
-
Page 8: Operating Instructions Hardware
Engineering Support Team. Green “Referenced” LED. Lights up after successful initialization and homing process after switching the device on. When the green LED is on, iQ-Near Focus is ready for use. “Homing” Button. Manually restart the homing process in case the test chart has been moved by hand or whenever you are unsure if the initial homing after startup is still valid. -
Page 9: Height Adjustment Of Frame
“Reset” function: Resets the device in case of an error and turns off “Error” LED. “Profile” function: iQ-Near Focus has two modes of movement. Starting at the top position: Quickly move down to clear the camera's FOV, stay down for the set duration and then slowly move back up. -
Page 10: Using Iq-Near Focus With Other Ie Measurement Devices
3.3.1 LED-Panel V4 (timing measurement) Figure 1 Connection scheme iQ-Near Focus and LED-Panel V4 Place iQ-Near Focus in front of the device under test and connect the TRS connector (6.35 mm “jack plug”) to the corresponding port labeled “Defocus” on the LED-Panel V4. -
Page 11: Additional Information
Additional information ADDITIONAL INFORMATION 4.1 Storage and transport Ensure that the iQ-Near Focus is fixed and the device is wrapped properly for transport to avoid damages of the shutterblade. Unplug all cables/devices from iQ-Near Focus before storage/transport. 4.2 Disposal instructions After the service life of iQ-Near Focus, it must be disposed properly.
