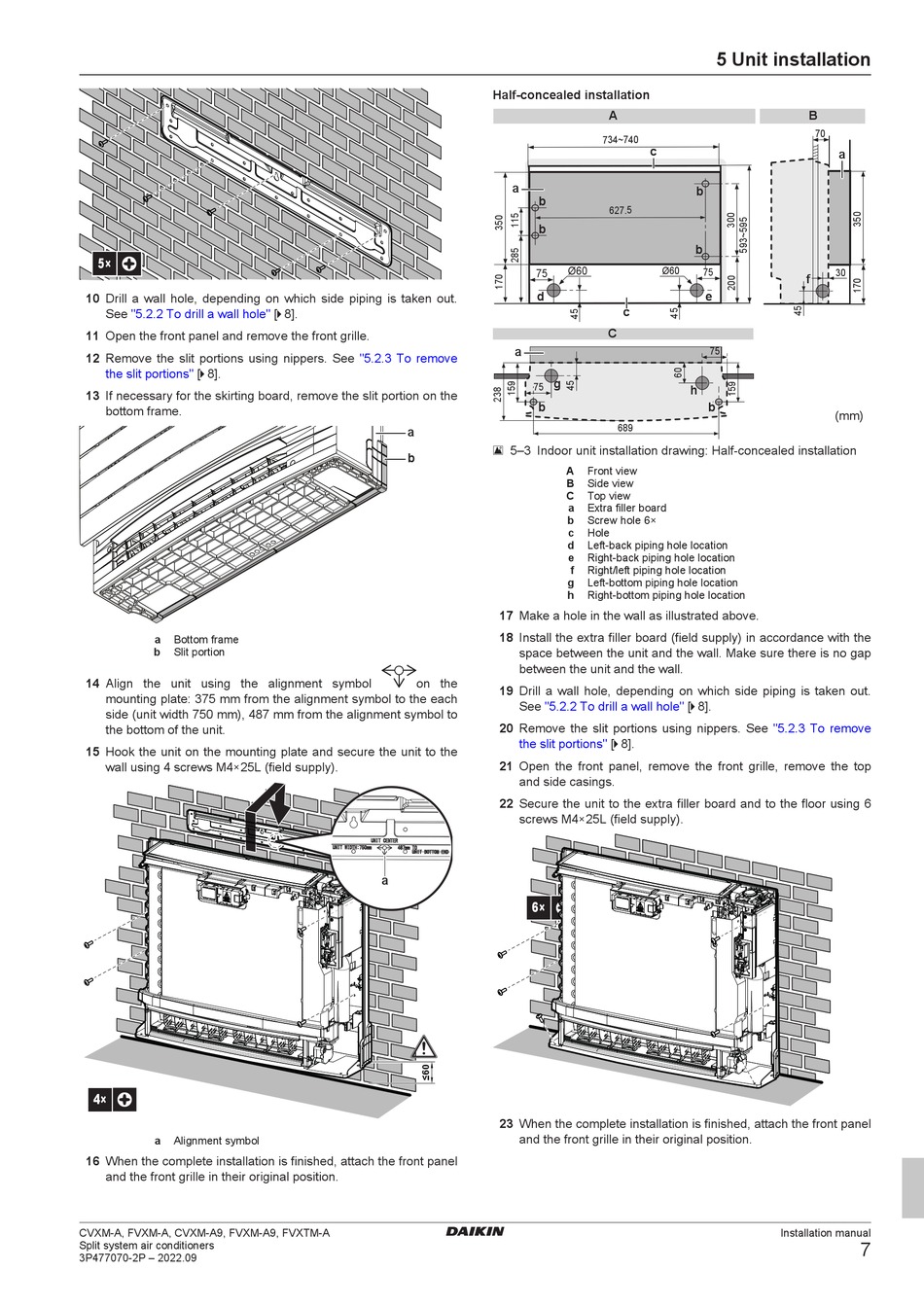

Daikin CVXM20A3V1B Installation Manual page 7

5×
10 Drill a wall hole, depending on which side piping is taken out.
hole" [ 4 8].
See "5.2.2 To drill a wall
11 Open the front panel and remove the front grille.
12 Remove the slit portions using nippers. See
portions" [ 4 8].
the slit
13 If necessary for the skirting board, remove the slit portion on the
bottom frame.
a Bottom frame
b Slit portion
14 Align the unit using the alignment symbol
mounting plate: 375 mm from the alignment symbol to the each
side (unit width 750 mm), 487 mm from the alignment symbol to
the bottom of the unit.
15 Hook the unit on the mounting plate and secure the unit to the
wall using 4 screws M4×25L (field supply).
4×
a Alignment symbol
16 When the complete installation is finished, attach the front panel
and the front grille in their original position.
CVXM-A, FVXM-A, CVXM-A9, FVXM-A9, FVXTM-A
Split system air conditioners
3P477070-2P – 2022.09
Half-concealed installation
a
a
"5.2.3 To remove
a
5‒3 Indoor unit installation drawing: Half-concealed installation
b
17 Make a hole in the wall as illustrated above.
18 Install the extra filler board (field supply) in accordance with the
space between the unit and the wall. Make sure there is no gap
between the unit and the wall.
on the
19 Drill a wall hole, depending on which side piping is taken out.
See
20 Remove the slit portions using nippers. See
the slit
21 Open the front panel, remove the front grille, remove the top
and side casings.
22 Secure the unit to the extra filler board and to the floor using 6
screws M4×25L (field supply).
a
6×
23 When the complete installation is finished, attach the front panel
and the front grille in their original position.
A
c
b
b
b
b
d e
c
C
g
h
b b
A Front view
B Side view
C Top view
a Extra filler board
b Screw hole 6×
c Hole
d Left-back piping hole location
e Right-back piping hole location
f Right/left piping hole location
g Left-bottom piping hole location
h Right-bottom piping hole location
"5.2.2 To drill a wall hole" [ 4 8].
portions" [ 4 8].
5 Unit installation
B
a
f
(mm)
"5.2.3 To remove
Installation manual
7
