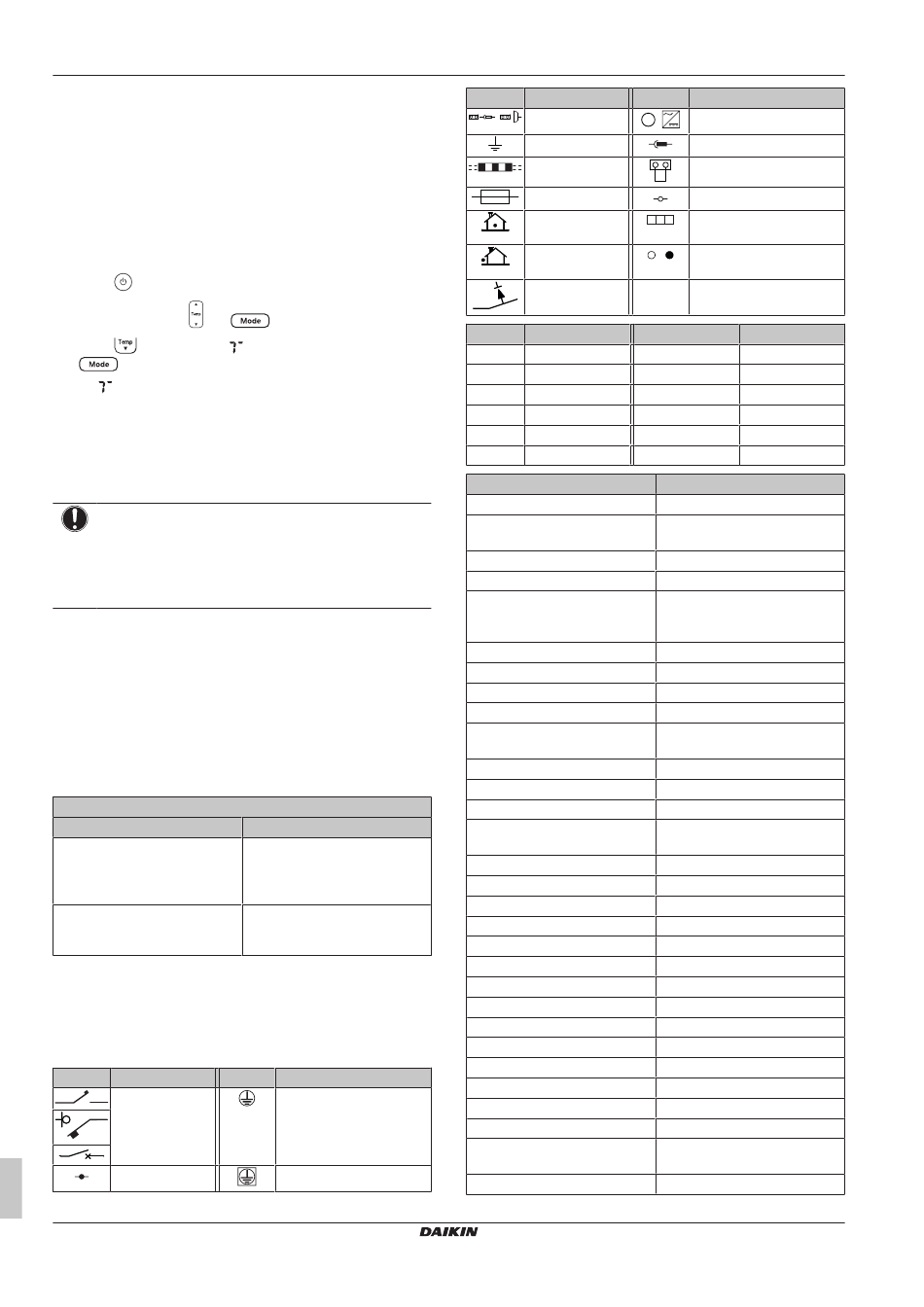

11 Disposal

1 In cooling mode, select the lowest programmable temperature.
In heating mode, select the highest programmable temperature.
Test run can be disabled if necessary.
2 When the test run is finished, set the temperature to a normal
level. In cooling mode: 26~28°C, in heating mode: 20~24°C.
3 The system stops operating 3 minutes after the unit is turned
OFF.
10.1.1 To perform a test run using the wireless
remote control
1 Press to switch the system on.
2 Press the middle of and
3 Press twice to choose
.
Result: on the display indicates that the test run is selected. Test
run operation will stop automatically after about 30 minutes.
4 To stop operation sooner, press the ON/OFF button.
11 Disposal
NOTICE
Do NOT try to dismantle the system yourself: dismantling
of the system, treatment of the refrigerant, oil and other
parts MUST comply with applicable legislation. Units
MUST be treated at a specialised treatment facility for
reuse, recycling and recovery.
12

Technical data

▪ A subset of the latest technical data is available on the regional
Daikin website (publicly accessible).
▪ The full set of latest technical data is available on the Daikin
Business Portal (authentication required).
12.1

Wiring diagram

Translation of wiring the diagram notes
On wiring diagram
Caution: When the main power is
turned OFF and then back on
again, operation will resume
automatically.
Notice: (*) Applicable for units
with refrigerant leakage sensor
only.
12.1.1

Unified wiring diagram legend

For applied parts and numbering, refer to the wiring diagram on the
unit. Part numbering is by Arabic numbers in ascending order for
each part and is represented in the overview below by "*" in the part
code.
Symbol Meaning Symbol Meaning
Circuit breaker
Connection
Installation manual
12
simultaneously.
and confirm selection by pressing
Translation
Caution: When the main power is
turned OFF and then back on
again, operation will resume
automatically.
Notice: (*) Applicable for units
with refrigerant leakage sensor
only.
Protective earth
Protective earth (screw)
Symbol Meaning Symbol Meaning
,
Connector
Earth
Field wiring
Fuse
Indoor unit
INDOOR
Outdoor unit
OUTDOOR
Residual current
device
Symbol Colour Symbol
BLK Black ORG
BLU Blue PNK
BRN Brown PRP, PPL
GRN Green RED
GRY Grey WHT
SKY BLU Sky blue YLW
Symbol
A*P
BS*
BZ, H*O
C*
AC*, CN*, E*, HA*, HE*, HL*,
HN*, HR*, MR*_A, MR*_B, S*, U,
V, W, X*A, K*R_*, NE
D*, V*D
DB*
DS*
E*H
FU*, F*U, (for characteristics,
refer to PCB inside your unit)
FG*
H*
H*P, LED*, V*L
HAP
HIGH VOLTAGE
IES
IPM*
K*R, KCR, KFR, KHuR, K*M
L
L*
L*R
M*
M*C
M*F
M*P
M*S
MR*, MRCW*, MRM*, MRN*
N
n=*, N=*
PAM
CVXM-A, FVXM-A, CVXM-A9, FVXM-A9, FVXTM-A
A
Rectifier
,
Relay connector
Short-circuit connector
Terminal
Terminal strip
Wire clamp
Colour
Orange
Pink
Purple
Red
White
Yellow
Meaning
Printed circuit board
Pushbutton ON/OFF, operation
switch
Buzzer
Capacitor
Connection, connector
Diode
Diode bridge
DIP switch
Heater
Fuse
Connector (frame ground)
Harness
Pilot lamp, light emitting diode
Light emitting diode (service
monitor green)
High voltage
Intelligent eye sensor
Intelligent power module
Magnetic relay
Live
Coil
Reactor
Stepper motor
Compressor motor
Fan motor
Drain pump motor
Swing motor
Magnetic relay
Neutral
Number of passes through ferrite
core
Pulse-amplitude modulation
Split system air conditioners
