4. Remove the cleaner from the pool and
untangle all kinks and coils in the power cable.
Start at the cleaner head. Lay the cable in the
sun to loosen any tangling memory.

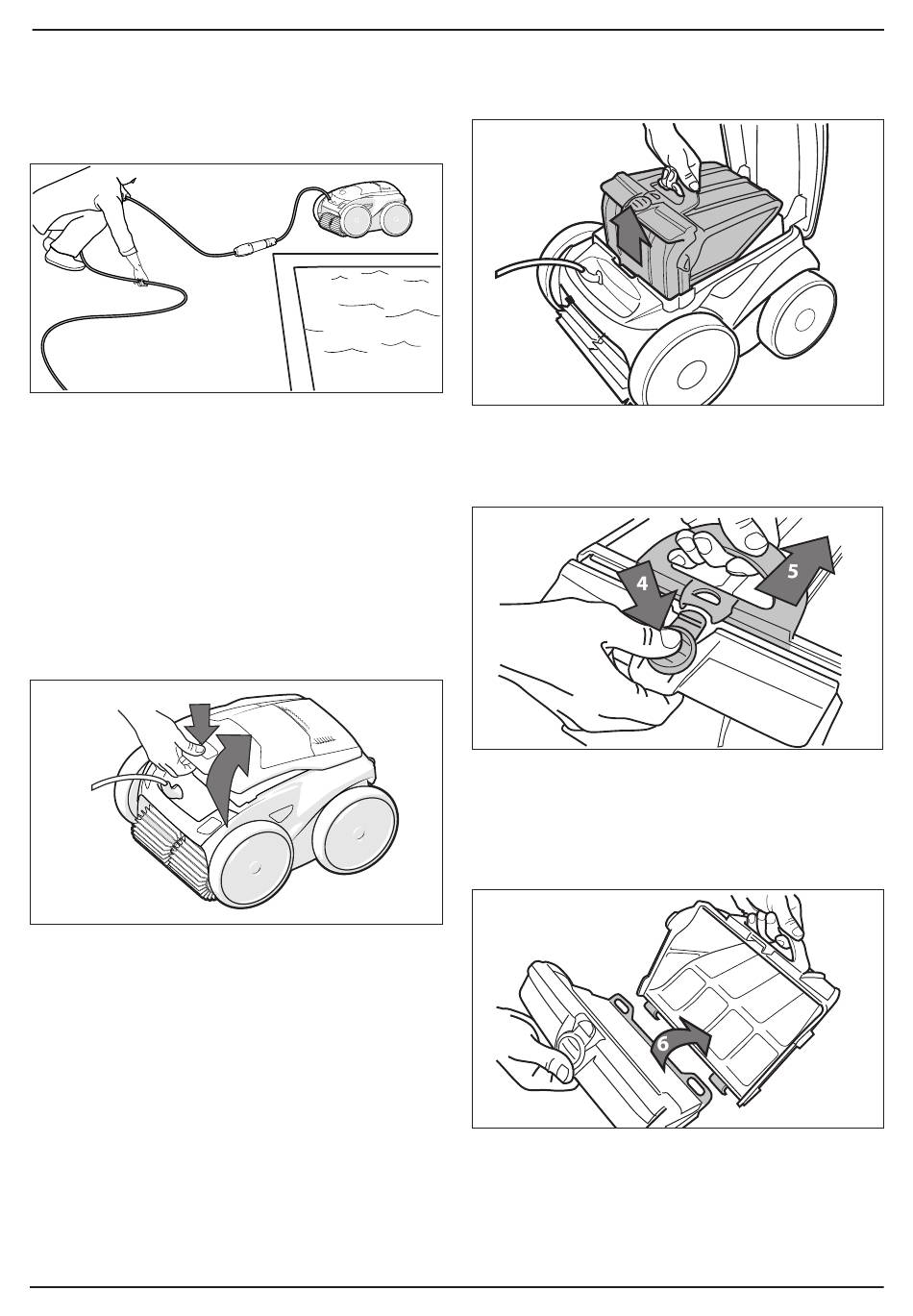

Figure 9. Untangle
7.2

Clean the Filter Canister

The filter canister should be cleaned at the end of
each cycle.
1. Remove the cleaner from the water using the
Lift System and let the remaining water drain.
2. Set the unit on four wheels.
3. Push the cover lock (1) and lift the cover (2)
until it is secured in the vertical position.
1
Figure 10. Lift Cleaner Cover
2
4. Remove the filter canister assembly from the
body (3), as shown.
3
Figure 11. Remove Filter Canister Assembly
5. Push the quick release button on the canister
assembly (4) and pull open.
Figure 12. Open Filter Canister Assembly
6. Separate the filter canister from the filter
support (6), as shown.
Figure 13. Remove Filter Canister
ENGLISH
Page 15
