Quick User Guide
Warning before installation
-Power off the Network camera if it is found to be smoking or smells unusual.
-Keep the Network camera away from water. If the Network camera gets wet, power
off immediately.
-Do not place the Network camera near heat sources, such as a television or oven.
-Refer to your instruction manual for the operating temperature.
-Keep the Network camera away from direct sunlight.
-Do not place the Network camera in high humidity environments.
-Do not place the Network camera on unsteady surfaces.
-Do not touch the Network camera when there is lightning present.
-Do not disassemble the Network camera.
-Do not drop the Network camera.
-Do not insert any object into the Network camera, such as a screwdriver.
For other safety and regulation information, please refer to "User's manual".
1. Check Contents
No.
Item
1
Network Camera
2
Software CD
3
Quick User Guide
4
Accessories
2. Physical Description
1. Network (RJ-45 PoE supported)
2. Power (DC12V / AC24V)
3. I/O signal terminal block
-Audio In
(Line in)
-Audio Out (Line Out)
-Alarm In
(Dry Contact)
-Alarm Out (Relay out [2A:AC120V/DC60V])

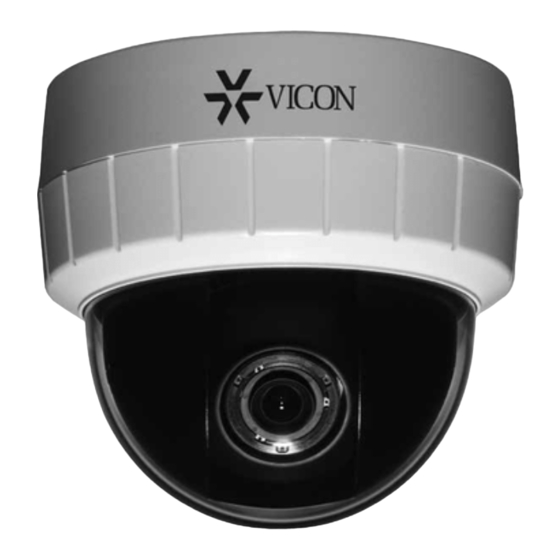

V960D Series Indoor Network Camera
Description
V960D Series (V960D-N312, V960D-N312M,
V960D-N922M, V961D-N312, V961D-N312M,
V961D-N922M, V962D-N312, V962D-N312M,
V962D-N922M,)
User's Manual, Utility software
This document
Template for installation
Video monitor cable
Tapping Screw 4x30: 2pcs
Anchor: 2pcs
Tapping Screw for middle cover 3x8: 2pcs
Network extension cable
Power cable
1
Advertisement
Table of Contents
Related Manuals for Vicon V960D-N312M
Summary of Contents for Vicon V960D-N312M
- Page 1 -Do not insert any object into the Network camera, such as a screwdriver. For other safety and regulation information, please refer to “User’s manual”. 1. Check Contents Item Description Network Camera V960D Series (V960D-N312, V960D-N312M, V960D-N922M, V961D-N312, V961D-N312M, V961D-N922M, V962D-N312, V962D-N312M, V962D-N922M,) Software CD User’s Manual, Utility software...
- Page 2 Quick User Guide V960D Series Indoor Network Camera 4. Micro SD card (SDHC supported) 5. Reset Button 6. Status LED 7. Video output for service monitor 3. Making Connection 2. Connect Ethernet cable to make 1. If you have external devices such connection to the network hub.
- Page 3 Quick User Guide V960D Series Indoor Network Camera 4. Assign IP address The default setting of the camera is set to “DHCP” and “UPnP” function is set to ON. If you have a DHCP server on your network and UPnP function is enabled on your PC you can find the network camera in “My network”.
- Page 4 Quick User Guide V960D Series Indoor Network Camera Note: By Default the cameras come with “Installation Mode” set to “ON” to enable Analog output. You must turn Installation Mode Off to use 720p or 1080p streaming. For further information on setup, refer to User’s manual on software CD.
