Quick User Guide
Warning before installation
-Power off the Network camera if it is found to be smoking or smells unusual.
-Keep the Network camera away from water. If the Network camera gets wet, power
off immediately.
-Do not place the Network camera near heat sources, such as a television or oven.
-Refer to your instruction manual for the operating temperature.
-Keep the Network camera away from direct sunlight.
-Do not place the Network camera in high humidity environments.
-Do not place the Network camera on unsteady surfaces.
-Do not touch the Network camera when there is lightning present.
-Do not disassemble the Network camera.
-Do not drop the Network camera.
-Do not insert any object into the Network camera, such as a screwdriver.
For other safety and regulation information, please refer to User's manual.
1. Check Contents
No.
Item
1
Network Camera
2
Software CD
3
Quick User Guide
4
Accessories
2. Physical Description
Rear View
1. Alarm In/Out, Audio In/Out (use terminal block connector)
2. Video Out
3. Micro SD card (SDHC supported)
Description
V960-N Series (V960-N, V961-N, V962-N)
User's Manual, Utility software
This document
Mounting bracket
Screws for mounting bracket
C-mount adapter ring
DC jack adapter
Dust protection cap
Terminal block connector
Allen wrench

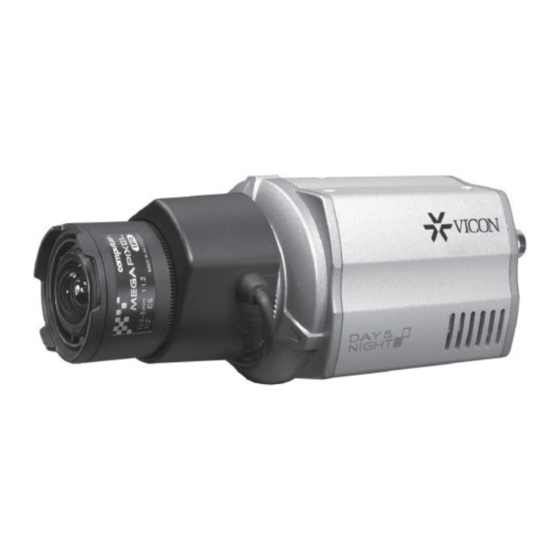

V960-N Series Network Camera
1
Advertisement
Table of Contents
Related Manuals for Vicon V960-N Series
Summary of Contents for Vicon V960-N Series
-
Page 1: Physical Description
-Do not insert any object into the Network camera, such as a screwdriver. For other safety and regulation information, please refer to User’s manual. 1. Check Contents Item Description Network Camera V960-N Series (V960-N, V961-N, V962-N) Software CD User’s Manual, Utility software Quick User Guide This document Accessories... - Page 2 Quick User Guide V960-N Series Network Camera 4. Network (RJ-45 PoE supported) 5. Reset Button 6. Power (DC12V / AC24V) 7. Status LED 8. DC Iris Front View 9. Flange back locking screw 3. Making Connection 1. If you have external devices such as sensor or alarms, make connection from terminal block connector.
- Page 3 Quick User Guide V960-N Series Network Camera 4. Assign IP Address Default setting is set to “DHCP” and “UPnP” function is set to ON. If your network has a DHCP server and the UPnP function is enabled on your PC, you can find the camera in “My Network”.
- Page 4 Quick User Guide V960-N Series Network Camera 5. Web Browser Connection Note : The Network camera supports Internet Explorer® 7 or above. Please check version of your browser and update it if necessary. When you first access the camera you need to download and install an Active X control from the camera to display a Live image.
