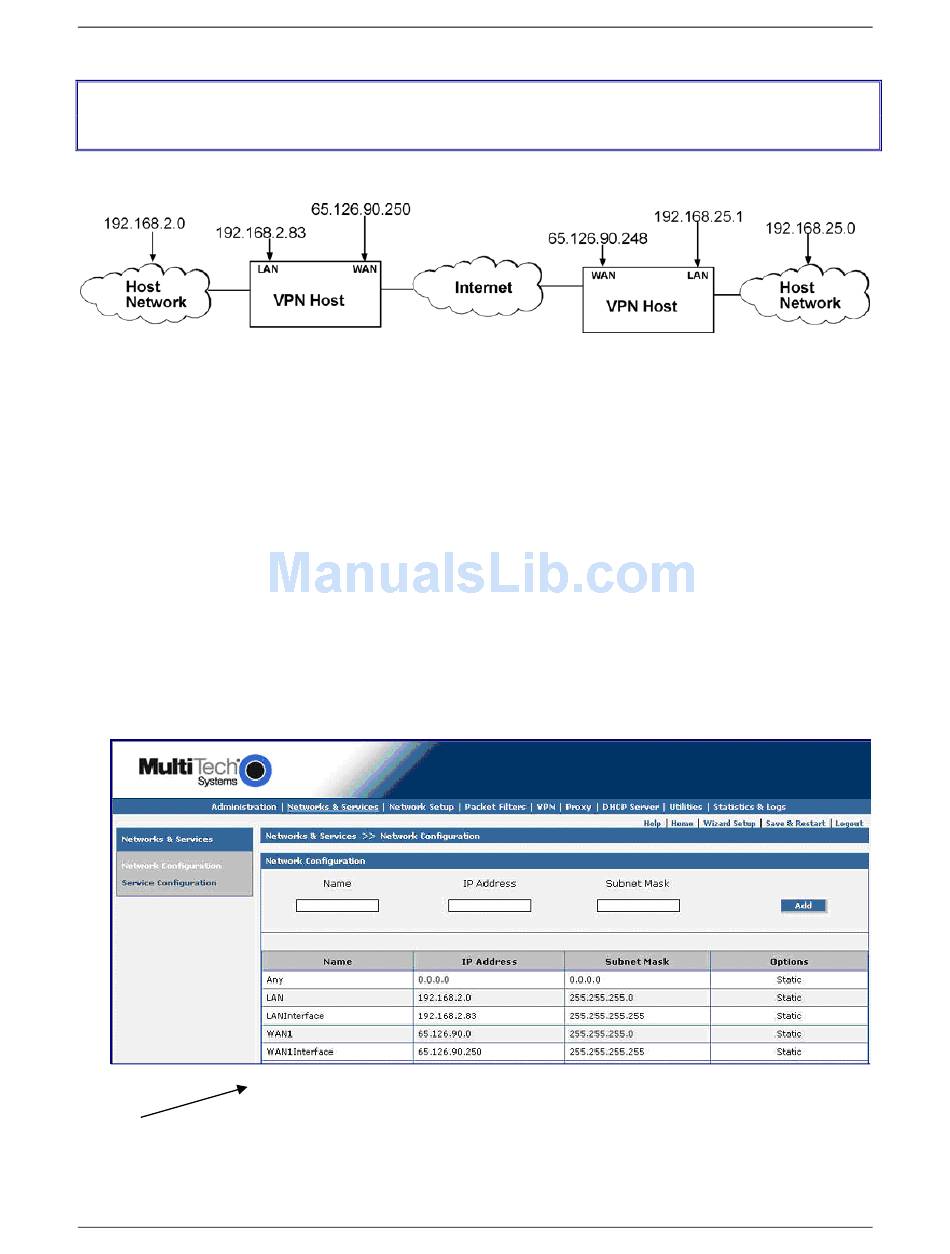

Example 2 – A Setup Using Two RouteFinders
Behind a Non-NAT Device
Side A
Note: Prerequisite Steps must be completed before you start this setup.
The Following Directions Apply to Side A of Example 2
Step 1 for Side A – Network Setup
1. Log in to your RouteFinder and go to the Networks & Services screen.
2. Enter a Name for the remote WAN IP address. Example: Remote-WAN
3. Enter the remote WAN IP Address (Ex. 65.126.90.250) with a single Subnet Mask of
255.255.255.255
4. Click Add to add the network to the list
5. Enter a Name for the remote LAN IP Address. Example: Remote-LAN
6. Enter the remote LAN IP Address (Ex. 192.168.2.0) with a network Subnet Mask for the
255.255.255.0.
Once the network configuration is complete, the information about that network displays at the bottom
of the screen.
Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B)
Remote-WAN 65.126.90.248
Remote-LAN 192.168.25.0
Chapter 1 – Non-NAT Setup Examples
Side B
255.255.255.255
255.255.255.0
Edit | Delete
Edit | Delete
