Prerequisite Step 3 – Client Phase 2 Setup (Behind
NAT)
1.

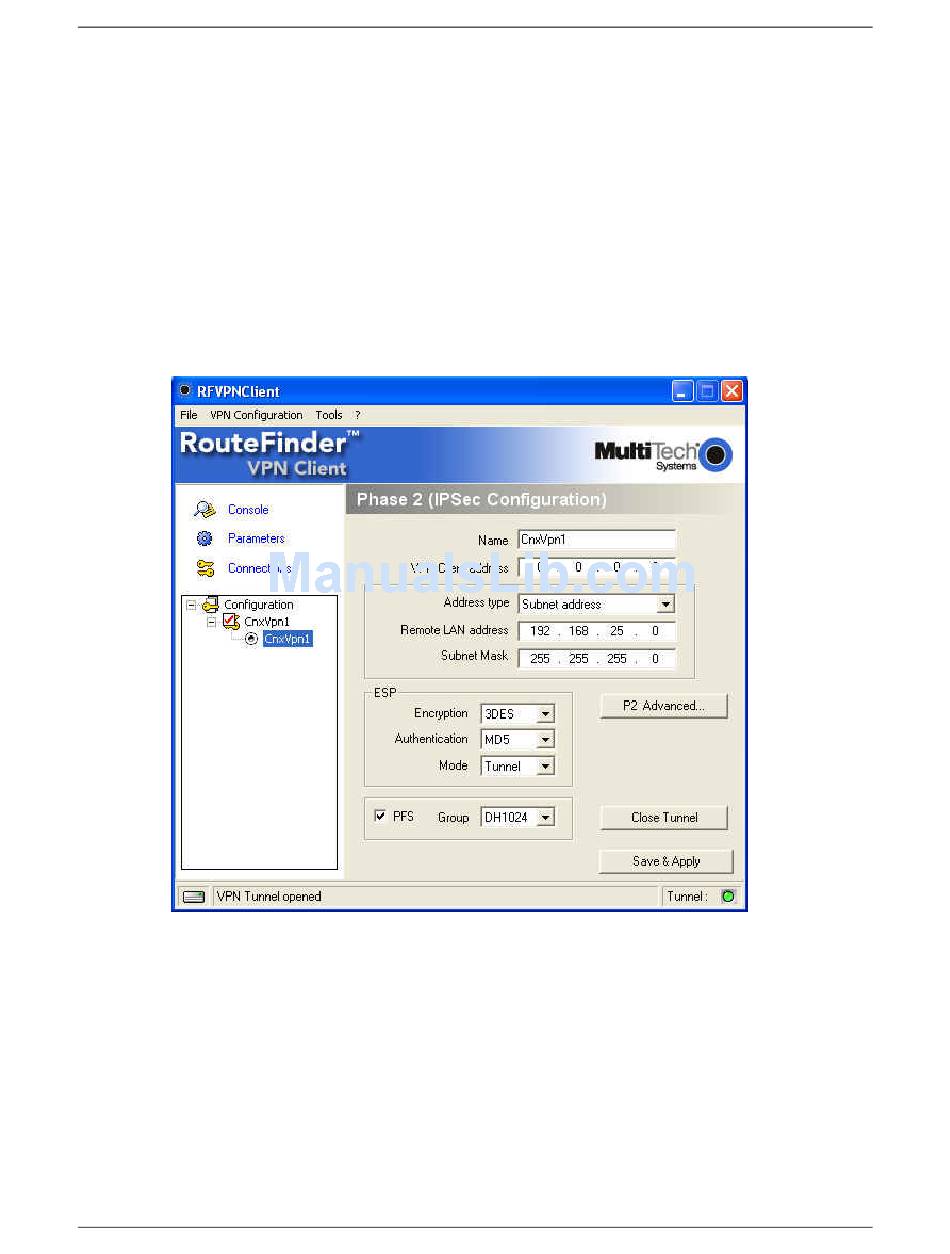

Start Phase 2 by right clicking on the name of your VPN Client you created in Phase 1.
2.
The VPN Client address will be set to 0.0.0.0 unless you have a Static IP address. Example:
65.126.90.250
3.
The Address type is the type of setup on the host side. If it's a network, then choose
Subnet address and enter the Remote LAN address (Ex. 192.168.25.0) and the Subnet
Mask (Ex. 255.255.255.0). If it's a single IP address, change it to that address.
4.
For ESP Authentication choose MD5.
5.
Click OK.
Multi-Tech Systems, Inc. RF825 Series IPSec VPN Setup Examples – A Reference Guide (S000440B)
Chapter 2 – Behind NAT Setup Examples
20
