- Page 1 SDX-DM ELECTRONIC FAN SPEED CONTROLLER Mounting and operating instructions...
- Page 2 SDX-DM ELECTRONIC FAN SPEED CONTROLLER Table of contents SAFETY AND PRECAUTIONS PRODUCT DESCRIPTION ARTICLE CODES INTENDED AREA OF USE TECHNICAL DATA STANDARDS OPERATIONAL DIAGRAMS WIRING AND CONNECTIONS MOUNTING INSTRUCTIONS IN STEPS OPERATING INSTRUCTIONS TRANSPORT AND STORAGE WARRANTY AND RESTRICTIONS MAINTENANCE MIW-SDX-DM-EN-000 - 17 / 06 / 2021 2 - 8 www.sentera.eu...
- Page 3 SDX-DM ELECTRONIC FAN SPEED CONTROLLER SAFETY AND PRECAUTIONS Read all the information, the datasheet, Modbus map, mounting and operating instructions and study the wiring and connection diagram before working with the product. For personal and equipment safety, and for optimum product performance, make sure you entirely understand the contents before installing, using or maintaining this product.

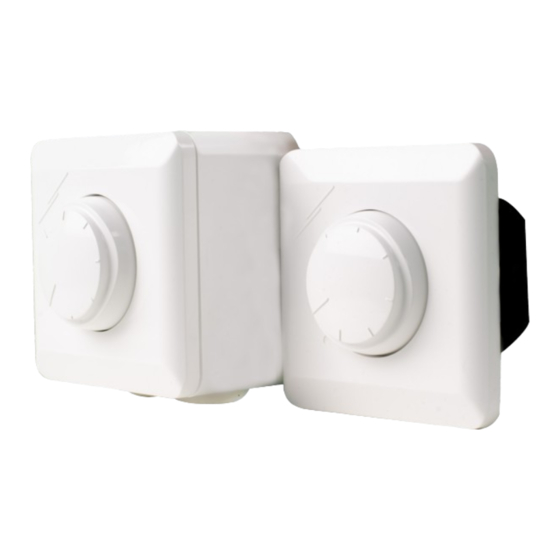

- Page 4 CONTROLLER PRODUCT DESCRIPTION The SDX-DM series are electronic fan speed controllers, which allow you to manually adjust the rotational speed of single phase AC motors by varying the motor voltage through phase angle control. The output can be regulated from minimum to maximum or from maximum to minimum.
- Page 5 SDX-DM ELECTRONIC FAN SPEED CONTROLLER ► EN 61000-3-2:2014 Electromagnetic compatibility (EMC) – Part 3-2: Limits - Limits for harmonic current emissions (equipment input current ≤ 16 A per phase) ■ WEEE Directive 2012/19/EU ■ RoHs Directive 2011/65/EU OPERATIONAL DIAGRAMS Low to high speed with soft start Low to high speed with kick start Uout [%] Uout [%]...
- Page 6 SDX-DM ELECTRONIC FAN SPEED CONTROLLER MOUNTING INSTRUCTIONS IN STEPS Before you start mounting the unit, read carefully “Safety and Precautions” and follow these steps: Inset mounting Disconnect the mains supply. Remove the knob by pulling it out. Unscrew the washer to remove the cover of the external enclosure. Do the wiring according to the wiring diagram (see Fig.
- Page 7 SDX-DM ELECTRONIC FAN SPEED CONTROLLER Mount back the cover and secure it with the washer. Put back the knob and turn it to off position. Turn on the power supply. Surface mounting Disconnect the mains supply. Remove the knob by pulling it out. Unscrew the washer to remove the cover of the external enclosure.
- Page 8 SDX-DM ELECTRONIC FAN SPEED CONTROLLER OPERATING INSTRUCTIONS ATTENTION Use only tools and equipment with non-conducting handles when working on electrical devices. The controller is to be used only with voltage controllable fans / motors. You can connect several motors to the controller as long as the current limit is not exceeded. The motor should be protected against overheating.
