MultiVOIP Gatekeeper

Single Board Computer

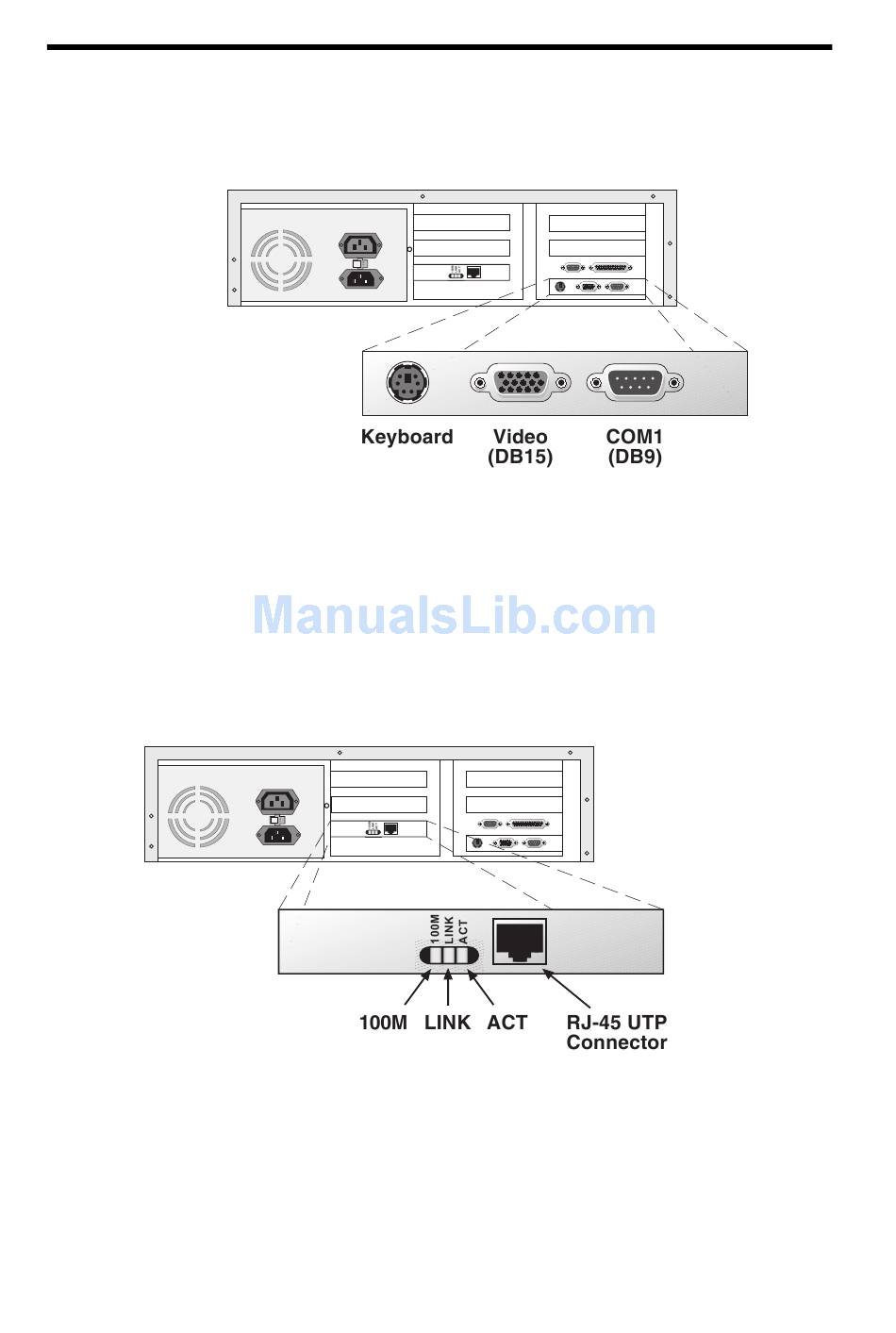

The SBC has three connectors, as illustrated in Fig. 2.

Fig. 2. SBC connectors

The 10/100Mb PCI EtherNet network interface card is located

as shown in Fig. 3. The NIC has a single RJ-45 UTP connector

and three LED indicators.

Fig. 3. Network interface card
