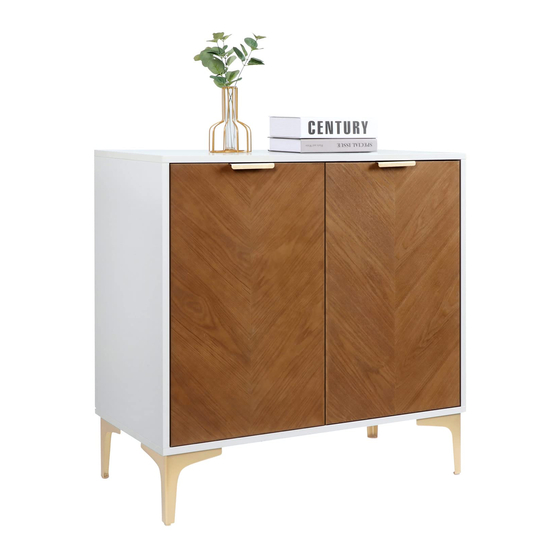

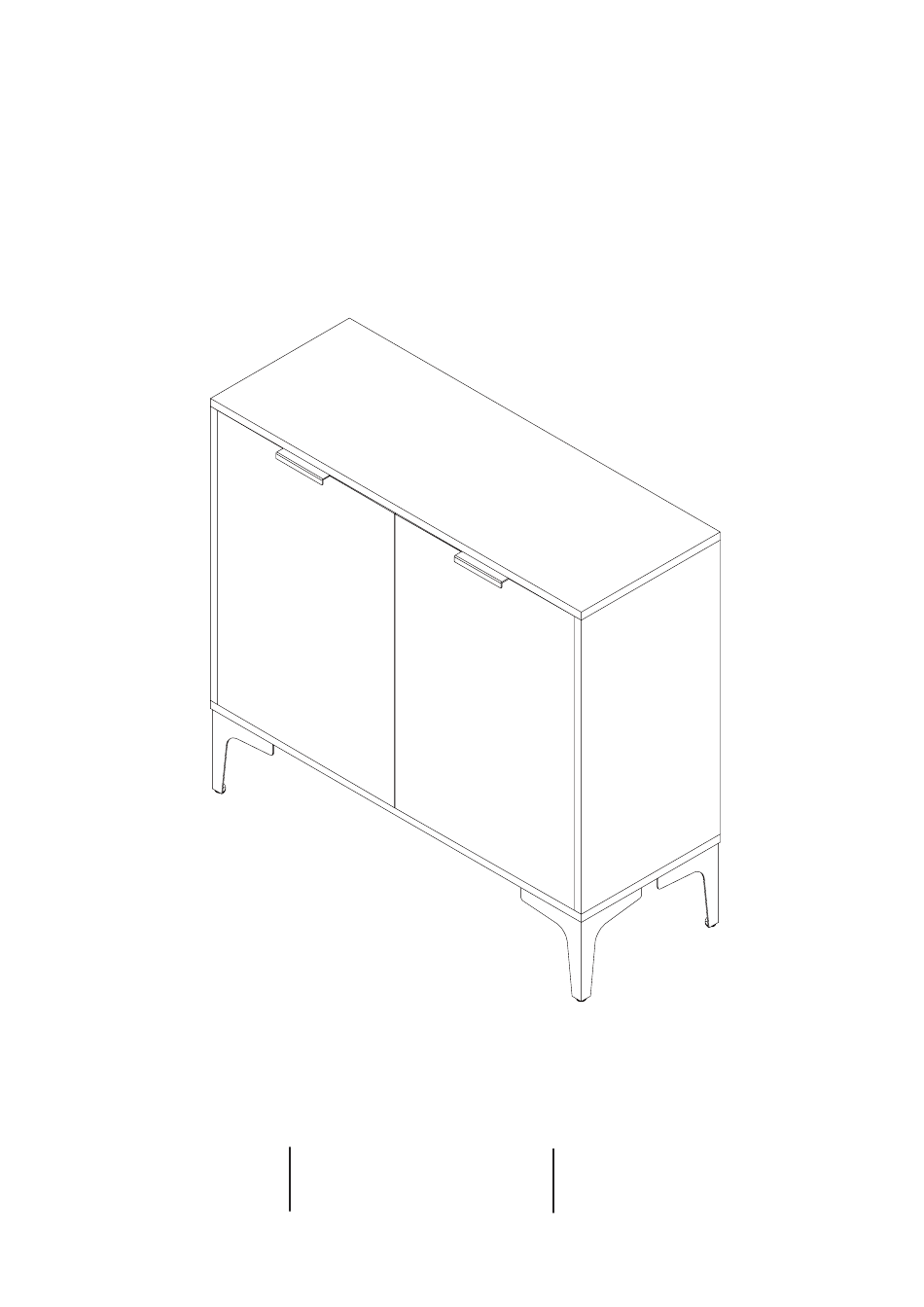

- Page 1 Item No. : H0036 Contact Us : service@anmytek.com Stockholm Two Doors Storage Cabinet ASSEMBLY AND CARE GUIDE 1 HOUR 2 PEOPLE 2 x 1 m ASSEMBLY TIME REQUIRED FOR ASSEMBLY FLOOR SPACE REQUIRED Contact Us : service@anmytek.com...
-
Page 2: Safety Precautions
Item No. : H0036 Contact Us : service@anmytek.com SAFETY PRECAUTIONS PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND USING THE PRODUCT. Please check that all parts are present beforeyou start the assembly of your furniture. A Philips head screwdriver (not included) is required for the assembled of this product. -
Page 3: Parts List
Item No. : H0036 Contact Us : service@anmytek.com PARTS LIST 3.5x35mm 3.5x12mm Ex16 3.5x12mm 3.5x10mm Lx24 3.5x35mm 3x10mm Contact Us : service@anmytek.com... -
Page 4: Assembly Diagram
Item No. : H0036 Contact Us : service@anmytek.com ASSEMBLY DIAGRAM ⑤ ③ ④ ⑨ ① ④ ⑦ ⑥ ② ⑧ AFTER SALES SUPPORT If you have any general enquiries or require spare parts for this product, please feel free to... - Page 5 Item No. : H0036 Contact Us : service@anmytek.com ASSEMBLY STEPS STEP 1. ⑧ ⑦ ⑤ Attach 1 x door handle (J) and 1 x part (G) to door panel (7) using 3 x screws (G). Attach 1 x door handle (J) and 1 x part (G) to door panel (8) using 3 x screws (G).
- Page 6 Item No. : H0036 Contact Us : service@anmytek.com ASSEMBLY STEPS STEP 3. ④ Slide back panel (4) into grooves as shown. STEP 4. ⑤ Attach top panel (5) to assembled unit using 4 x wooden dowels (C), 4 x cam bolts (A) and 4 x cam locks (B).
- Page 7 Item No. : H0036 Contact Us : service@anmytek.com ASSEMBLY STEPS STEP 5. ④ Turn the assembled unit upside down. Slide back panel (4) into grooves as shown. STEP 6. ⑥ Attach bottom panel (6) to assembled unit using 4 x wooden dowels (C) and 4 x screws (D).
- Page 8 Item No. : H0036 Contact Us : service@anmytek.com ASSEMBLY STEPS STEP 7. ⑨ Attach 4 x legs (F) to the bottom panel using 16 x screws (E) as shown. Tighten with a screwdriver. Contact Us : service@anmytek.com...
- Page 9 Item No. : H0036 Contact Us : service@anmytek.com ASSEMBLY STEPS STEP 8. Attach door panels to assembled unit using 4 x door hinges (H) and 24 x screws (L). Tighten with a screwdriver. STEP 9. ⑨ Insert 4 x shelf support pins (I) into holes on side panels. Slide shelf (9) into position.
- Page 10 Item No. : H0036 Contact Us : service@anmytek.com Is your cabinet door looking crooked or unevenly spaced? Then you’ve come to the right place. Follow the illustrations below to get your cabinet door aligned and ready for action. If your door is too low or too high...
-
Page 11: Assembly Steps
Item No. : H0036 Contact Us : service@anmytek.com ASSEMBLY STEPS Wall STEP 10. Attach 2 x safety straps (K) to the back of the cabinet as shown. Secure with 2 x screws (E). Fasten assembled cabinet to the wall using 2 x wall anchors (N), 2 x screws (M). - Page 12 Item No. : H0036 Contact Us : service@anmytek.com WALL FIXING GUIDE NOTE: Supplied wall plugs are only suitable for use in masonry walls. If you have any doubts about using the correct plug for your wall, please seek professional advice. Failure of the product due to using incorrect fixings is the responsibility of the installer.
