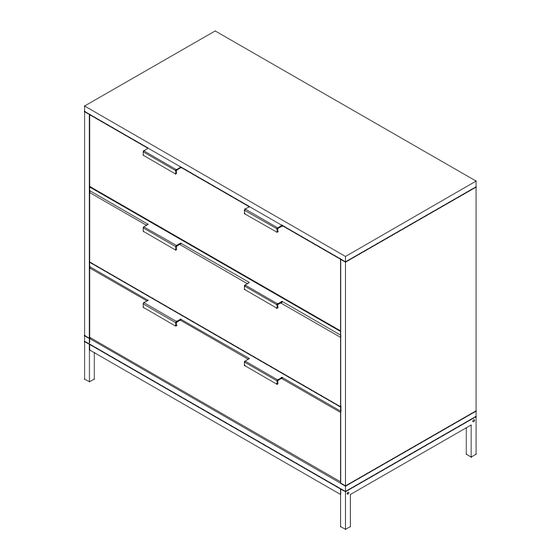

- Page 1 Contact us: service@anmytek.com Three Drawer Dresser Applicable Item NO.: H0037/H0073/H0074 PEOPLE 2 x 1 m 2 HOURS ASSEMBLY TIME REQUIRED FOR ASSEMBLY FLOOR SPACE REQUIRED 1/13...
-
Page 2: Safety Advice
Contact us: service@anmytek.com PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND USING THE PRODUCT. SAFETY ADVICE • Keep the product away from fire and inflammable objects. • Do not stand on the product or use the product as a stepladder. - Page 3 Contact us: service@anmytek.com Guarantee From Anmytek We offer 12-month warranty for all our products from the date of original purchase. Statement: The product is well-packed with strengthened box and protective foam. Each panel is separately wrapped with soft protective foam, while the hardware is included in a single box.
-
Page 4: Hardware List
Contact us: service@anmytek.com Hardware List 4x30mm Ax25 Bx27 Cx27 3x12mm 4x45mm Dx36 6x40mm Gx12 3x14mm 4x12mm 4x35mm 4x25mm Q(CL)x 3 Q(DR)x3 300mm 300mm 300mm Q(DL)x3 Q(CR)x3 300mm 4/13... -
Page 5: After Sales Support
Contact us: service@anmytek.com Product Diagram After-sales Support If there are any parts missing, damaged or defective, please feel free to contact us for support via the following email. Information required is listed on Page 3. Email: service@anmytek.com 5/13... - Page 6 Contact us: service@anmytek.com Step 1 C x 15 B x 15 Step 2 A x 15 6/13...
- Page 7 Contact us: service@anmytek.com Step 3 D x 12 E x 6 Step 4 Q(DL) x 3 Q(DR) x 3 D x 12 7/13...
- Page 8 Contact us: service@anmytek.com Step 5 C x 4 P x 2 8/13...
- Page 9 Contact us: service@anmytek.com Step 6 CLx 3 CRx 3 D x 12 C x 8 Step 7 B x 4 G x 2 9/13...
- Page 10 Contact us: service@anmytek.com Step 8 B x 4 G x 2 Step 9 B x 4 G x 4 O x 2 10/13...
- Page 11 Contact us: service@anmytek.com Step 10 F x 4 G x 4 Step 11 A x 10 H x 4 I x 1 11/13...
- Page 12 Contact us: service@anmytek.com Step 12 J x 8 K x 8 Kindly note: This is a very important step that can not be skipped. Please follow step12 to screw the plastic pieces into the corner of the back panel tightly. If you forget to fix these pieces, it may result in the instability of the whole item.
- Page 13 Contact us: service@anmytek.com WALL FIXING GUIDE NOTE: Supplied wall plugs are only suitable for use in masonry walls. If you have any doubts about using the correct plug for your wall, please seek professional advice. Failure of the product due to using incorrect fixings is the responsibility of the installer.
