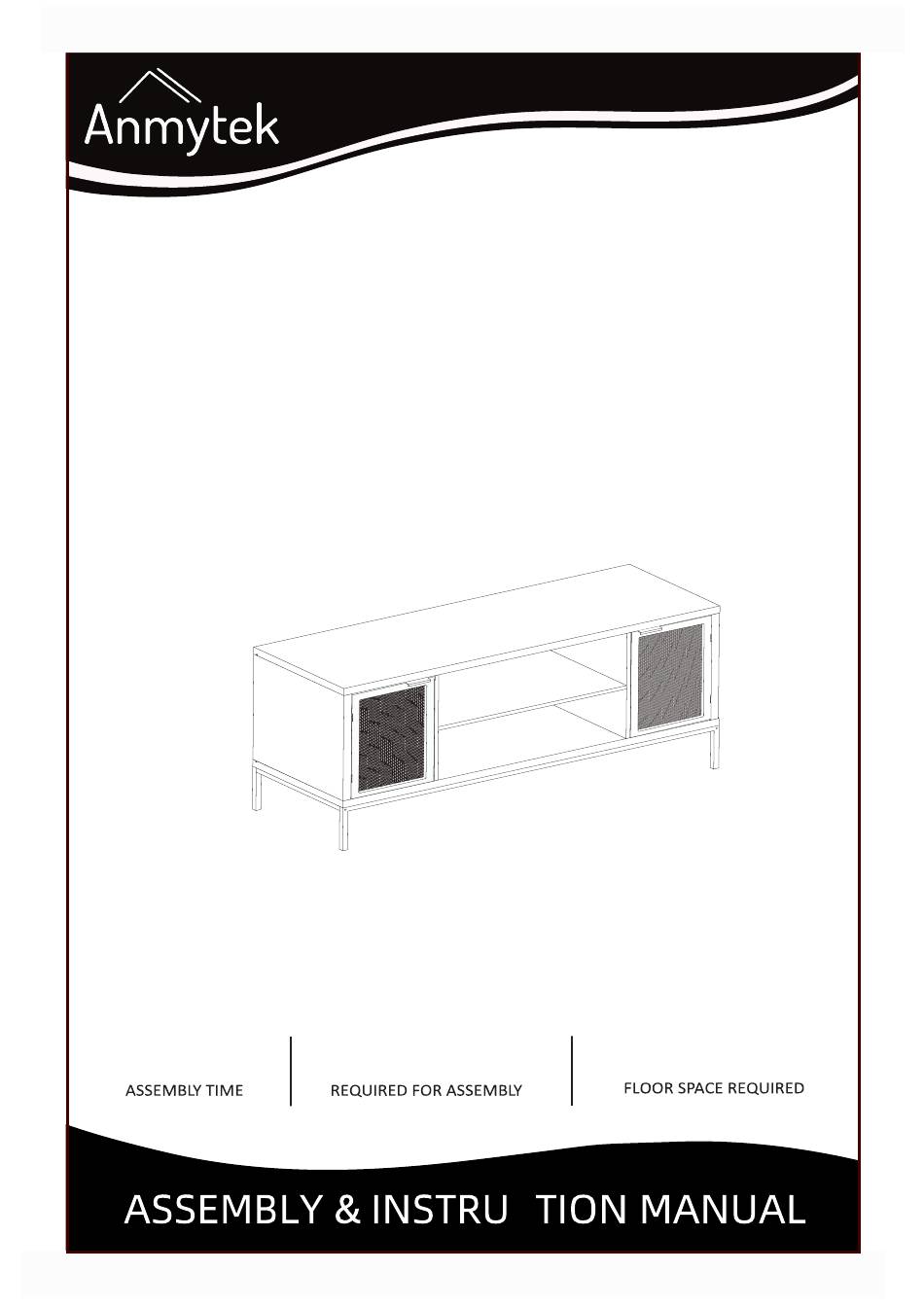

- Page 1 Contact Us: service@anmytek.com H0033 Seattle Media Console Cabinet or TV Stand 2 x 1 m 1 HOUR 2 PEOPLE...
-
Page 2: Safety Precautions
Item No.: H0033 Contact Us: service@anmytek.com SAFETY PRECAUTIONS PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND USING THE PRODUCT. Please check that all parts are present d c wd v c d d) p d c For ease and speed of assembly, we recommend that before you commence each step quired for that step. -
Page 3: Assembly Diagram
Item No.: H0033 Contact Us: service@anmytek.com ASSEMBLY DIAGRAM ⑥ ④ ⑦ ③ ① ⑫ ② ⑧ ⑤ ⑨ ⑩ ⑬ ⑩ ⑨ ⑪ ⑪ AFTER SALES SUPPORT If you have any general enquiries or require spare parts for this product, please : service@anmytek.com... - Page 4 Item No.: H0033 Contact Us: service@anmytek.com 3.5x10mm 24 pcs Screw 2 pcs Magnetic Door Catch 4 pcs Door Hinge Handle 2 pcs Metal Sheet 2 pcs Cam Bolt 12 pcs Wooden Dowel 20 pcs Screw 3.5x35mm 18 pcs 1 pcs...
-
Page 5: What You Need
For more help, you can send a message to our customer support email service@anmytek.com in any time. Ready? Ok, let’s get rolling! This should be very easy, just follow our simple instructions... - Page 6 Item No.: H0033 Contact Us: service@anmytek.com ASSEMBLY STEPS Step 1 Attach 2 x magnetic door catches (B) to panel (2) and panel (3) using 4 x screws (O) with a screwdriver. Step 2 Attach 2 x door hinges (C) to door panel (13) using 4 x screws (A). Attach 1 x metal sheet (E), 1 x handle (D) to panel (13) using 4 x screws (P) with a screwdriver.
- Page 7 Item No.: H0033 Contact Us: service@anmytek.com ASSEMBLY STEPS Step 3 Attach 2 x cam bolts (F) to panel (2) with a screwdriver. Repeat this step for panel (3). Step 4 Attach the middle shelf (1) to panel (2), (3) using 4 x wooden dowels (G), 4 x cam locks (L).
- Page 8 Item No.: H0033 Contact Us: service@anmytek.com ASSEMBLY STEPS Step 5 Attach 8 x cam bolts (F) to the top panel (6) using a screwdriver. Step 6 Attach the side panels (4, 5) and the assembled unit to the top panel (6) using 8 x wooden dowels (G) and 8 x cam locks (L) with a screwdriver.
- Page 9 Item No.: H0033 Contact Us: service@anmytek.com ASSEMBLY STEPS Step 7 ⑦ Put the upside down to slide the back side panel (7) into position. Step 8 ⑧ Attach the bottom panel (8) to assembled unit using 8 x wooden dowels (G), 8 x screws (K) with a screwdriver.
- Page 10 Item No.: H0033 Contact Us: service@anmytek.com ASSEMBLY STEPS Step 9 ⑨ ⑩ ⑩ ⑨ Attach 2 x metal frame parts (H), 2 x legs (10) to the bottom panel using 8 x screws (H) with a screwdriver. Step 10 Attach 2 x metal frame parts (11) to the bottom panel using 10 x screws (H), 8 x bolts (J). Tighten with an Allen Key (I) and a screwdriver.
-
Page 11: Assembly Steps
Item No.: H0033 Contact Us: service@anmytek.com ASSEMBLY STEPS Step 11 Fix 14 x plastic wedges (N) to the back side panel using 14 x screws (M) with a screwdriver. Step 12 ⑬ Attach the door panel (12, 13) to assembled unit using 6 x screws (A) with a screwdriver. - Page 12 Item No.: H0033 Contact Us: service@anmytek.com ASSEMBLY STEPS Step 13 Final assembly. Contact Us: service@anmytek.com...
