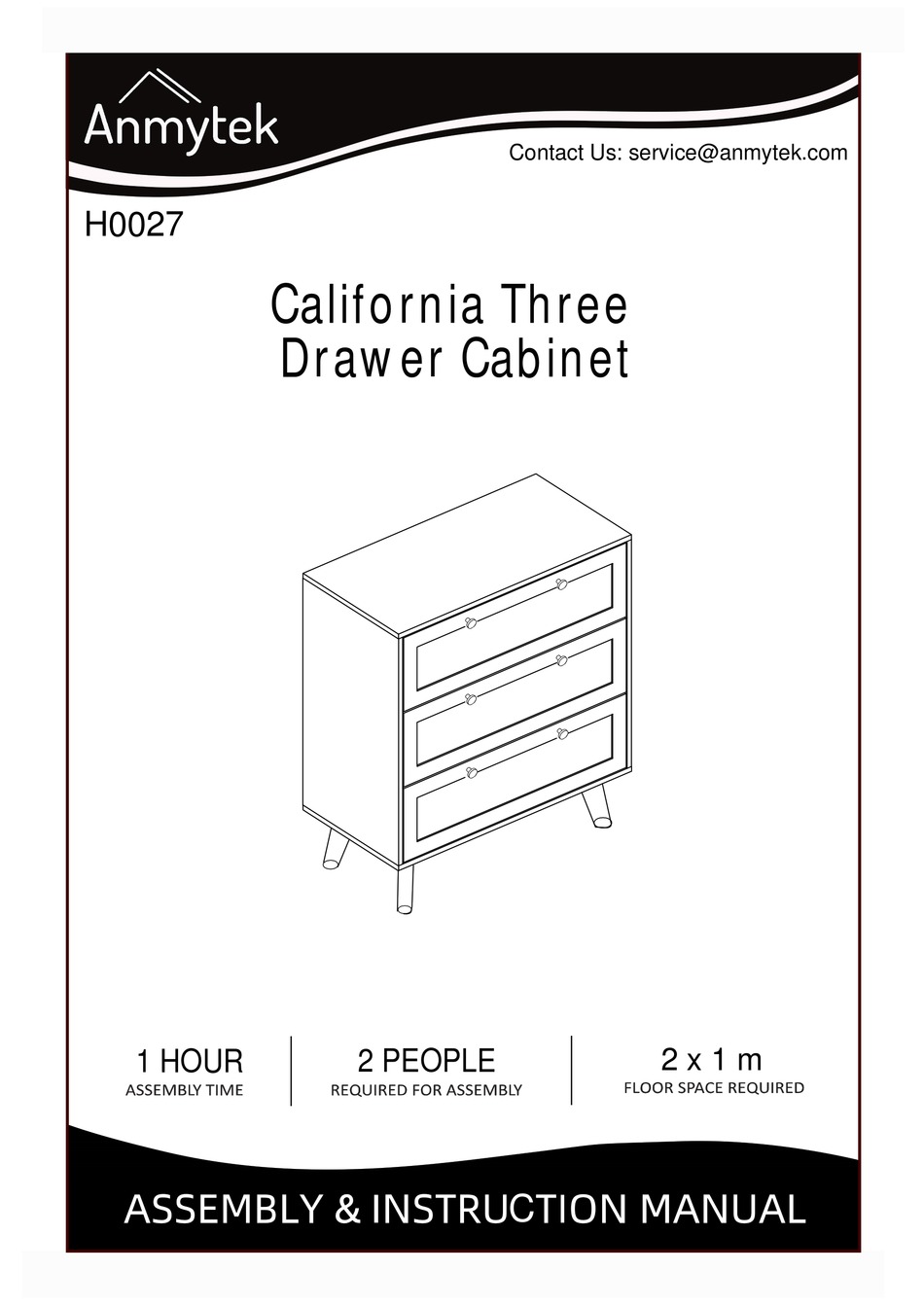

- Page 1 Contact Us: service@anmytek.com H0027 California Three Drawer Cabinet 它 它 它 它 它 它 2 x 1 m 1 HOUR 2 PEOPLE...
-
Page 2: Safety Precautions
Contact Us: service@anmytek.com Item No.: H0027 SAFETY PRECAUTIONS PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND USING THE PRODUCT. Please check that all parts are present before you start the assembly of your furniture. A Philips head screwdriver (not included) is required for the assembled of this product. -
Page 3: After Sales Support
Contact Us: service@anmytek.com Item No.: H0027 ASSEMBLED DIAGRAM × 3 AFTER SALES SUPPORT If you have any general enquiries or require spare parts for this product, please feel free to contact us via the following email: Email service@anmytek.com You can contact us for support at any time. We'll answer you in 24hrs. - Page 4 Contact Us: service@anmytek.com Item No.: H0027 4×35mm 15×12mm 6×30mm Φ Φ 15×12mm Φ Φ A×4 C× 27 B×21 D×27 6×14mm Φ 3×12mm Φ G×4 H×4 F×16 E×30 Φ 3×14mm K× 8 J× 2 L×10 I× 2 4×16mm Φ O× 6 M×...
-
Page 5: What You Need
For more help, you can send a message to our customer support email service@anmytek.com in any time. Ready? Ok, let’s get rolling! This should be very easy, just follow our simple instructions... -
Page 6: Assembly Steps
Contact Us: service@anmytek.com Item No.: H0027 ASSEMBLY STEPS STEP 1. 6 35 Attach 4 x cam bolts (D) to top panel (1) with a screwdriver. STEP 2. 6 35 Find out the correct drawer glides (M). Fix 3 x (M) on panel (2) using 9 x screws (E). - Page 7 Contact Us: service@anmytek.com Item No.: H0027 ASSEMBLY STEPS STEP 3. 6 35 Find out the correct drawer glides (N). Fix 3 x (N) on panel (3) using 9 x screws (E). Attach 4 x cam bolts (D) to panel (3) with a screwdriver.
- Page 8 Contact Us: service@anmytek.com Item No.: H0027 ASSEMBLY STEPS STEP 5. Slide back panel (4) to assembled unit as shown. STEP 6. 6 30 Attach the bottom panel (5) to assembled unit using 4 x wooden dowels (A), 4 x screws (B) with a screwdriver.
- Page 9 Contact Us: service@anmytek.com Item No.: H0027 ASSEMBLY STEPS STEP 7. 5 40 ×4 Fix 4 x metal sheets (G) to 4 x legs (6) using 8 x bolts (Q) with an Allen key (R). Attach 4 x foot pads (S) to legs.
- Page 10 Contact Us: service@anmytek.com Item No.: H0027 ASSEMBLY STEPS STEP 9. Slide back side panel (4) to assembled unit as shown. STEP 10. Attach the top panel (1) to assembled unit using 4 x cam locks (C) with a screwdriver. Contact Us: service@anmytek.com...
- Page 11 Contact Us: service@anmytek.com Item No.: H0027 ASSEMBLY STEPS STEP 11. ×4 ×4 Fix 8 x plastic wedges (K) to back side panels using 8 x screws (L) with a screwdriver. STEP 12. 6 35 ×3 Attach 5 x cam bolts (D) to panel (13) with a screwdriver.
- Page 12 Contact Us: service@anmytek.com Item No.: H0027 ASSEMBLY STEPS STEP 13. 4 35 × 3 Attach panel (14) to panel (11) using 1 x screws (B). Attach panel (11) to panel (9), (10) using 4 x screws (B) with a screwdriver.
- Page 13 Contact Us: service@anmytek.com Item No.: H0027 ASSEMBLY STEPS STEP 15. × 3 Attach 2 x handles (O) to panel (13) using 4 x screws (P) with a screwdriver. Attach panel (13) to assembled unit using 5 x cam locks (C) with a screwdriver.
- Page 14 Contact Us: service@anmytek.com Item No.: H0027 ASSEMBLY STEPS STEP 17. Attach 2 x safety straps (J) to assembled unit using 2 x washers (H), 2 x screws (L) with a screwdriver. STEP 18. 4 35 Fasten assembled furniture to wall using 2 x wall anchors (I), 2 x washers (H), 2 x screws (B) with a screwdriver.
- Page 15 Contact Us: service@anmytek.com Item No.: H0027 WALL FIXING GUIDE NOTE: Supplied wall plugs are only suitable for use in masonry walls. If you have any doubts about using the correct plug for your wall, please seek professional advice. Failure of the product due to using incorrect fixings is the responsibility of the installer.
