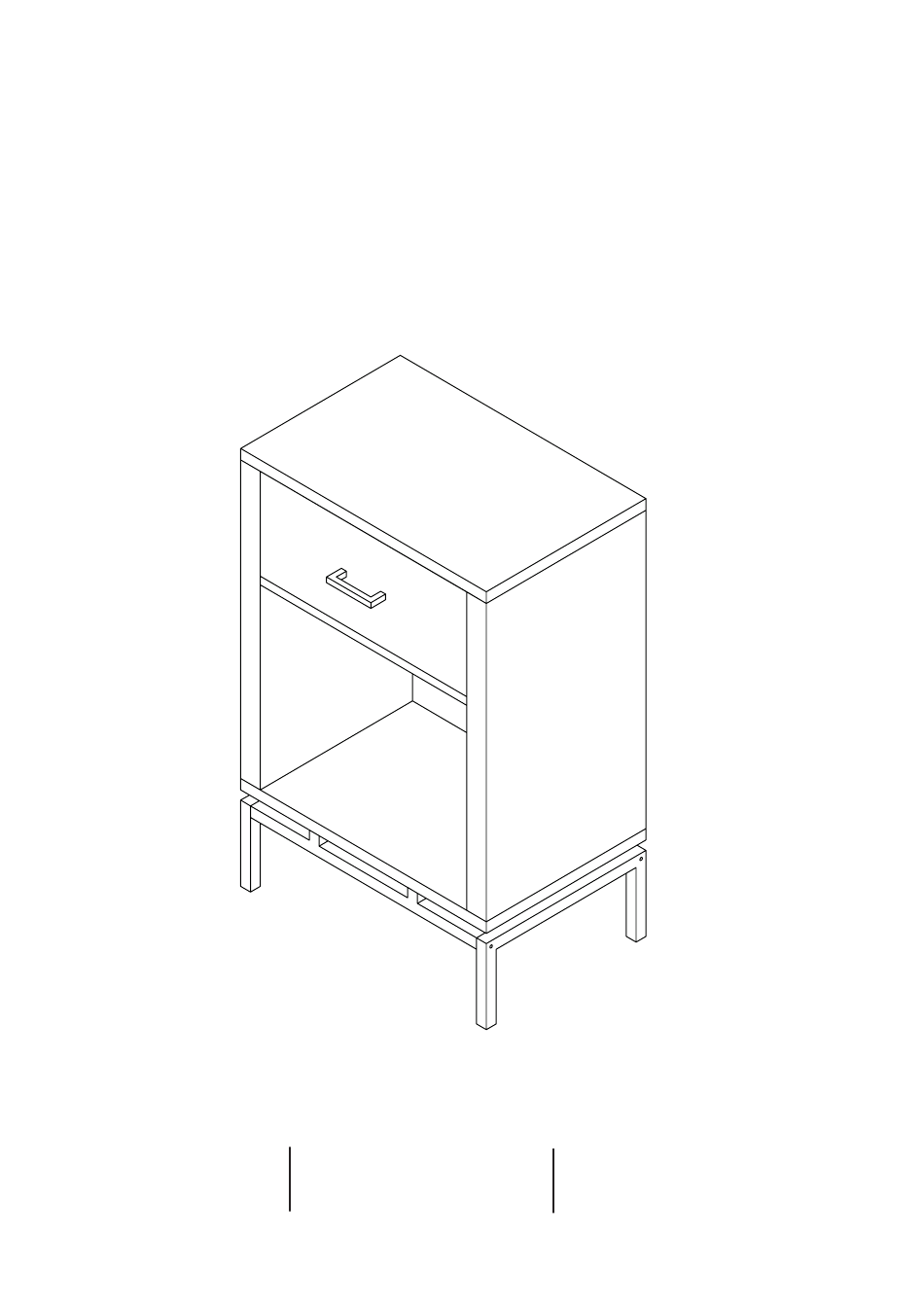

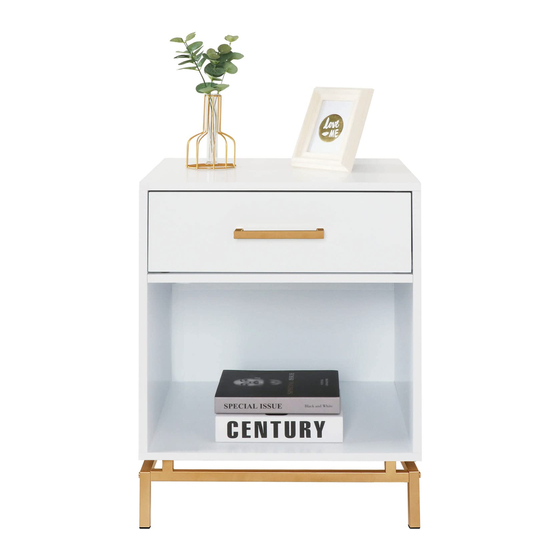

- Page 1 Item No.: H0051 Contact Us: service@anmytek.com M id Cent ury Float ing Side Table ASSEMBLY AND CARE GUIDE 2 PEOPLE 2 x 1 m 1 HOUR ASSEMBLY TIME REQUIRED FOR ASSEMBLY FLOOR SPACE REQUIRED Contact Us: service@anmytek.com...
-
Page 2: Safety Precautions
Item No.: H0051 Contact Us: service@anmytek.com SAFETY PRECAUTIONS PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND USING THE PRODUCT. Please check that all parts are present before you start the assembly of your furniture. A Philips head screwdriver (not included) is required for the assembled of thisproduct. -
Page 3: Assembly Diagram
Item No.: H0051 Contact Us: service@anmytek.com ASSEMBLY DIAGRAM ⑨ ⑩ ⑭ ⑩ ⑥ ⑧ ⑦ ⑪ ⑫ ⑬ ⑬ ⑫ ② ④ ⑤ ① ③ AFTER SALES SUPPORT feel free to If you have any general enquiries or require spare parts for this product, please contact us via the following email: Email: service@anmytek.com... - Page 4 Item No.: H0051 Contact Us: service@anmytek.com Ax14 Bx14 Cx10 3.5x35mm 3.5x45mm 3.5x12mm 6x35mm 6x25mm 3x12mm 3.5x10mm 3.5x35mm 6x20mm Contact Us: service@anmytek.com...
- Page 5 Item No.: H0051 Contact Us: service@anmytek.com ASSEMBLY STEPS STEP 1. ③ ④ ② ③ ② ⑤ Attach panels (2), (3) to panel (4) using 4 x screws (D) with a screwdriver. Slide panel (5) into position. STEP 2. ③ ②...
- Page 6 Item No.: H0051 Contact Us: service@anmytek.com ASSEMBLY STEPS STEP 3. ① Find out the correct drawer rails (F), (G). Fix (F) to the left side of drawer, (G) to the right side using 4 x screws (K). Don't mix up (F) and (G).
- Page 7 Item No.: H0051 Contact Us: service@anmytek.com ASSEMBLY STEPS STEP 5. ⑧ ⑥ ⑭ ⑦ Attach panels (8), (14) to panels (6), (7) using 2 x wooden dowels (C), 6 x cam bolts (A), 6 x cam locks (B) with a screwdriver.
- Page 8 Item No.: H0051 Contact Us: service@anmytek.com ASSEMBLY STEPS STEP 7. ⑩ ⑦ ⑥ Put the upside down and slide panel (10) into grooves. STEP 8. ⑪ ⑦ ⑥ Attach the bottom panel (11) to assembled unit using 4 x wooden dowels (C), 4 x screws (H) with a screwdriver.
- Page 9 Item No.: H0051 Contact Us: service@anmytek.com ASSEMBLY STEPS STEP 9. ⑬ ⑫ ⑫ ⑬ Fix 2 x metal parts (13) to 2 x metal legs (12) using 4 x bolts (L) with an Allen Key (N). Attach the assembled metal frame to the assembled unit using 4 x bolts (M).
-
Page 10: Assembly Steps
Item No.: H0051 Contact Us: service@anmytek.com ASSEMBLY STEPS STEP 11. Fix the wall strap (S) to the furniture using a screw (Q) with a screwdriver. Fasten the furniture to wall using a wall anchor (T) and a screw (R). STEP 12. - Page 11 Item No.: H0051 Contact Us: service@anmytek.com WALL FIXING GUIDE NOTE: Supplied wall plugs are only suitable for use in masonry walls. If you have any doubts about using the correct plug for your wall, please seek professional advice. Failure of the product due to using incorrect fixings is the responsibility of the installer.
