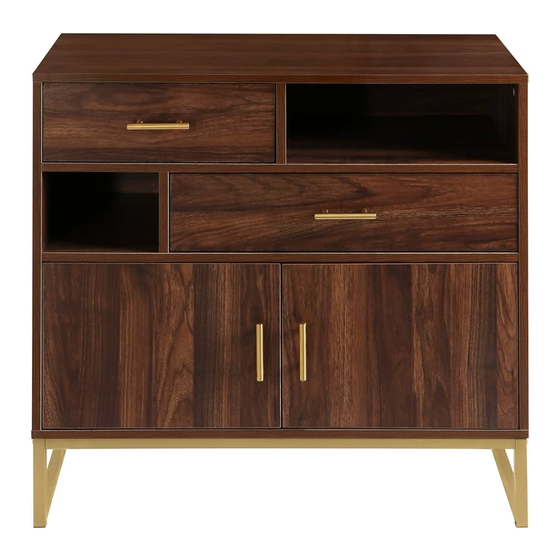

Anmytek Brooklyn H0038 Assembly And Care Manual

Storage cabinet with display shelves
Hide thumbs

Advertisement

Quick Links

Download this manual
Item No. : H0038
Contact Us : service@anmytek.com
Brooklyn St orage Cabinet
w it h Display Shelves
ASSEMBLY AND CARE GUIDE
1 HOUR
2 PEOPLE
2 x 1 m
ASSEMBLY TIME
REQUIRED FOR ASSEMBLY
FLOOR SPACE REQUIRED
1
Contact Us : service@anmytek.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Brooklyn H0038 and is the answer not in the manual?

Questions and answers

Related Manuals for Anmytek Brooklyn H0038

Summary of Contents for Anmytek Brooklyn H0038

  • Page 1 Item No. : H0038 Contact Us : service@anmytek.com Brooklyn St orage Cabinet w it h Display Shelves ASSEMBLY AND CARE GUIDE 1 HOUR 2 PEOPLE 2 x 1 m ASSEMBLY TIME REQUIRED FOR ASSEMBLY FLOOR SPACE REQUIRED Contact Us : service@anmytek.com...

  • Page 2: Safety Precautions

    Item No. : H0038 Contact Us : service@anmytek.com SAFETY PRECAUTIONS PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND USING THE PRODUCT. Please check that all parts are present beforeyou start the assembly of your furniture. A Philips head screwdriver (not included) is required for the assembled of this product.
  • Page 3 Item No. : H0038 Contact Us : service@anmytek.com A x 25 B x 25 C x 24 D x 24 Ø3x12mm H x 8 F x 10 G x 4 E x 9 Ø4x18mm Ø4x35mm Ø4x30mm L x 12 J x 4...

  • Page 4: Assembly Diagram

    Item No. : H0038 Contact Us : service@anmytek.com ASSEMBLY DIAGRAM AFTER SALES SUPPORT feel free to If you have any general enquiries or require spare parts for this product, please contact us via the following email: Email: service@anmytek.com You can contact us for support at any time. We'll answer you in 24hrs.

  • Page 5: Assembly Steps

    Item No. : H0038 Contact Us : service@anmytek.com ASSEMBLY STEPS STEP 1. Insert 6 x cam bolts (A) to panel (1) as shown. Insert 2 x cam bolts (A) to panel (2) as shown. Tighten with a screwdriver. STEP 2.
  • Page 6 Item No. : H0038 Contact Us : service@anmytek.com ASSEMBLY STEPS STEP 3. Find out the correct rails (I) and (J). Fix rail (I) to panel (8) and rail (J) to panel (6) using 6 x screws (D). Don't mix up (I) and (J).
  • Page 7 Item No. : H0038 Contact Us : service@anmytek.com ASSEMBLY STEPS STEP 5. 3 14 Attach panel (8) to panel (3) using 2 x wooden dowels (C) and 2 x screws (F). Attach 2 x magnetic door catch (P) to panel (3) using 4 x screws (L). Tighten with a screwdriver.
  • Page 8 Item No. : H0038 Contact Us : service@anmytek.com ASSEMBLY STEPS STEP 7. Attach panels (5), (6) to assembled unit using 8 x wooden dowels (C) and 8 x cam locks (B). Tighten with a screwdriver. STEP 8. Slide side back panel (10) into position a shown.
  • Page 9 Item No. : H0038 Contact Us : service@anmytek.com ASSEMBLY STEPS STEP 9. Attach top panel (1) to assembled unit using 6 x wooden dowels and 6 x cam locks. Tighten with a screwdriver. STEP 10. Slide side back panel (10) into position as shown.
  • Page 10 Item No. : H0038 Contact Us : service@anmytek.com ASSEMBLY STEPS STEP 11. Attach bottom panel (4) to assembled unit using 4 x wooden dowels (C) and 4 x screws (F). Tighten with a screwdriver. STEP 12. Attach 2 x back stretchers (11) to 2 x metal frames (13) using 4 x bolts (O). Tighten with a screwdriver.
  • Page 11 Item No. : H0038 Contact Us : service@anmytek.com ASSEMBLY STEPS STEP 13. Attach assembled metal frame to the main body of the cabinet using 6 x bolts (N). Tighten with a screwdriver. STEP 14. Attach back stretcher (12) to assembled unit as shown. Secure with 2 x bolts (O) and tighten with a screwdriver.
  • Page 12 Item No. : H0038 Contact Us : service@anmytek.com ASSEMBLY STEPS STEP 15. Attach 8 x braces (K) to the back of assembled unit as shown and secure with 8 x screws (L). Attach 2 x wall straps (L) to the back of assembled unit as shown and secure with 2 x screws (R) and 2 x washers (Q).
  • Page 13 Item No. : H0038 Contact Us : service@anmytek.com ASSEMBLY STEPS STEP 17. Attach door (9) to the left side of cabinet by clipping it into position as shown. STEP 18. Attach door (23) to the right side of cabinet by clipping it into position as shown.
  • Page 14 Item No. : H0038 Contact Us : service@anmytek.com ASSEMBLY STEPS STEP 19. Find out the correct rails (I) and (J). Don't fix up rail (I) and (J). Fix rail (I) to panel (15) using 2 x screws (D). Repeat this step.
  • Page 15 Item No. : H0038 Contact Us : service@anmytek.com ASSEMBLY STEPS STEP 21. Attach panel (17) to panel (15), (16) using 4 x screws (E). Attach panel (20) to panel (15), (16) using 4 x screws (E). Attach middle panel (22) to panel (20) using 1 x screw (E) as shown.
  • Page 16 Item No. : H0038 Contact Us : service@anmytek.com ASSEMBLY STEPS STEP 23. Attach drawer panel (14) to assembled unit using 4 x cam locks (B). Attach drawer panel (19) to assembled unit using 5 x cam locks (B). Tighten with a screwdriver.
  • Page 17 Item No. : H0038 Contact Us : service@anmytek.com ASSEMBLY STEPS STEP 25. Wall Fasten assembled cabinet to the wall using 2 x wall anchors (S), 2 x screws (F) and 2 x washers (Q). Ensure unit is balanced and steady before use.
  • Page 18 Item No. : H0038 Contact Us : service@anmytek.com WALL FIXING GUIDE NOTE: Supplied wall plugs are only suitable for use in masonry walls. If you have any doubts about using the correct plug for your wall, please seek professional advice. Failure of the product due to using incorrect fixings is the responsibility of the installer.
