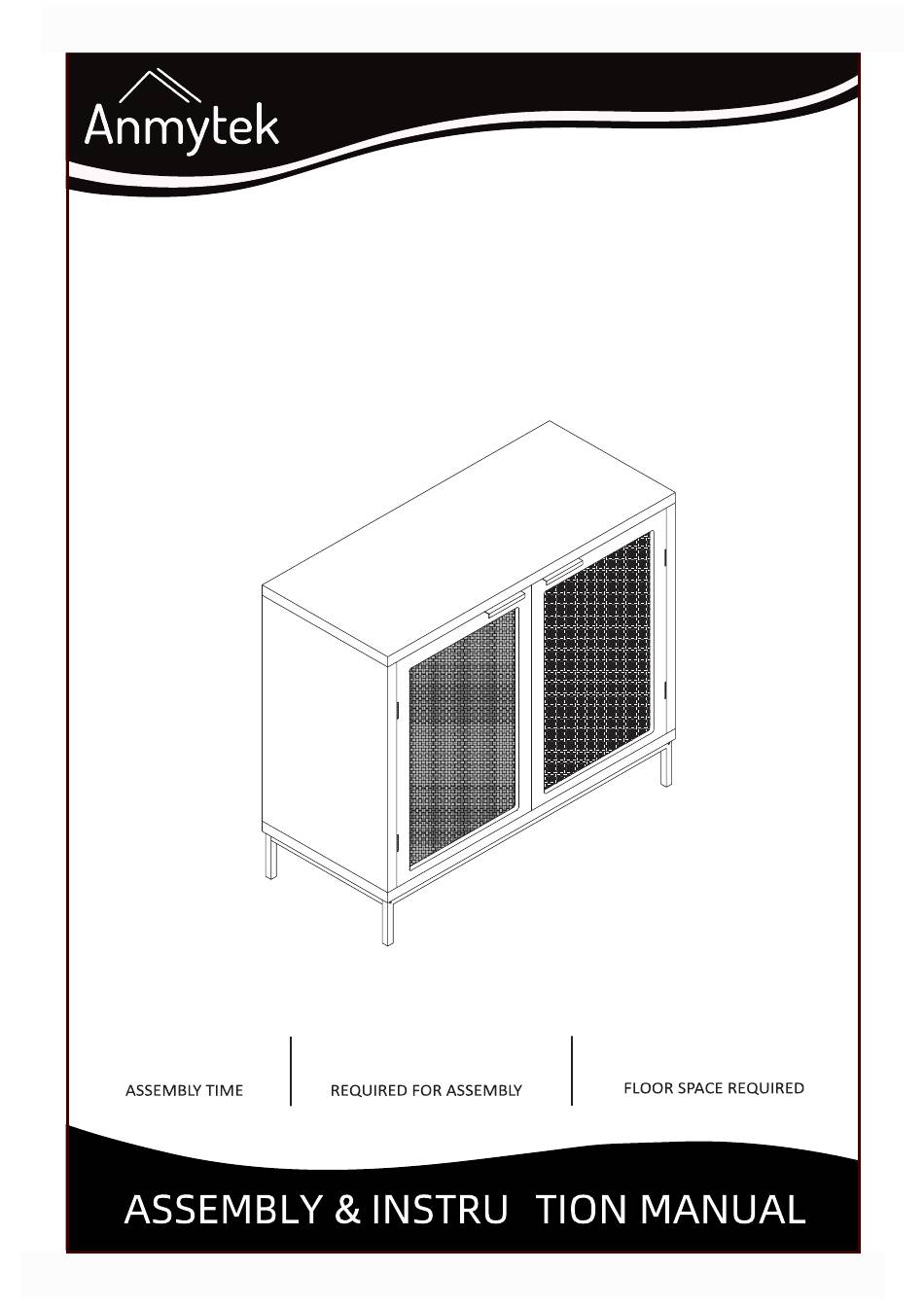

- Page 1 Contact Us: service@anmytek.com H0012/H0047 Two Doors Storage Cabinet with Rattan Texture 1 HOUR 1 x 1 m 2 PEOPLE...
-
Page 2: Safety Precautions
Contact Us : service@anmytek.com SAFETY PRECAUTIONS PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND USING THE PRODUCT. Please check that all parts are present , need Phillips head screwdriver (not included) before you start the assembly of your furniture. For ease and speed of assembly, we recommend that before you commence each step of the assembly, that you identify all the parts required for that step. -
Page 3: Hardware List
Contact Us : service@anmytek.com HARDWARE LIST 24 PCS 2 PCS 4 PCS 2 PCS 4 PCS 8 PCS 8 PCS 10 PCS 1 PC 4 PCS 4 PCS 12 PCS 8 PCS 8 PCS 2 PCS 2 PCS 2 PCS... - Page 4 For more help, you can send a message to our customer support email service@anmytek.com in any time. Ready? Ok, let’s get rolling! This should be very easy, just follow our simple instructions step by step and you will put it together in no time.
- Page 5 ASSEMBLY STEPS STEP 1. f x 4 Fix magnet plates (b) to parts 1 and 5 using screws (s), as shown. s x 4 b x 2 STEP 2. a x 12 Fix magnet plates (e) to parts 2 and 3 using screws (t), as shown.
- Page 6 ASSEMBLY STEPS STEP 3. Insert quickfit screws (f) and wooden dowels (l) to parts 4 and 6 and insert cam locks (g) to part 5, as shown. f x 4 g x 4 l x 4 STEP 4. Slide parts 7 into grooves of parts 4, 5 and 6, as shown.
-
Page 7: Assembly Steps
ASSEMBLY STEPS STEP 5. Fit wooden dowels (l) to parts 4 and 6. k x 4 Fix parts 4 and 6 to part 8 using screws (k), as shown. l x 4 STEP 6. Insert quickfit screws (f) and wooden dowels (l) to part 1 and insert cam locks (g) to parts 4 and 6, as shown. - Page 8 ASSEMBLY STEPS STEP 7. i x 1 Fix parts 9 to part 10 using Bolt (j), as shown. j x 4 STEP 8. Secure parts 10 and parts 9 assembled unit using screws (h), as shown. h x 10...
- Page 9 ASSEMBLY STEPS STEP 9. Fix doors 2 and 3 using screws (a), as shown. a x 12...
- Page 10 ASSEMBLY STEPS STEP 10. Secure back panels 7 using screws (m) and wedges (n), as shown. m x 8 Fix wall straps (p) to part 1 using screws (o), as shown. n x 8 o x 2 p x 2...
- Page 11 2 r x 2 WALL If unsure seek advice from a qualified trades person on fixtures to your specific wall. Your 2 door cabinet is ready for use. Please note: Maximum recommended weight is 10kg. Contact Us : service@anmytek.com...
- Page 12 For use with concrete block or brick walls, or walls For use with concrete or brick walls, or for use such as shelving and wall cabinets. with heavier loads such as TV & HiFi speakers and satellite dishes, etc. Contact Us : service@anmytek.com...
