Cypress Semiconductor CY3210-PSoCEVAL1 Quick Start Manual

1
Remove CY3210-PSoCEval1 Kit from
package.
3
Power the board; LED5 (red) lights up.
5
Vary the potentiometer and see the out-
put hex values on the LCD module.
Downloaded from Elcodis.com electronic components distributor

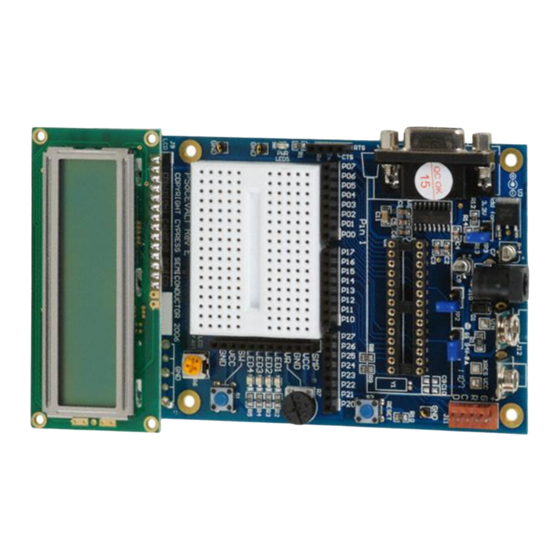

CY3210-PSoCEVAL1 EVALUATION KIT
QUICK START GUIDE
2
Plug the PSoC CY8C29466 chip into the
socket (U2).
4
Connect jumper at JP1 and JP2. Connect
jumper wire between P01 and VR.
6
Insert the PSoC Kit CD in the CD drive of your
PC. Install the kit contents, PSoC Designer,
and PSoC Programmer.
