Cypress Semiconductor CY4541 EZ-PD CCG4 Quick Start Manual

CY4541 EZ-PD

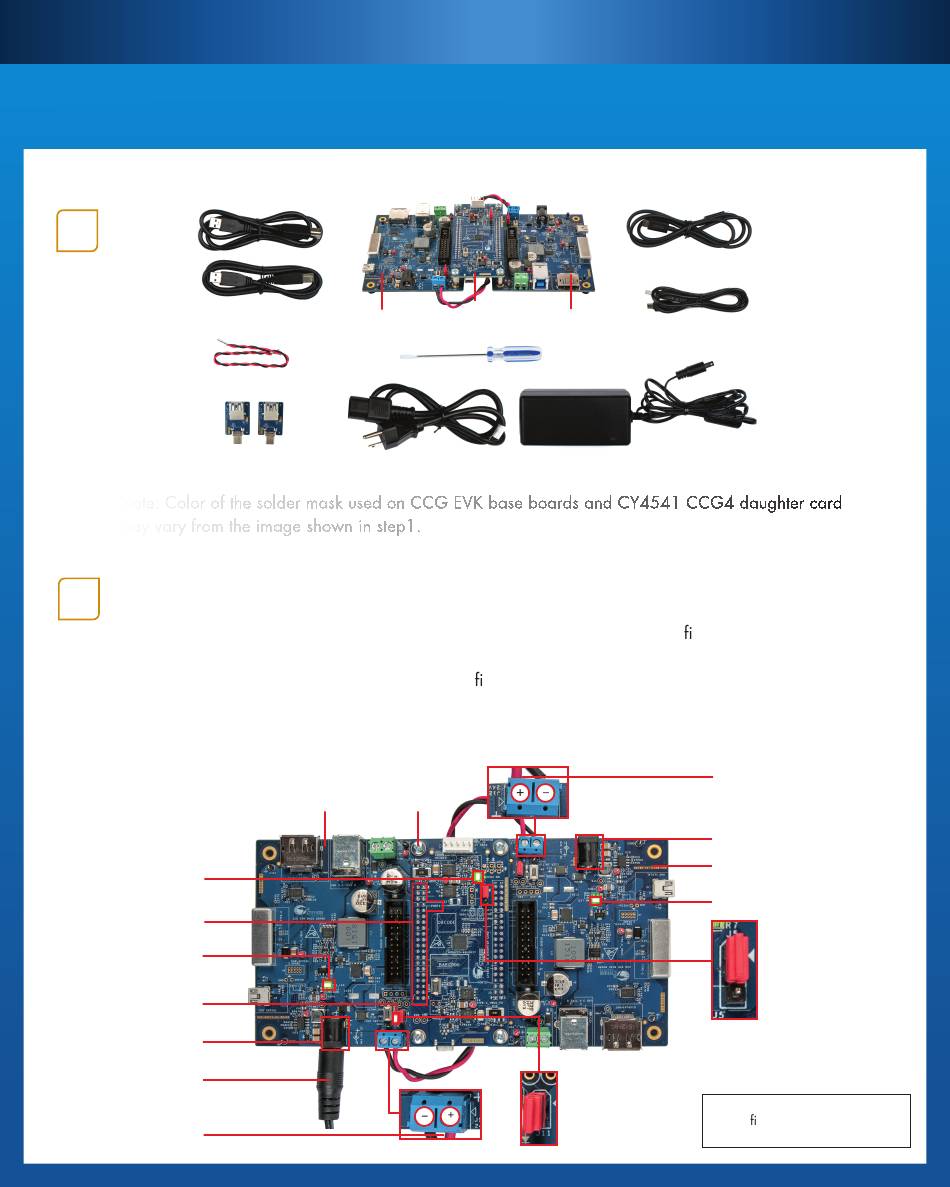

STEP Unpack the kit contents
1
USB 3.0 Type-A
to Type-B Cables
Jumper Wire
USB Type-C to
Type-A Adapters
Note: Color of the solder mask used on CCG EVK base boards and CY4541 CCG4 daughter card
may vary from the image shown in step1.
STEP
Verify that the user LED jumper (J11) is populated on CCG EVK base board 1 (connected to Port 1of
CCG4 daughter card) and that the voltage selection jumper (J5) on the CCG4 daughter card is set to
2
3.3 V (position 1-2). Ensure that the wires are connected with correct polarity between the power
provider header (J12) of both the CCG EVK base boards as shown in the gure in step2. Connect the
DC power adapter (provided with the kit) to the DC power jack (J1) of either of the CCG EVK base
boards.Verify that the setup is as shown in the gure in step2. Plug the other end of the DC power
adapter to the AC power socket. LED1 (Green) on the CCG4 daughter card and on both the CCG EVK
base boards glow to indicate that the kit is powered. In addition, the LED2 (Orange) on the CCG EVK
base board 1 blinks continuously to indicate that CCG4 is powered and active.
LED1
(on CCG4
Daughter Card)
Port 1
LED1 (on CCG
EVK Base Board 1)
LED2 (on CCG
EVK Base Board 1)
J1
DC Power Adapter
Connected to CCG
EVK Base Board 1
Red color wire to the
+ve terminal
QUICK START GUIDE
CCG EVK CY4541 CCG4
Base Board Daughter Card
Screwdriver
24V DC Power Adapter
CCG CY4541 CCG4
EVK Base Board 1 Daughter Card
J12
CCG4 EVK
TM
USB 3.0 EMCA Type-C Cable
CCG EVK
USB 2.0 Type-A
Base Board
to Mini-B Cable
J12
J11
Red color wire to the
+ve terminal
J1
CCG EVK Base Board 2
LED1(on CCG EVK Base Board 2)
J5
Note: Ensure that CCG4 daughter
card is rmly connected to the
CCG EVK base boards.
