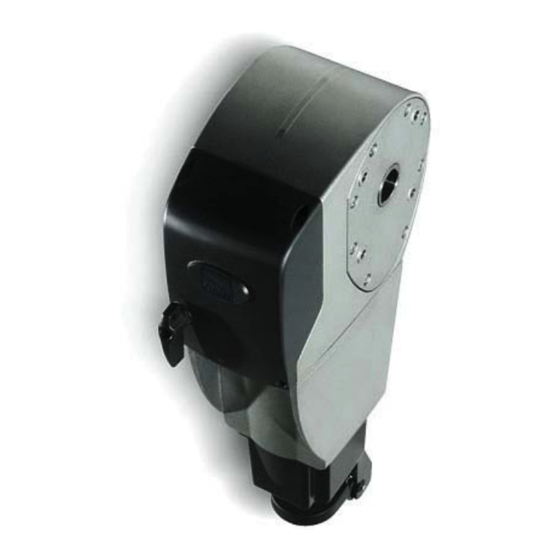

- Page 1 INDUSTRIAL FA01734-EN DOOR OPERATOR C-BX_C-BXK_CBXE_CBXEK C-BXT_C-BXET_C-BXE24 EN English INSTALLATION MANUAL...
- Page 2 Directive (2006/42/EC) and with the reference harmonised technical standards are specifi ed in the general CAME product catalogue or on the website www.came.com. • Make sure the mains power supply is disconnected during all installation procedures. • Check that the temperature ranges given are suitable for the installation site. • Do not install the operator on surfaces that could yield and bend.
-
Page 3: Legend Of Symbols
For large, sliding or folding doors • Door width of up to 5.5 m for the C-BXE / C-BXE24 / C-BXET / C-BXEK • Door width of up to 11 m for C-BX / C-BXT / C-BXK • Door weight max 1,000 kg * Speed is variable depending on the barrel diameter. - Page 4 001 C009 – Bracket for large sectional doors (specifi c for direct coupling applications with Ø 1 spring loaded shafts”); 001 C011 - Chain transmission mechanism for off -axis applications with a transmission ratio of 1:1 Make sure that the command and safety equipment and accessories are CAME originals; this ensures easy installation and system’s maintenance.
-
Page 5: Technical Information
150 °C Weight kg 11.3 11.8 13.3 13.9 11.2 11.3 11.2 Working temperature -20 / +55 °C Operator insulation Class I * Values depending on control panel in use Overall dimensions C-BX / C-BXE C-BXK / C-BXEK C-BXT / C-BXET C-BXE24... -
Page 6: Description Of Parts
Description of parts GEARMOTOR ASSEMBLY ① Motoriduttore ① ② Maniglia di sblocco ③ Calotta inferiore ④ ④ Coperchio di protezione ② ③ ACCESSORIES ① 821XC-0150 - Winch ② C002 – Pendulum release system ③ C003 - Chain tension reset system and brackets for large sliding doors ④... -
Page 7: Installazione
INSTALLAZIONE The installation must be done by qualified, expert personnel and in compliance with the current laws. Initial checks Before installing the automation you must: • make sure the gearmotor will be fixed where the it is protected from impact, and that the anchoring surface is solid and that the gearmotor is fixed using suitable means (i.e. - Page 8 Cable type and minimum thicknesses Cable length Cable length Cable length Connection 1 < 10 m 10 < 20 m 20 < 30 m 4G x 1,5 mm 4G x 1.5 mm 4G x 2.5 mm Power 230/400V AC 3G x 1,5 mm 3G x 1.5 mm 3G x 2.5 mm Power 230V AC...
- Page 9 The following applications are only examples, in that the space needed for fixing the gearmotor and accessories varies depending on the overall dimensions and so it is up to the installer to choose the most suitable solution. DIRECT COUPLING The CBX gearmotor is made to be vertically inserted and directly coupled onto the 1 inch (25.4 mm) spring shaft. It can also be installed horizontally.
- Page 10 3) With “C009” accessory: 3) With “C006” accessory: Insert tab A or B depending on the shaft type (see fi g A) between the Insert tab A or B depending on the shaft type (see fi g A) between two cavities. the two cavities.
- Page 11 CHAIN TRANSMISSION When installing on large sectional doors that are taller than 5 m., the (Art. C005) accessory must be used. For doors where the gearmotor cannot be assembled in alignment with the door springs, use the C-011 accessory. C-005 C-011 ...
- Page 12 4) Join the ends of the chain using the joint and lay it onto the cog wheel, leaving it hanging. 5) Anchor the gearmotor’s pinion shaft to the hanging chain. 6) Manually release the gearmotor by turning the rod clockwise. 7) Secure the gearmotor’s elbow bracket, making sure that the two cog wheels are perpendicularly in line.
- Page 13 Installing the operator on large and regular, sliding doors LARGE, ONE OR TWO-LEAFED DOORS When installing on large one or two-leafed doors, you must use the C003 accessory (reset system for sliding doors). C003 CGIU For the following gearmotors only: CBXE, CBXEK, C-BXET and C-BXE24, before securing the chain to the motor, move the door halfway along its run.
- Page 14 5) Place the ½ inch (CCT) chain between the gearmotor and the reset. The length of the chain must be equal to twice distance A. 6) Join the two ends of the chain using the (CGIU) joint). 7) Adjust the chain tension using the reset screw and then lock the nuts. 8) First secure the brackets and the plates to the chain, and then to the door leaves.
- Page 15 LARGE FOLDING DOORS When installing large folding doors with anti derailment-fl aps, you must use the C004 accessory (reset system for large, folding doors). CGIU For the following gearmotors only: CBXE, CBXEK, C-BXET and C-BXE24, before securing the chain to the motor, move the door halfway along its run.
- Page 16 5) Place the ½ inch (CCT) chain between the gearmotor and the reset. The length of the chain ust be equal to twice distance A. 6)Join the two ends of the chain using the (CGIU) joint). 7) Adjust the chain tension using the reset screw and then lock the nuts. 8) Secure the chain to the pin of the fi...
- Page 17 For the electrical connection, use proper cable sheaths and glands so as to guarantee the stated protection rating. To set the encoder, check the technical literature for the control panel. 2402c 22AWG Screened cable CONTROL PANEL GEARMOTOR ZCX10 / ZCX10C C-BXE / C-BXEK CAME 2402c 22AWG Screened cable T° CONTROL PANEL GEARMOTOR ZT5 / ZT5C C-BXET...
- Page 18 For the electrical connection, use proper cable sheaths and glands so as to guarantee the stated protection rating. To set the encoder, check the technical literature for the control panel. Condenser CONTROL PANEL GEARMOTOR ZC3 / ZC3C C-BX / C-BXK CAME T° FC FA CONTROL PANEL GEARMOTOR...
- Page 19 Direct electrical connection via inter-blocked buttons only for the C-BX / C-BXK gearmotor Condenser CLOSE BUTTON OPEN BUTTON POWER Adjusting the endstops (only for models with mechanical endstops) Make sure the door is closed and that the two cog wheels of the gearmotor assembly are both positioned on the left.
- Page 20 Fully close the door and make sure that the release rod is free of the safety lever. the safety lever lets you activate the (CMS or C002) emergency release only when the door is closed. Release rod Safety lever For large, sectional doors, after making the adjustments, there may be an empty space between the lower part of the door and the ground.
-
Page 21: Mounting The Cover
Raise the endpoint spring, detach it from the support bracket and lower i tonto the cog wheel. Do not detach the endpoint spring from the support bracket, if the gearmotor is installed on to large, sliding or folding doors. Support bracket Endpoint spring Make sure the release rod is free of the safety lever. -
Page 22: Emergency Release
Manual activation device The optional, manual winch for large sectional doors is a device to open and close the door using a ball bearing chain. It can function both in the horizontal and vertical automation modes. 801XC-0150 Emergency release Optional, gearmotor-release devices may be used (only when door is closed) using a customised (CMS) key or a (C002) hanging reset- chord handle. -
Page 23: Troubleshooting
Troubleshooting PROBLEMS POSSIBLE CAUSES CHECKS AND REMEDIES There is no power supply Check the power supply The gearmotor is released Call the assistance service The operator The transmitter’s battery is run down Replace the batteries neither opens nor The transmitter is broken Call the assistance service closes The stop button is stuck or broken... -
Page 24: Reference Regulations
