- Page 1 AUTOMATION FOR INDUSTRIAL AND RESIDENTIAL ENTRANCES INSTALLATION MANUAL...

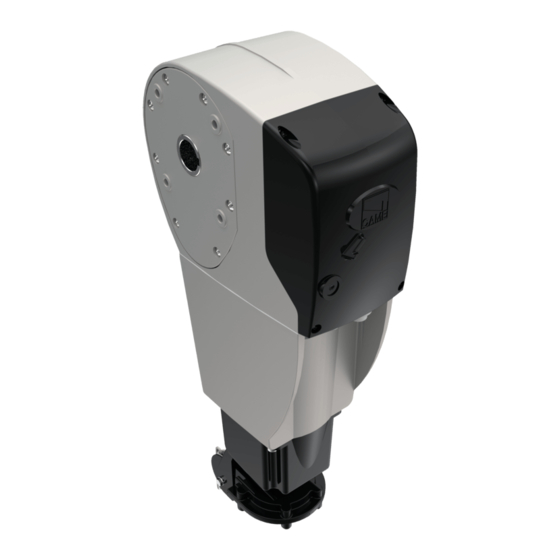

- Page 2 ABS plastic that houses the terminals for the electrical wiring. The CBX series has several versions depending on the type of use - residential, condominium or industrial - with mechanical end stop or with an encoder system (see para. 2.3 Fields of use).
- Page 3 001 C007/8 - Adapter for sectional doors con Ø 25 mm post (C007) or Ø 40 mm post (C008); Important! Make sure that the control and safety equipment and accessories are CAME original. Only CAME products are gua- ranteed to make the system easy to use and maintain.
-
Page 4: Installation
4.3 Technical information C-BX / C-BXE GEARMOTOR C-BXE24 GEARMOTOR C-BXT / C-BXET GEARMOTOR Power supply panel: 230V A.C. 50/60Hz Power supply panel: 230V A.C. 50/60Hz Power supply panel: 230-400V A.C. - 50/60Hz Motor power supply: 230V A.C. 50/60Hz Motor power supply: 24V D.C. Motor power supply: 230-400V A.C.-50/60Hz Absorption*: 3A Absorption*: 9A max. -
Page 5: Tools And Materials
5.2 Tools and materials Make sure all tools and materials necessary are within reach to install the edge in maximum safety, according to regulations in force. The following figure illustrates the minimum equipment for the installer. 5.3 Cable list and minimun thickness Connections Type of cable Length of cable 1 <... - Page 6 5.4 Installing the automation on sectional doors The following applications are only examples, as the space for installing the ratiomotor and accessories varies accord- ing to obstructions. It is thus up to the system installer to select the most suitable solution. DIRECT TRANSMISSION - The Fig.1 CBX ratiomotor is supplied...
- Page 7 3) Manually release the ratiomotor by turning the rod clockwise and move the door to make the pole cavity coincide with that of the ratiomotor’s cable shaft. Fig.3 SOLID SHAFT HOLLOW SHAFT 4) Insert tongue A or B depending on the type of shaft (see fi...
- Page 8 CHAIN TRANSMISSION - Installations on sectional C005 doors higher than 5.5 m, for this type of application you must use the accessory (Art. C005). 1) Before securing the ratiomotor, open the protection cover to facilitate post-assembly operations. Fig.1 2) Insert tongue A or B (see fi g.1) into the cavity SOLID SHAFT of the sprung pole, then insert toothed crown Z40 onto the pole opposite the tongue and secure it...
- Page 9 5) Unite the two ends of the chain with the coupling and insert it onto the toothed crown Z40 leaving it hanging. 6) Anchor the ratiomotor’s shaft pinion to the hanging chain. 7) Release the ratiomotor by hand by turning the rod clockwise. 8) Then secure the ratiomotor’s fi...
- Page 10 5.5 Installing the automation on sliding doors DOORS WITH ONE OR TWO WINGS - For C003 CGIU installations with sliding gates/doors having one or two wings, you must use the acces- sory C003 (transmission system for sliding gates). 1) Before securing the ratiomotor, open the protection cover to facilitate post-assembly operations.
- Page 11 5) Secure the chain-tensioning transmission from the opposite side of the ratiomotor, in line with the pinion. 6) Insert the ½ inch chain (CCT) with a length of twice distance A. 7) Unite the two ends with a coupling (CGIU). 8) Adjust the chain’s tension with the transmission’s screw and then tighten the nuts.
- Page 12 C004 CGIU FOLDING DOORS - For installations with doors having more than one wing, you must use ac- cessory C004 (transmission system for folding doors). 1) Before securing the ratiomotor, open the protection cover to facilitate post-assembly operations. 2) Assemble the two fi xing brackets and secure them to the ratiomotor. 3) Insert the tongue into the cavity of the toothed pinion’s shaft Z26, insert the pinion into the motor cable shaft and secure it with a screw (UNI 5933 M6x16) and washer from the opposite side.
- Page 13 5) Secure the chain-tensioning transmission from the opposite side of the ratiomotor in line with the pinion. 6) Insert the ½ inch chain (CCT) with a length of twice distance A. 7) Unite the two ends with a coupling (CGIU). 8) Adjust the chain’s tension with the transmission’s screw and then tighten the nuts.
- Page 14 5.6 Wiring gearmotors with an encoder system to the command board For the wiring, use appropriate sheaths and cable clamps to ensure the right degree of protection. To regulate the encoder, make reference to the technical manual of the command board. Shielded cable 2402C 22AWG CONTROL PANEL GEARMOTOR...
- Page 15 5.7 Wiring gearmotors with mechanical end-stops to the command board For the wiring, use appropriate sheaths and cable clamps to ensure the right degree of protection. Condenser CONTROL PANEL GEARMOTOR ZC3 / ZC3C C-BX Additional terminal not included CONTROL PANEL Note: connect the wires of the motor protection fuse in GEARMOTOR a series with the wire connected to the “COM”...
- Page 16 5.9 Adjusting mechanical end-stops Microswitch of end-stop in closing Make sure the door is in a closed position and the two crown wheels of the motor units are both positioned to the left. N.B.: the gearmotor is already adjusted in a closed position, namely, the closing end-stop micro-switch is activated.
- Page 17 Important! For gearmotors installed on sliding and folding doors, remove the security lever and respective spring. Safety lever 5.10 Adjusting end-stops with encoder Before beginning to make adjustments on the end-stop, execute the run calibra- tion procedure described in the technical manual of the command board.
-
Page 18: Emergency Release
5.11 Assembly cover 1) After completing assembly and electrical connections, make a hole with a Ø 13 mm bit in the cover in the point indicated. 2) Anchor the cover with the four screws provided. 3) Insert the release handle into the hole and fasten it with the washer and the screw. -
Page 19: Maintenance
UNI EN ISO 14001 standard to ensure environmental protection. Please continue our efforts to protect the environment—which CAME considers one of the cardinal elements in the development of its operational and market strategies—simply by observing brief recommendations as regards disposal: DISPOSAL OF PACKAGING –... - Page 20 CAME UNITED KINGDOM LTD UNIT 3, ORCHARD BUSINESS PARK TOWN STREET, SANDIACRE NOTTINGHAM - NG10 5BP - U.K. Tel 0044 115 9210430 Fax 0044 115 9210431...
