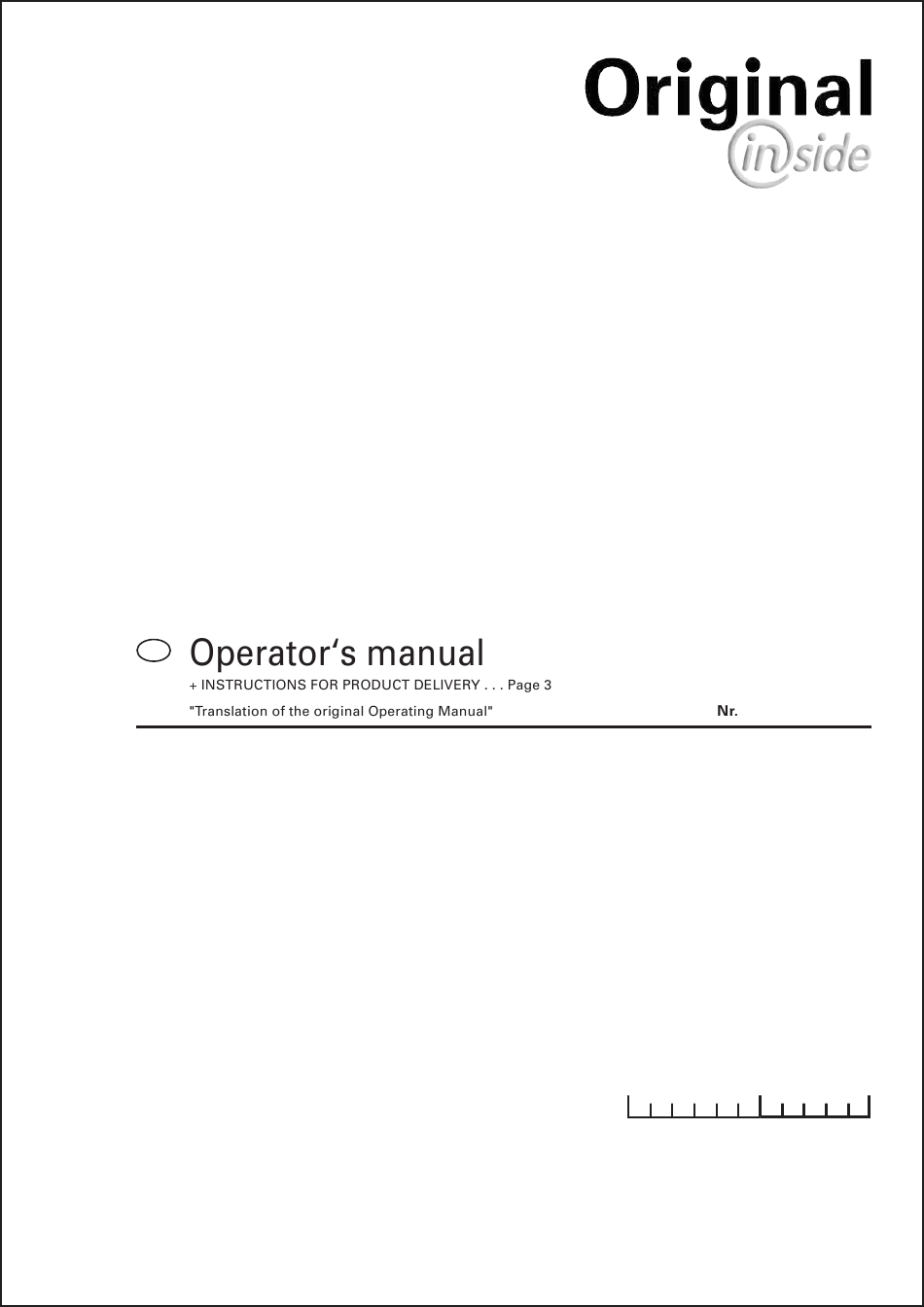

- Page 1 99 299.GB.80I.0 TOP 460 N (Type SK 299 : + . . 01001) EUROTOP 460 N Type SK 299 : + . . 01491) EUROTOP 461 N Type SK 299 : + . . 01651) Rotary swather Ihre / Your / Votre • Masch.Nr. • Fgst.Ident.Nr.
- Page 2 Dear Farmer You have just made an excellent choice. Naturally we are very happy and wish to congratulate you for having chosen Pöttinger. As your agricultural partner, we offer you quality and efficiency combined with reliable servicing. In order to assess the spare-parts demand for our agricultural machines and to take these demands into consideration when developing new machines, we would ask you to provide us with some details.
- Page 3 In order to prove that the machine and the operating manual have been properly delivered, a confirmation is necessary. For this purpose please do the following: - sign the document A and send it to the company Pöttinger or via the internet to www.poettinger.at - document B stays with the specialist factory delivering the machine.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Observe TABLE OF CONTENTS Safety Meaning of warning signs ..........4 Hints in the CE sign ................4 supplement! Hitching of machines with three point linkage ....5 Locking the headstock during use on roads and when lowering: .................5 Lowering the machine .............5 Conversion to transport position ........6 - Bj. -
Page 5: Hitching Of Machines With Three Point Linkage
HITCHING Hitching of machines with three point Safety linkage hints: see supplement-A1 points 8a. - 8h.) - Pinning the machine to the three point linkage. - Fix the hydraulic lower link (4) in such a way that the machine cannot swing out sideways. Push in the support foot (5) and secure. -
Page 6: Conversion To Transport Position
TRANSPORT AND WORKING POSITION Conversion to transport position Caution! - Pin the bolts on the slewing headstock (SB) into position Do not enter rotor Important! area while driving motor is running. Only reposition bolts when the machine is in the raised position. -
Page 7: Driving On Public Roads
TRANSPORT AND WORKING POSITION Driving on public roads • Observe the official regulations of your country. • Travelling on open roads may only be carried out as described in chapter "Transport position". • In addition to the instructions in this operating manual the legislature's general safety and accident prevention regulations have to be observed. -
Page 8: General Guidelines For Working With The Machine
General guidelines for working with the Operating on slopes Safety machine hints: Take note! see supplement- If the implement is being raised by the A1 points 1.) 3.) lifting gear whilst travelling in a curve, the All work in the immediate area of the rotors may only 4.) 8i.) rotor swings automatically into the central be carried out when the p.t.o. -
Page 9: Adjusting Rotor Inclination
P.t.o. speed Roller-feeler (5) Better ground adaption is attained when the roller-feeler - P.t.o. speed max. = 540 rpm is used on extremely uneven surfaces. The most favourable p.t.o. rpm is about 450 rpm. - Should the forage be pulled back from the swath into the raked strips (untidy operation), then the p.t.o. -
Page 10: Implements With Tandem Axle
Implements with tandem axle - The rotor should be horizontal or maximally inclined (cm-1,5) 1,5 cm on the swath side - Implements with tandem axle (10) are to be raised when travelling through tight curves. EUROTOP 340N (from 2006 model) So that a fourth double tine can be used on appliances with tandem tyres: - fit the pin (B) into hole (2) -
Page 11: Lubrication Chart
FETT Schmierplan Plan de graissage Lubrication chart alle 8 Betriebsstunden Toutes les 8 heures de service after every 8 hours operation alle 20 Betriebsstunden Toutes les 20 heures de service after every 20 hours operation 40 F alle 40 Fuhren 40 F Tous les 40 voyages 40 F... -
Page 12: Maintenance And Servicing
MAINTENANCE Maintenance and servicing Cleaning of machine parts Safety hints: • Turn engine off when adjustment, service and repair Attention! Do not use high-pressure washers for the work is to be done. cleaning of bearing- and hydraulic parts. see supplement-A1 points 1b.), 2.), •... - Page 13 MAINTENANCE Tine arms • In normal operation the gap (A) should be approx. 1 • If the gap (A) is greater than 4 mm then change the mm. If shaft play (W) is greater then it can be corrected bushings (B) on the inner side of the tine arms. Otherwise Take Note! with washers consequent damage can occur to the machine.
-
Page 14: Technical Data
TECHNICAL DATA Technical data Optional extra EUROTOP 461 N (Type SK 299) Warning plates Lightning Number of rotors Number of tine arms Number of double tines per tine arm Working width bis 4,60 m Machine width in working position (without trap sheet) 3,72 m Transport width - folded up 2,4 m... -
Page 15: Supplement
SUPPLEMENT GB-Anhang Titelblatt _BA-Allgemein... - Page 16 The original cannot be copied ... Things will run better with genuine Pöttinger parts • Quality and precise fitting The decision must be made, ”original” or ”imitation”? The decision is often governed by price and a ”cheap buy” can sometimes be very expensive. - Operating safety.
-
Page 17: Recommendations For Work Safety
Recommendations for work safety SUPPLEMENT - A Recommendations for work safety 6.) Transport of persons prohibited All points refering to safety in this manual are indicated a. The transport of persons on the machine is not permitted. by this sign. b. -
Page 18: Driveshaft
DRIVESHAFT Supplement - B Matching driveshaft to tractor Rules for working To determine the actual length required, hold the two Never exceed the maximum p. t. o. speed when using halves of the driveshaft side by side. the implement. Important! - When the p.t.o. - Page 19 DRIVESHAFT Supplement - B How a cam type cut out safety clutch works This overload clutch switches the torque transmitted to zero if overloaded. To revert to normal operation, stop the p.t.o. drive briefly. The clutch reengages at a speed below 200 rpm. IMPORTANT! Re-engaging is also possible by decreasing the p.t.o.
- Page 22 IMPORTANT! ADDITIONAL INFORMATION Combination of tractor and mounted implement The mounting of implements on the front or rear three point linkage shall not result in exceeding the maximum permissible weight, the permissible axle loads and the tyre load carrying capacities ot the tractor. The front axle of the tractor must always to be loaded with at least 20 % of the unladen weight of the tractor.
- Page 23 IMPORTANT! ADDITIONAL INFORMATION 3. CALCULATION OF THE REAL FRONT AXLE LOAD T V tat (If with the front mounted implement (G ) the required minimum front ballasting (G ) cannot be reached, the weight of the front mounted V min implement has to be increased to the weight of the minimum ballasting at the front!) Record the calculated real front axle load and the permissible front axle load of the tractor into the table.
- Page 24 EC Conformity Declaration Original Conformity Declaration Name and address of the manufacturer: PÖTTINGER Landtechnik GmbH Industriegelände 1 AT - 4710 Grieskirchen Machine (interchangeable equipment): EUROTOP 421 N EUROTOP 461 N rotary rake Type Serial no. The manufacturer declares that the machines adhere to all relevant provisions in the following EU directive: machinery 2006/42/EG In addition to this, the manufacturer also declares adherence to the other following EU...
- Page 25 Im Zuge der technischen Weiterentwicklung La société PÖTTINGER Landtechnik GmbH Following the policy of the PÖTTINGER arbeitet die PÖTTINGER Landtechnik améliore constamment ses produits grâce Landtechnik GmbH to improve their products GmbH ständig an der Verbesserung ihrer au progrès technique. as technical developments continue, Produkte.
- Page 26 PÖTTINGER Landtechnik GmbH A-4710 Grieskirchen Telefon: +43 7248 600-0 Telefax: +43 7248 600-2513 e-Mail: info@poettinger.at Internet: http://www.poettinger.at PÖTTINGER Deutschland GmbH Verkaufs- und Servicecenter Recke Steinbecker Strasse 15 D-49509 Recke Telefon: +49 5453 9114-0 Telefax: +49 5453 9114-14 e-Mail: recke@poettinger.at PÖTTINGER Deutschland GmbH Servicecenter Landsberg Spöttinger-Straße 24...
