MultiModem Wireless Modem with Ethernet Interface
Connect the Antenna, Ethernet, and
Power
• Antenna.
Connect a suitable antenna to SMA connector. An
antenna is supplied with the bundled package ship kit. If you
purchase a single unit, you must supply your own antenna.
See the User Guide for antenna/RF specifications.
• Ethernet.
Using an RJ-45 Ethernet cable, connect the
10/100 jack to an internal network switch or hub.
• Power.
Plug one end of the power cord into the device and
the other end onto a live power outlet.
Notes
• The PWR LED.
The PWR
after power-up. LEDs are defined in the User Guide.
• Reset Button.
Pressing and holding the Reset button for 5
seconds will restore all factory default settings.

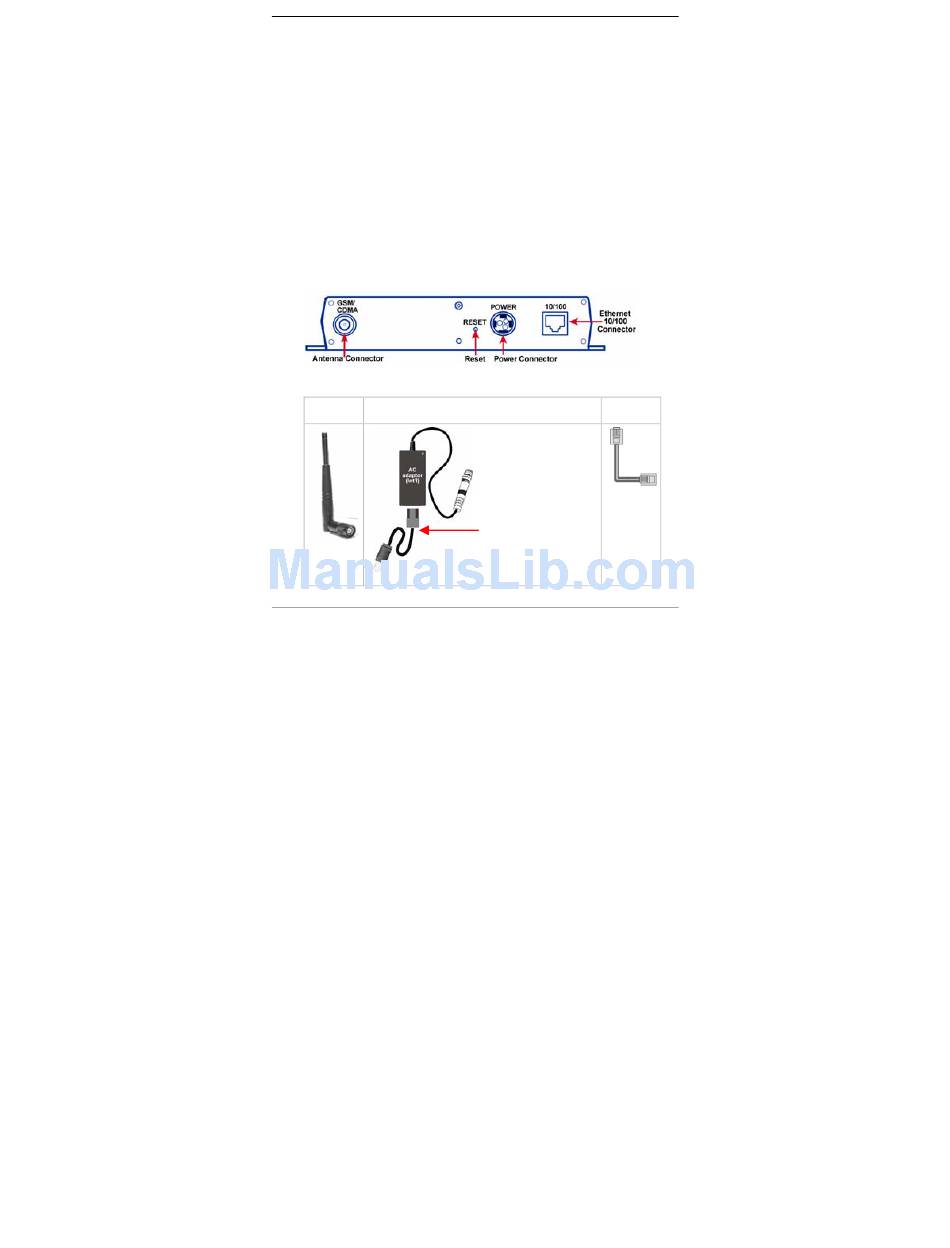

Back Panel View
Antenna Power Supply Cable
6 Multi-Tech Systems, Inc. Quick Start Guide
LED on the front panel lights up
Ethernet
Cable
This part of the
power supply cable
varies by the region
of the world to which
the product is
shipped: NAM / EU /
GB / IE
