2.4
Installation
Perform the following procedure to install the CC1600-series modem rack and install up to 16 modems in the
rack.
1.
Unpack the rack and check all items against the shipping list to ensure that you have received the correct
items. Rack components include:
•
Rack
•
Power Cord
•
Owner's Manual
2.
Inspect the rack for visible shipping damage. If damage is observed, do not power-on the rack; contact
Multi-Tech's Technical Support for advice (refer to Chapter 3).
3.
If no damage is observed, mount the rack in a standard 19-inch wide rack enclosure. Mounting
hardware should be provided with the rack enclosure.
4.
If power supply is not installed in rack, refer to the following section for power supply installation. If the
power supply is already installed, proceed to step 5.
5.
Open the rack front door.
6.
Unpack the modems to be installed in the rack.
7.
Refer to the RackMounted Modem Owner's Manual for the switch settings and parameters which pertain
to your application (dial-up/leased-line).
8.
Slide a modem into one of the 16 available slots. The component side of the card should be to the right
as in Figure 2-1. The modem's gold edge connector will mate with the rack's backplane. The edge
connector is offset vertically so the modem cannot be inserted upside down.
Slot 1
Modem
Component
Side

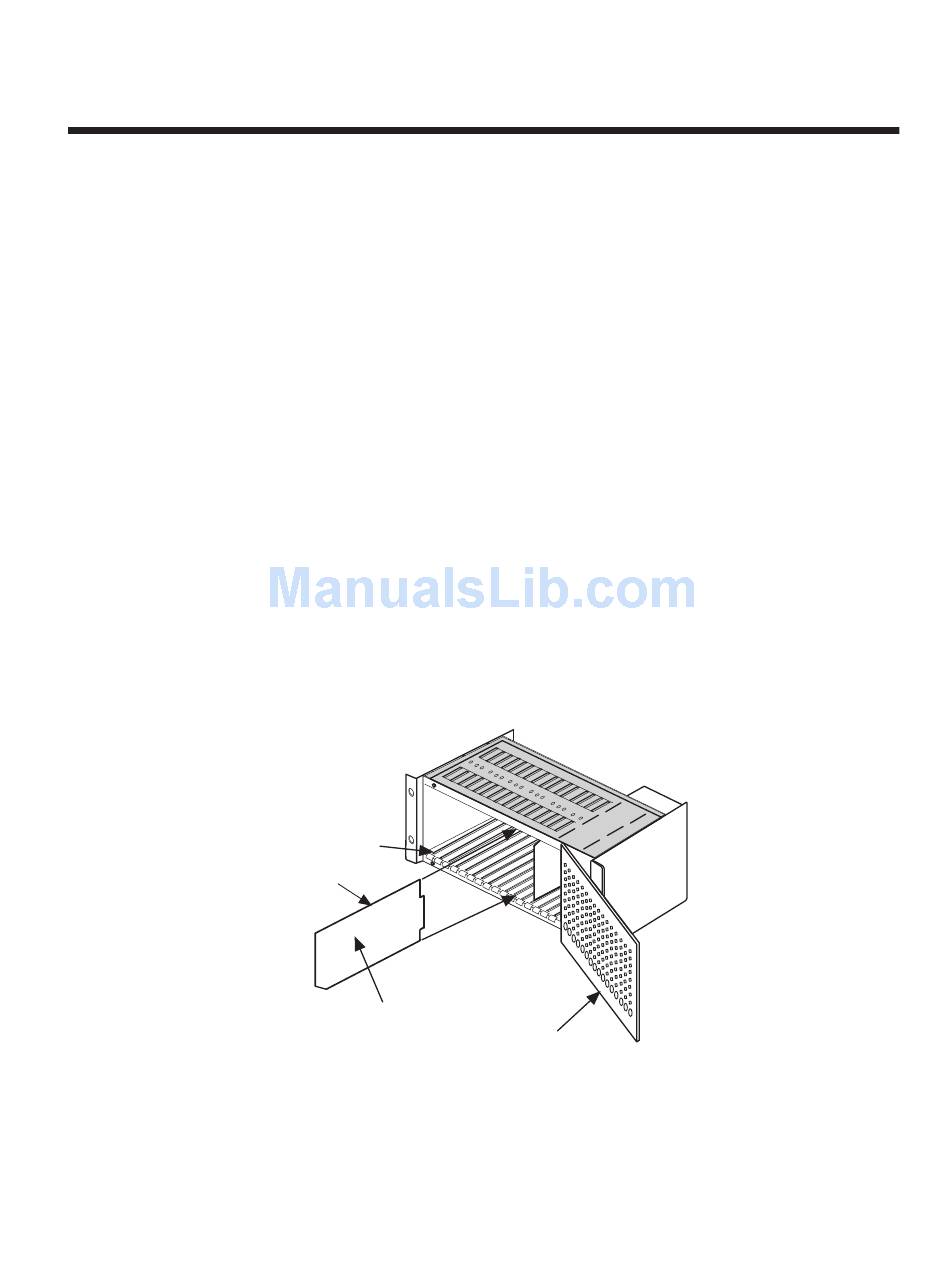

Figure 2-1. Modem Installation
Chapter 2 - Installation
Rack
Door
10
