Summary of Contents for EcoFlow Smart Generator Dual Fuel

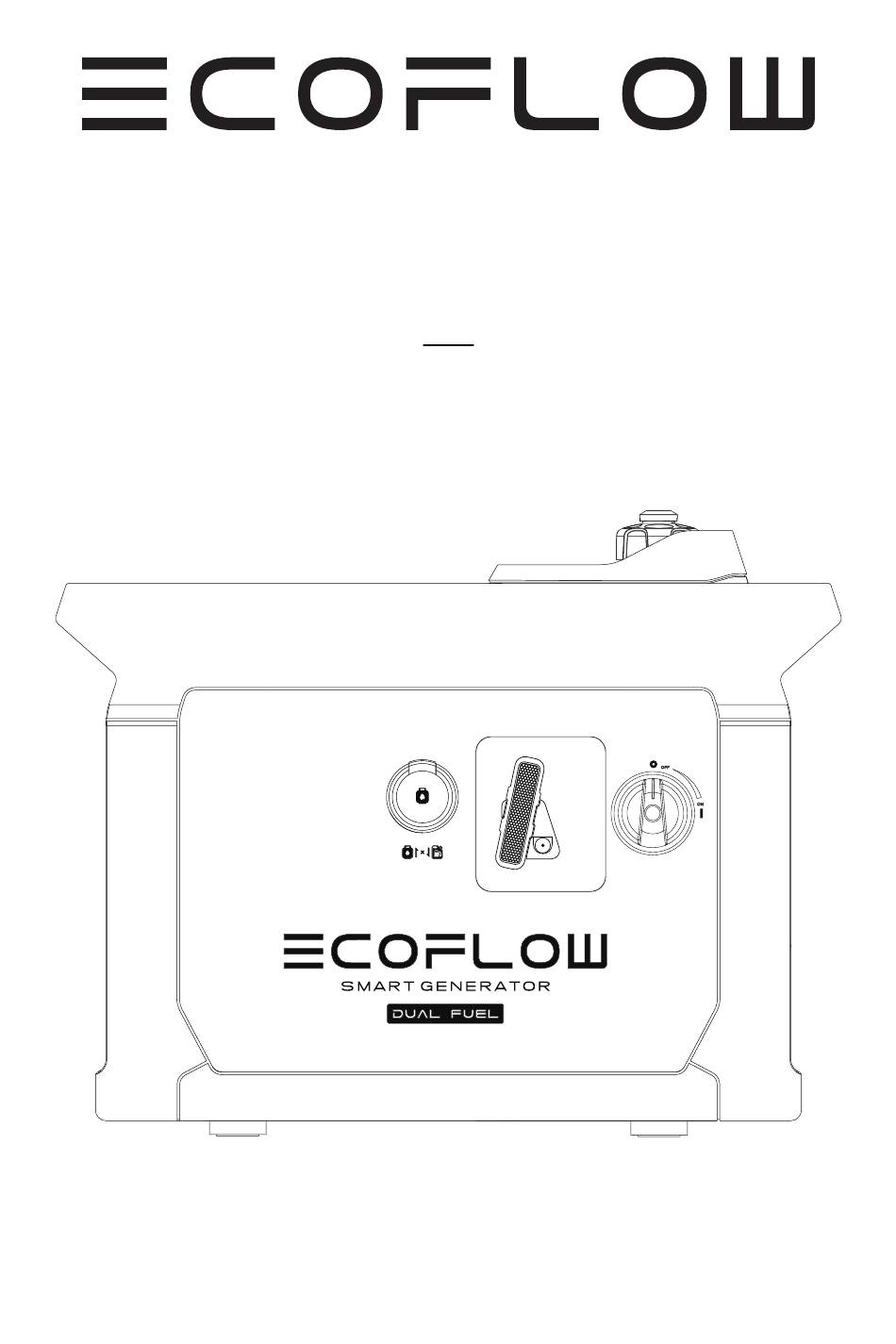

- Page 1 EcoFlow Smart Generator Dual Fuel User Manual...
- Page 3 User Manual, and will be responsible for any incorrect usage, and all the consequences arising therefrom. EcoFlow hereby disclaims any liability for any losses due to the user's failure to use the product according to the User Manual.
-
Page 4: Table Of Contents
2.4.4.1 Charging the DELTA Max, the DELTA Pro, or the Power Kits 2.4.4.2 Charging the DELTA Max Extra Battery Pack or the DELTA Pro Extra Battery Pack --2.4.5 EcoFlow App --2.4.6 Application Range --2.4.7 Special Requirements 3. Maintenance and Servicing 3.1 Checking the Spark Plug... -
Page 5: Safety Guidelines
1. Safety Guidelines 1.1 Safety Warning The safety of you and others, as well as of property are of the primary importance. Please carefully read the extremely important safety warnings we have written in the User Manual and the sticker of the generator set. This is to remind you of the potential dangers which may harm you and others. -
Page 6: Important Labels
Do not cover the generator with a box. Do not place any objects on the generator. Turn the fuel tank cap air vent knob to "OFF" after the engine has completely cooled down. EcoFlow Smart Generator Dual Fuel LOW POWER GENERATING SETS MODEL: EFG200 WEIGHT: 30.5kg... -
Page 7: Getting Started
2. Getting Started 2.1 Appearance Description Fuel Cap Breather Valve Fuel Cap Maintenance Cover Spark Plug Choke Lever Rechargeable Battery Oil Drain Bolt Air Filter Engine Oil Dipstick Muffler... - Page 8 *AC socket adapts according to local standards. LCD Screen Electric Start Switch Carbon Monoxide Alert Light IOT Reset Switch Engine Oil Alert Light AC Power Button AC Output Sockets Dust Cover Starter Grip LPG Inlet Engine Switch Carbon Monoxide Alert Light: When the carbon monoxide sensor detects that the concentration of carbon monoxide is about to exceed the standard, the generator will automatically stop and the carbon monoxide alert light will flash for 5 minutes.
-
Page 9: Introduction To The Icons On The Display Screen
Internet after the the network connection process is completed.If it is successfully connected to the Internet, the icon will stay on. Error Code: Please refer to the EcoFlow app for specific information on error codes. ECO Mode: In this mode, the generator will automatically match the rpm according to power output level in order to reduce fuel consumption and noise. -
Page 10: Before You Use The Product
2.3 Before You Use the Product Adding fuel (when using gasoline) Danger Please read the Safety Guidelines carefully before refueling as fuel is inflammable and toxic. Do not overfill the fuel tank, as fuel may expand and spill out when the fuel tank warms up. Be sure to tightly close the fuel cap after refueling. - Page 11 Danger When the engine is running, do not place the LPG hose or the LPG cylinder in the exhaust passage of the muffler. Warning Do not allow children to tamper or play with the LPG cylinder or LPG hose. Use an approved LPG cylinder that is equipped with an OPD (Overfill Prevention Device). Install the LPG cylinder on a flat surface, with the cylinder always in a upright position and the valve resting on top of the cylinder.
- Page 12 1. Place the generator on a level plane. 2. Turn the maintain cover knob to and take off the maintenance cover. 3. Unscrew the lid and oil dipstick. 4. Inject the specified amount of recommended engine oil, and screw the lid and oil dipstick closed tightly. Reinstall the maintenance cover and turn the knob to Closed.
-
Page 13: Using The Product
Turn the maintain cover knob to Open, take off the maintenance cover and check whether the positive and the negative wires of battery are connected correctly. Malfunctions While Running Check for any issues while the generator is running and consult EcoFlow for further technical support if necessary. 2.4 Using the Product Danger Read the Safety Guidelines before use. -
Page 14: Startup
2.4.1 Startup Caution For fuel selection, the generator will use LPG when the LPG hose is connected and gasoline when the hose is not connected. 1. a. To Use Gasoline: Turn the fuel cap vent valve 2. Turn the Engine Switch to "ON". knob to ‘’ON’’;... -
Page 15: Turning Off
c) Self-start, see paragraph 2.4.4 d) Starting through the app, see paragraph 2.4.5 Tips: When the ambient temperature is below 32 ℉( 0 °C), the engine will need to warm up for three minutes after being started, during which time no load should be loaded. 2.4.2 Turning off gasoline To turn the engine off in an emergency, turn the engine switch to the “OFF”... -
Page 16: Ac Connections
2.4.3 AC Connections 1. Start the generator. 2. Insert the plug into the AC Output Socket and check that the on-screen AC output port icon is illuminated. 3. Switch on the electrical equipment. Tips: When the generator is in operation, the AC output can be turned on and off through the AC output switch. -
Page 17: Dc Charging
2.4.4 DC Charging ① 2.4.4.1 Charging the DELTA Max, the DELTA Pro, or the Power Kits 1. a. To use Fuel: Turn the fuel cap vent valve knob to ‘’ON’’ (See 2.4.1 Step 1); b. To use LPG: Connect the LPG cylinder to the entire machine, and open the valve (See 2.4.1 Step 1);... -
Page 18: Charging The Delta Max Extra Battery Pack Or The Delta Pro Extra Battery Pack
Privacy Policy By using EcoFlow Products, Applications and Services, you consent to the EcoFlow Term of Use and Privacy Policy, which you can access via the “About” section of the “User” page on the EcoFlow App or on the official EcoFlow EcoFlow app website at https://www.ecoflow.com/policy/terms-of-use and https://www. -
Page 19: Application Range
2.4.6 Application Range Please make sure that the total load of the generator is within the rated range before using the generator, or otherwise the generator may be damaged. Application 0.4–0.75 Power Factor 0.8–0.95 (Efficiency 0.85) ≤ 1,800 W (Gasoline) ≤... -
Page 20: Maintenance And Servicing
3. Maintenance and Servicing Proper maintenance and servicing is essential to ensure safe, economical and reliable usage. This also helps minimize your environmental impact. You must regularly check and service your generator to keep it in optimal condition based on the schedule below. -
Page 21: Checking The Spark Plug
Danger Turn off the generator before starting any maintenance. Place the generator on a level spot and separate the spark plug cap from the spark plug to prevent the generator from starting up. Do not use the generator such in poorly ventilated places such as rooms, rail tunnels or caves. Be sure to keep the working area well ventilated. -
Page 22: Adjusting The Carburetor
3.2 Adjusting the Carburetor The carburetor is an important part of engine, and should be adjusted by the dealer who has the professional knowledge, data and equipment to ensure it is adjusted correctly. 3.3 Replacing the Engine Oil Do not drain the engine oil immediately after the generator is switched off. The oil Warning temperature will be very high. -
Page 23: Air Filter
3.4 Air Filter 1. Turn the maintain cover knob to and take off the maintenance cover. 2. Take off the screws and the air filter cover. 3. Take off the foam filter element. 4. Clean the foam filter element with soapy water or a nonflammable solvent and dry it. -
Page 24: Fuel Filter Strainer
3.5 Fuel Filter Strainer 1. Take off the fuel cap 2. Clean the fuel filter 3. Wipe the filter screen and 4. Reinstall the fuel and fuel filter screen. screen with fuel. place it back into the fuel. cap. Never use fuel in any place near smoke or flames. Warning Caution Be sure to tighten the fuel cap. -
Page 25: Storage And Transportation
4. Storage and Transportation If you plan to place this generator into long-term storage, you need to take some storage measures to prevent premature aging of the generator. 4.1 Draining the Fuel 1. Turn the Engine Switch to "OFF". Tips: When there is no leftover fuel in the generator, skip this step and make sure that the LPG dust cover is in place. -
Page 26: Use After Storage
4.4 Use after storage If the generator is stored with fuel in the fuel tank and carburetor, conduct servicing as required in the table below before using again. Recommended Servicing Procedure to Prevent Difficult Startups Storage Duration Within one month No preparation needed One to two months Evacuate the fuel and inject fresh fuel... -
Page 27: Faults And Troubleshooting
5. Faults and Troubleshooting Errors Content of Tips Error Type Possible Causes Recovery Methods When using gasoline, turn the fuel cap vent valve knob to OFF; Turn the fuel cap breather valve knob When using LPG, the LPG gas cylinder to "ON"... -
Page 28: Parameters And Specifications
6. Parameters and Specifications Length × width × height 23.5×11.8×18.7 in/597×300×475 mm Complete machine Net weight 67.2 lbs/30.5 kg Type Inverter generator Frequency 50 Hz Rated voltage 230 V Generator Gasoline: 1,800 W (Peak Value 1,900 W) Rated power LPG: 1,600 W (Peak Value 1,700 W) Power factor DC output voltage 42–58.8 V... -
Page 29: Circuit Diagram
7. Circuit Diagram... -
Page 30: Package List
8. Package List Smart Generator User Manual and Extra Battery Oil Funnel Dual Fuel Warranty Card Connection Cable Screwdriver Spark Plug Socket Breaker Bar Double-Ended Spanner LPG Hose...
