Product Introduction

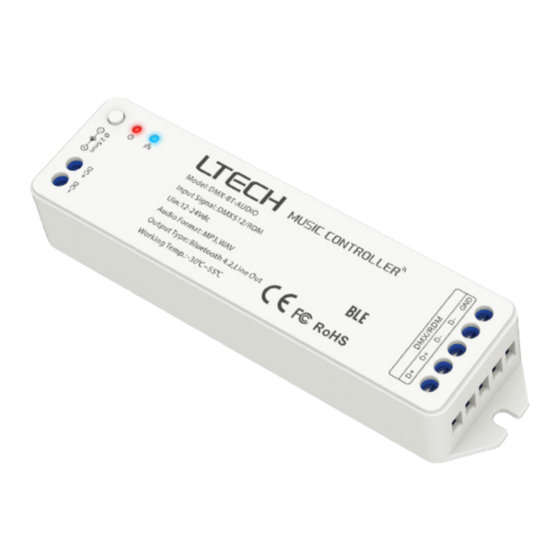

DMX-BT-AUDIO is a DMX to Bluetooth music controller that can work with LTECH MS Panel system. It works
with speakers through Bluetooth connection or audio cables. The built-in USB interface and TF card socket
read music resources and realize the matching effects of customized lighting scenes and music, which satisfy
the needs of general customers.
DMX-BT-AUDIO
Music Controller
5-Year
Warranty
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ltech DMX-BT-AUDIO
Summary of Contents for Ltech DMX-BT-AUDIO

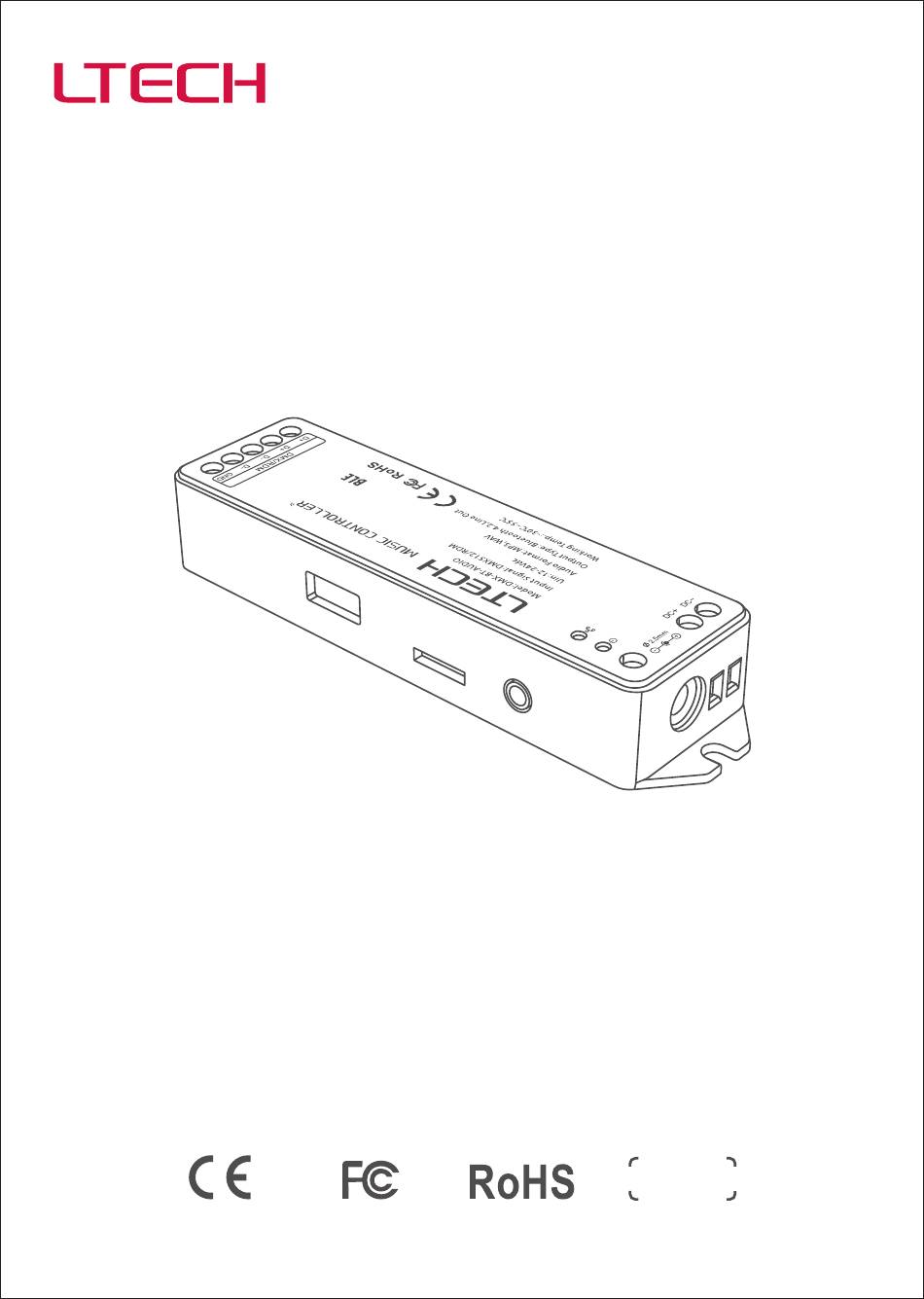

- Page 1 Music Controller Product Introduction DMX-BT-AUDIO is a DMX to Bluetooth music controller that can work with LTECH MS Panel system. It works with speakers through Bluetooth connection or audio cables. The built-in USB interface and TF card socket read music resources and realize the matching effects of customized lighting scenes and music, which satisfy the needs of general customers.
- Page 2 Package Contents Music Controller ×1 TF Card ×1 Manual 1 × System Diagram 3G/4G/5G WiFi Lamp DMX decoder Cloud service Remote Lamp DMX driver Internet WiFi WiFi DMX to phase-cut converter Lamp Router MS Panel L-BUS LED control system Pixel lamp wired protocol Lamp Dry contact module...
- Page 3 Technical Specs Input signal: Audio format: MP3、WAV DMX512/RDM Input voltage: Working temp: -30°C ~ 55°C 12-24Vdc Number of tracks: Dimensions: 125×33×20mm(L×W×H) TF card / USB: Package size: 128G (Max) 127×35×24mm(L×W×H) Output mode: Gross weight: Bluetooth 4.2, Line Out 110g Product Size Unit: mm Structure diagram Settings button...
- Page 4 Bluetooth Connection 12-24Vdc Input voltage Speaker (slave) signal 5-24Vdc Speaker (slave) Bluetooth speaker (host) DMX-BT-AUDIO Input voltage signal MS Panel Dry contact module LTSA512 DMX lamp Speaker (slave) Step 1: Insert a TF card or USB with copied tracks into the music controller.
- Page 5 Step 1: Insert a TF card or USB with copied tracks into the music controller. (Refer to P7 → FAQs → How to change track sequences) Step 2: Connect MS Panel to the music controller. (Connection & setting method: Refer to P6 → Add a music controller) Step 3: After the music controller being power-on, connect the audio power amplifier through the audio cable then tracks can be played through MS Panel App.
- Page 6 2 Add MS Panel Open the App, click “+” icon in the upper right corner of “My Devices”. Afterthe phone connecting to a router, follow tips to enter your password and click “Next step”. Press the settings key at the bottom of panel to enter the settings interface, and select “Connect WiFi", click "Next step"...
- Page 7 4 Add a music controller After adding MS Panel, enter the interface of “Zone Management” and click “Add Zones”. The panel is now searching for devices. After completing the search, choose a LED fixture type and a music controller you want to add and save them.
- Page 8 1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law. 2. LTECH has the right to amend or adjust the terms of this warranty, and release in written form shall prevail.
