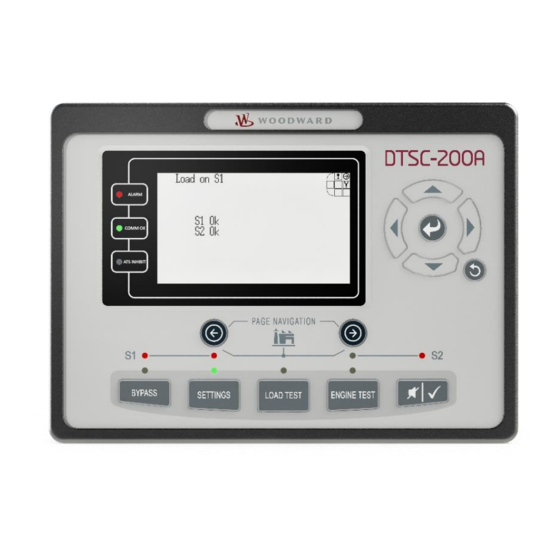

Woodward DTSC-200A Installation Manual

Woodward DTSC-200A Installation Manual

Ats controller
Hide thumbs Also See for DTSC-200A:
Table of Contents

Advertisement

37939A
DTSC-200A
ATS Controller
Installation
Release 1.0 - 1
- Installation
Document ID: 37939, Revision A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTSC-200A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Woodward DTSC-200A

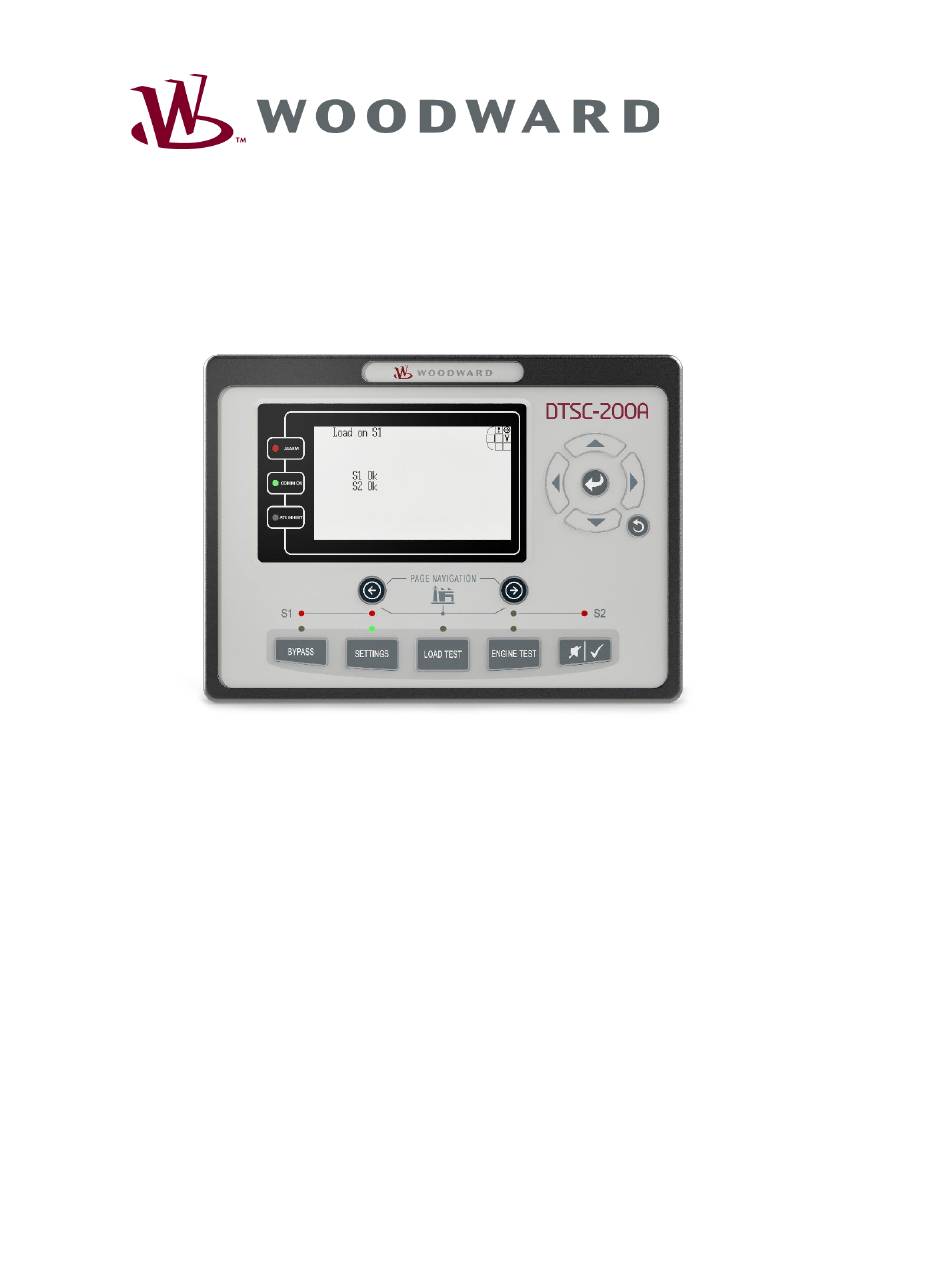

  • Page 1 37939A DTSC-200A ATS Controller - Installation Installation Release 1.0 - 1 Document ID: 37939, Revision A...
  • Page 2 Provides other helpful information that does not fall under the warning or caution categories. Woodward reserves the right to update any portion of this publication at any time. Information provided by Woodward is believed to be correct and reliable. However, Woodward assumes no responsibility unless otherwise expressly undertaken.
  • Page 3: Table Of Contents

    Manual 37939A DTSC-200A - ATS Controller - Installation Revision History Rev. Date Editor Changes 2022-31-03 1.0-0 - Based on DTSC-200 V2.0017 Content 1. G ..................5 HAPTER ENERAL NFORMATION QR Code .............................5 2. E ............6 HAPTER LECTROSTATIC ISCHARGE WARENESS 3.
  • Page 4 Manual 37939A DTSC-200A - ATS Controller - Installation Illustrations and Tables Illustrations Figure 3-1: Housing - panel-board cutout ............................7 Figure 4-1: Wiring diagram.................................. 9 Figure 5-1: Back panel print................................13 Figure 5-2: Voltage measuring - terminal assignment - source 1 voltage..................16 Figure 5-3: Voltage measuring -source 1 PT windings, 3Ph 4W ....................17...
  • Page 5: Chapter 1. General Information

    Manual 37939A DTSC-200A - ATS Controller - Installation Chapter 1. General Information Type English German DTSC-200A this manual  DTSC-200A - Installation 37939 DTSC-200A - Configuration 37940 DTSC-200A - Operation 37941 DTSC-200A - Application 37942 DTSC-200A - Interfaces 37943 Table 1-1: Manual - overview Intended Use: The unit must only be operated in the manner described by this manual.
  • Page 6: Chapter 2. Electrostatic Discharge Awareness

    CAUTION To prevent damage to electronic components caused by improper handling, read and observe the pre- cautions in Woodward manual 82715, Guide for Handling and Protection of Electronic Controls, Printed Circuit Boards, and Modules. Page 6/38 © Woodward...
  • Page 7: Chapter 3. Housing

    Manual 37939A DTSC-200A - ATS Controller - Installation Chapter 3. Housing Panel Cutout ≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡ Figure 3-1: Housing - panel-board cutout © Woodward Page 7/38...
  • Page 8: Chapter 4. Wiring Diagram

    Manual 37939A DTSC-200A - ATS Controller - Installation Chapter 4. Wiring Diagram Page 8/38 © Woodward...
  • Page 9: Figure 4-1: Wiring Diagram

    Manual 37939A DTSC-200A - ATS Controller - Installation Ethernet RS232 microSD Not used Not used Device Not used B(-) RS485 A(+) [DI 12] Discrete Input [DI 12] [DI 11] Discrete Input [DI 11] [DI 10] Discrete Input [DI 10] [DI 09]...
  • Page 10: Wiring Diagram (Application)

    Manual 37939A DTSC-200A - ATS Controller - Installation Wiring Diagram (Application) RS232 Ethernet microSD Not used Device Not used Not used B(-) RS485 A(+) [DI 12] Discrete Input [DI 12] [DI 11] Discrete Input [DI 11] [DI 10] Discrete Input [DI 10]...
  • Page 11: Chapter 5. Connections

    Manual 37939A DTSC-200A - ATS Controller - Installation Chapter 5. Connections WARNING All technical data and ratings indicated in this chapter are not definite! Only the values indicated in Chapter 6: Technical Data on page 33 are valid! The following chart may be used to convert square millimeters [mm²] to AWG and vice versa: mm²...
  • Page 12 Manual 37939A DTSC-200A - ATS Controller - Installation Page 12/38 © Woodward...
  • Page 13: Terminals

    The DTSC-200A operation is internally defined through the measured power supply (terminal 1,2). If the power supply falls under 7.8 Volts the DTSC-200A goes into a passive condition. That means it switch- es off all relay outputs, shows “low battery” on display and causes the “Alarm” LED to fast blinking.
  • Page 14 Manual 37939A DTSC-200A - ATS Controller - Installation Function Cable Remarks Size POWER 2.5mm Connected with the power supply negative SUPPLY − POWER 2.5mm Connected power supply positive. If the wire is SUPPLY longer than 30 m, use double wires in parallel. LPS, Class 2, LVLE, Listed DC fuse 4 A for 24 Vdc circuits is recommended.
  • Page 15: Table 5-2: Application Example - Wiring Diagram

    1.0mm Free purposes digital input Digital input 12 1.0mm Free purposes digital input Not used Table 5-2: Application Example – Wiring Diagram NOTE Woodward recommends to fuse-protect all lines according to their rated load (rated current). © Woodward Page 15/38...
  • Page 16: Voltage Measuring (Flexrange)

    DO NOT use both sets of voltage measuring inputs. The control unit will not measure voltage correctly if the 120 V and 480 V inputs are utilized simultaneously. NOTE Woodward recommends protecting the voltage measuring inputs with slow-acting fuses rated for 2 to 6 A. Voltage Measuring: Source 1...
  • Page 17: Figure 5-3: Voltage Measuring -Source 1 Pt Windings, 3Ph 4W

    Manual 37939A DTSC-200A - ATS Controller - Installation Voltage Measuring: Source 1, Parameter Setting '3Ph 4W' (3-phase, 4-wire) Figure 5-3: Voltage measuring -source 1 PT windings, 3Ph 4W 3Ph4W Figure 5-4: Voltage measuring -source 1 measuring inputs, 3Ph 4W 3Ph 4W...
  • Page 18: Figure 5-5: Voltage Measuring - Source 1 Pt Windings, 3Ph 3W

    Manual 37939A DTSC-200A - ATS Controller - Installation Voltage Measuring: Source 1, Parameter Setting '3Ph 3W' (3-phase, 3-wire) Figure 5-5: Voltage measuring - source 1 PT windings, 3Ph 3W 3Ph3W Figure 5-6: Voltage measuring -source 1 measuring inputs, 3Ph 3W...
  • Page 19: Figure 5-7: Voltage Measuring - Source 1 Pt Windings, 1Ph 3W

    Manual 37939A DTSC-200A - ATS Controller - Installation Voltage Measuring: Source 1, Parameter Setting '1Ph 3W' (1-phase, 3-wire) Figure 5-7: Voltage measuring - source 1 PT windings, 1Ph 3W 1Ph3W Figure 5-8: Voltage measuring -source 1 measuring inputs, 1Ph 3W...
  • Page 20: Figure 5-9: Voltage Measuring - Source 1 Pt Windings, 1Ph 2W

    Manual 37939A DTSC-200A - ATS Controller - Installation Voltage Measuring: Source 1, Parameter Setting '1Ph 2W' (1-phase, 2-wire) Figure 5-9: Voltage measuring - source 1 PT windings, 1Ph 2W 1Ph2W Figure 5-10: Voltage measuring -source 1 measuring inputs, 1Ph 2W...
  • Page 21: Voltage Measuring: Source 2

    Manual 37939A DTSC-200A - ATS Controller - Installation Voltage Measuring: Source 2 Figure 5-11: Voltage measuring - source 2 Terminal Description Source 2 Voltage L1 2.5 mm² Source 2 Voltage L2 2.5 mm² Source 2 Voltage L3 2.5 mm² Source 2 Voltage N 2.5 mm²...
  • Page 22: Figure 5-12: Voltage Measuring - Source 2 Pt Windings, 3Ph 4W

    Manual 37939A DTSC-200A - ATS Controller - Installation Voltage Measuring: Source 2, Parameter Setting '3Ph 4W' (3-phase, 4-wire) Figure 5-12: Voltage measuring - source 2 PT windings, 3Ph 4W 3Ph4W Figure 5-13: Voltage measuring -source 2 measuring inputs, 3Ph 4W...
  • Page 23: Figure 5-14: Voltage Measuring - Source 2 Pt Windings, 3Ph 3W

    Manual 37939A DTSC-200A - ATS Controller - Installation Voltage Measuring: Source 2, Parameter Setting '3Ph 3W' (3-phase, 3-wire) Figure 5-14: Voltage measuring - source 2 PT windings, 3Ph 3W 3Ph3W Figure 5-15: Voltage measuring -source 2 measuring inputs, 3Ph 3W...
  • Page 24: Figure 5-16: Voltage Measuring - Source 2 Pt Windings, 1Ph 3W

    Manual 37939A DTSC-200A - ATS Controller - Installation Voltage Measuring: Source 2, Parameter Setting '1Ph 3W' (1-phase, 3-wire) Figure 5-16: Voltage measuring - source 2 PT windings, 1Ph 3W 1Ph3W Figure 5-17: Voltage measuring -source 2 measuring inputs, 1Ph 3W...
  • Page 25: Figure 5-18: Voltage Measuring - Source 2 Pt Windings, 1Ph 2W

    Manual 37939A DTSC-200A - ATS Controller - Installation Voltage Measuring: Source 2, Parameter Setting '1Ph 2W' (1-phase, 2-wire) Figure 5-18: Voltage measuring - source 2 PT windings, 1Ph 2W 1Ph2W Figure 5-19: Voltage measuring -source 2 measuring inputs, 1Ph 2W...
  • Page 26: Current Measuring

    Manual 37939A DTSC-200A - ATS Controller - Installation Current Measuring ≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡ CAUTION Before disconnecting the current transformer/CT secondary connections or the connections of the cur- rent transformer/CT at the device, ensure that the current transformer/CT is short-circuited. Load NOTE Please connect the wires of the current transformer "L (x)" as near as possible to the unit.
  • Page 27: Figure 5-21: Current Measuring - Load, L1 L2 L3

    Manual 37939A DTSC-200A - ATS Controller - Installation Current Measuring: Load, parameter setting 'L1 L2 Figure 5-21: Current measuring - load, L1 L2 L3 L1 L2 L3 Wiring terminals Notes DTSC-200A Phase Table 5-14: Current measuring - terminal assignment - load, L1 L2 L3...
  • Page 28: Discrete Inputs

    Manual 37939A DTSC-200A - ATS Controller - Installation Discrete Inputs ≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡ Discrete Inputs: The discrete inputs are switched on ground to energize them. So, there is in some cases no additional power sup- ply required. On the other hand, it is to consider incorporating a couple relay for being potential free. Please have a look on the “Application Example –...
  • Page 29: Discrete Outputs

    Manual 37939A DTSC-200A - ATS Controller - Installation Discrete Outputs ≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡ Discrete Outputs: The discrete outputs are very dedicated and should be studied together with the wiring diagram. The wiring dia- gram also gives information how are the potentials are combined. Please have a look on the “Application Exam- ple –...
  • Page 30: Interfaces

    Manual 37939A DTSC-200A - ATS Controller - Installation Interfaces ≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡ RS-485 Modbus RTU Slave Figure 5-24: Interface Description RS-485-A RS-485-B RS-485, Modbus RTU Slave (TxD+) (TxD-) Table 5-16: RS-485 Modbus interface - terminal assignment Half-Duplex with Modbus on RS-485 ...
  • Page 31: Can Bus Interfaces (Flexcan)

    Please note that the CAN bus is internally terminated with a resistor, which corresponds to the imped- ance of the cable (e.g. 120 Ohms, 1/4 W). It is not possible to connect more than 2 DTSC-200A in a CAN network.
  • Page 32: Table 5-18: Maximum Can Bus Length

    • The configured baud rate is too high for wiring length • The CAN bus cable is co-routed with power cables Woodward recommends the use of twisted-pair cables for the CAN bus (i.e.: Lappkabel Unitronic LIYCY (TP) 2×2×0.25, UNITRONIC-Bus LD 2×2×0.22).
  • Page 33: Chapter 6. Technical Data

    Manual 37939A DTSC-200A - ATS Controller - Installation Chapter 6. Technical Data Nameplate ----------------------------------------------------------------------------------------------------------- Serial number (numerical) Date of production (YYMM) Serial number (Barcode) Item number Item revision number Details Technical data Type Description (short) Type Description (long) UL logo Measuring values, voltages --------------------------------------------------------------------------------- /...
  • Page 34 Manual 37939A DTSC-200A - ATS Controller - Installation Discrete outputs [R 5] ---------------------------------------------------------------------------------- isolated ..............7 Aac 250 Vac voltage free output, resistive GP Discrete outputs Group B [R 6-7] ------------------------------------------------------------------- isolated ................Rated 10 Adc, 24 Vdc running stand alone, ........
  • Page 35 Manual 37939A DTSC-200A - ATS Controller - Installation Housing -------------------------------------------------------------------------------------------------------------- Type ....................plastic cabinet mounting Dimensions (W × H × D) ..............237 × 172 × 45 mm Front cutout (W × H) ..................214 × 160 mm Material........................PC+ABS Wiring ..........The terminals are suitable for field or factory wiring, copper conductors only.
  • Page 36: Chapter 7. Environmental Data

    Manual 37939A DTSC-200A - ATS Controller - Installation Chapter 7. Environmental Data Temperature ------------------------------------------------------------------------------------------------------- Cold, Dry Heat (storage) ............-25°C (-13°F) / 70°C (158°F) Cold, Dry Heat (operating)............ -25°C (-13°F) / 70 °C (158°F) ................Humidity: max. 93%. non-condensing Altitude -------------------------------------------------------------------------------------------------------------- Maximum operating altitude ..............
  • Page 37: Chapter 8. Accuracy

    Manual 37939A DTSC-200A - ATS Controller - Installation Chapter 8. Accuracy Measuring value Display Accuracy Notes Frequency Source 1 40.0 to 85.0 Hz 0.1 % Source 2 40.0 to 85.0 Hz 0.1 % Voltage Source 1 0 to 650 kV...
  • Page 38 Phone +49 (0) 711 789 54-510 • Fax +49 (0) 711 789 54-101 stgt-info@woodward.com Homepage http://www.woodward.com Woodward has company-owned plants, subsidiaries, and branches, as well as authorized distributors and other authorized service and sales facilities throughout the world. Complete address/phone/fax/e-mail information for all locations is available on our website (www.woodward.com).
