VESDA -E VEA Installation Instructions

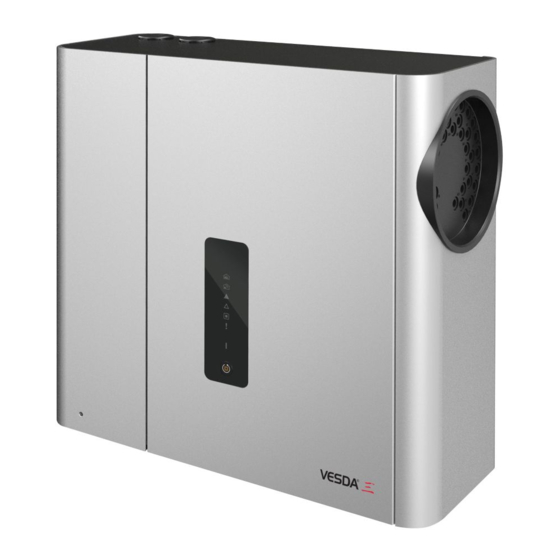

VESDA-E VEA Installation Instructions
These installation instructions provide essential information for installing VESDA-E VEA Aspirating Smoke Detectors in accordance with the system design. Additional installation and
product documentation is listed below in the Reference Documents section.
System Components
The detector is shipped with the following components:
• 1 aspirating smoke detector
• 1 mounting bracket
• 1 mounting template for directly mounting the detector to the mounting surface
• 1 End of Line Resistor for the monitored GPI
• 1 installation instruction sheet
• 40 tube inlet blanking plugs (P/N VSP-998)
Prerequisites
• A completed system design.
• A 24V DC Power Supply and backup battery, compliant with local codes and
standards.
• Screws and inserts that are appropriate for the installation location.
Type A to Type B USB Interface Lead, required for initial configuration of the
•
detector.
Labels as specified in the system design, e.g. Sampling Point labels
•
• Cable glands that are compliant with the IP rating of the detector.
Conduit, as specified in the system design.
•
• 1.1 mm 2 (18 AWG) or larger wiring for power.
• 0.2 mm 2 to 2.5 mm 2 (24 - 12 AWG) wiring for relays.
A PC or laptop installed with Xtralis VSC for initial configuration.
•
• Standard connection instructions for where the detectors are to be added to a corporate
network.
Standards Compliance
UL and ULC
• Special Application: High (1.6%/m [0.5%/ft]) to Standard (8.0%/m [2.5 %/ft])
• Open Area Protection, 0 to 300 ft/min air velocity: High (1.6%/m [0.5%/ft]) to
Standard (8.0%/m [2.5%/ft])
• Open Area Protection, 300/1000/2000 ft/min air velocity: High (1.6%/m [0.5%/ft]) to
Enhanced (4.0%/m [1.3%/ft])
• Open Area Protection, 3000/4000 ft/min air velocity: High (1.6%/m [0.5%/ft])
Power Consumption (24 VDC Supply)
Model Average Average
Quiescent Alarm
VEA-040-A00 22 W 35.5 W
VEA-040-A10 23 W 36.5 W
Environmental Requirements
• Temperature
• Ambient: 0°C to 39°C (32°F to 102°F)
• Sampled Air: 0°C to 50°C (32°F to 122°F)
• Tested to: 0°C to 49°C (32°F to 120°F)
• Humidity: 10-95% RH, non-condensing
Note: Please consult your Xtralis representative for information on operation outside
these parameters or where sampled air is continually above 0.05% obs/m
(0.015% obs/ft) under normal operating conditions.
Transport Time
Transport time is determined by the length of the microbore tubes used on the detector.
There is no provision for the user to adjust the transport time and there is no tube
modelling tool required for VEA.
The transport time is given in the table below for various tube lengths.
Maximum Tube Length Longest Transport Time
30m [98ft]
40m [131ft]
50m [164ft]
60m [197ft]
70m [230ft]
80m [262ft]
90m [295ft]
100m [328ft]
Reference Documents
Additional installation and product information is contained in the following documents,
which are available for download in the Xtralis partner extranet at www.xtralis.com.
• 27034 - VESDA-E VEA-040-A00 Product Guide
• 27035 - VESDA-E VEA-040-A10 Product Guide
Peak
Current
3.5 A
3.5 A
40 seconds
46 seconds
53 seconds
60 seconds
67 seconds
74 seconds
82 seconds
90 seconds
www.acornfiresecurity.com

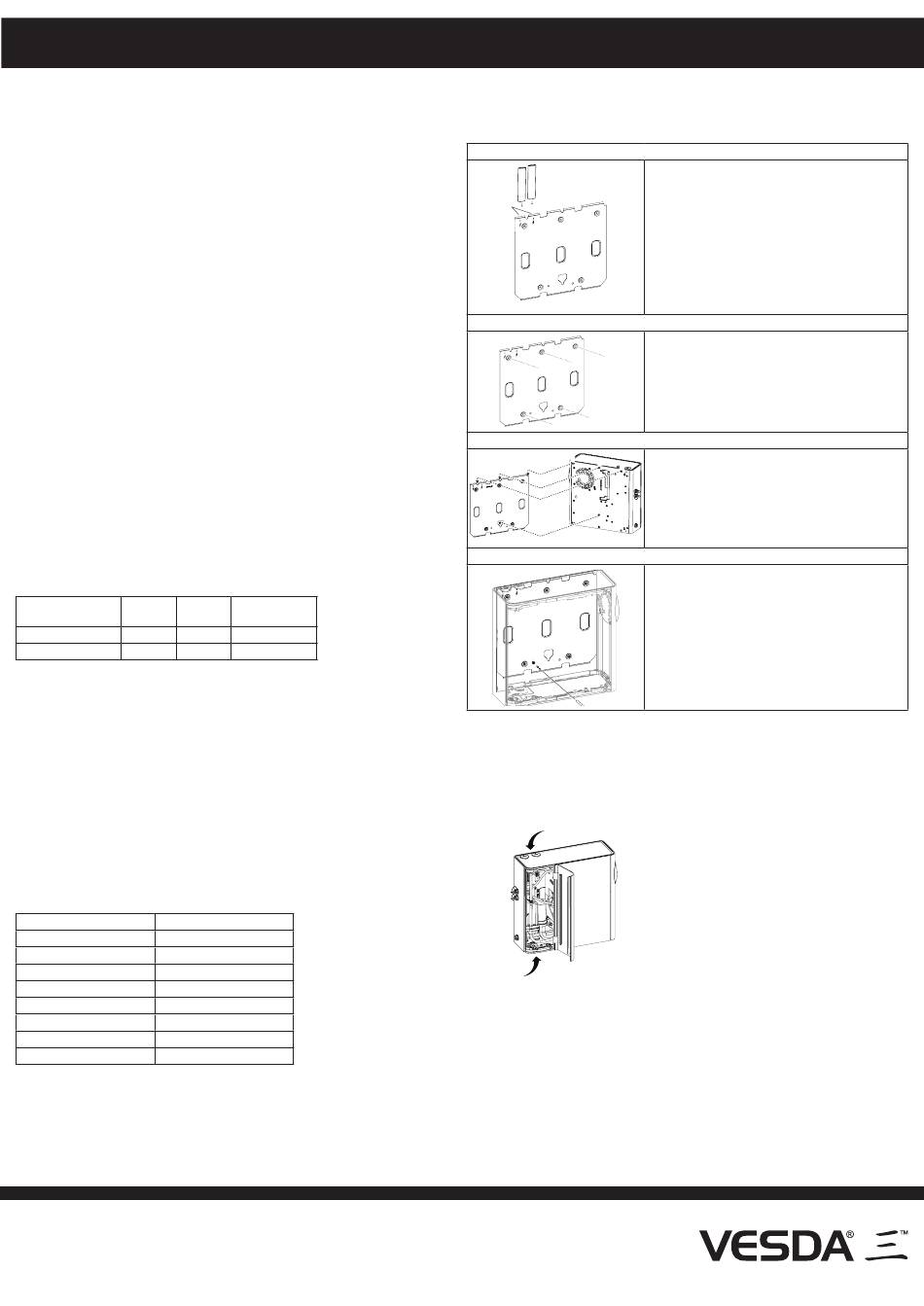

Installation Instructions
The detector must be mounted vertically to a solid surface.
Attach the detector using the mounting bracket
Position electrical conduit, mark pilot holes
B
C
D
D
Secure Mounting Bracket
E
Attach the detector to the mounting bracket
Secure the detector to the mounting bracket
G
Attach the detector directly to the mounting surface
Use the provided mounting template. Refer to the product guide for further informa-
tion.
Prepare Detector:
Remove the appropriate plugs for electrical cable installation.
• Do not remove the plugs from holes that will not be used.
• Feed the electrical wiring connections through the cable entry ports.
Use the correct cable gland size to fit into the 26 mm (1") cable entry port. Use
•
correctly rated cable glands to maintain the required IP rating.
www.acornfiresecurity.com
• Position the mounting bracket (A) to allow
electrical conduit (B) to line up horizontally with
the alignment marks (C).
A
• Mark positions for pilot holes on the mounting
surface through five recessed screw holes
D
D
(D).
• Remove the mouting plate and drill pilot
holes.
D
• Reposition the mounting bracket and secure to
mounting surface by screwing the five screws (E)
E
E
into their pilot holes.
E
E
• Align the four mounting studs (F) on the rear of
F
F
F
the detector with the mounting stud slots on the
mounting bracket, and slide the detector down
until the top of the detector is flush with the top of
F the mounting bracket.
• Open the door by inserting an Allen key
(preferred), Philips head screwdriver or flat blade
screwdriver with the blade vertically oriented into
the hole at bottom left and press firmly.
• Insert and tighten the locking screw (G). This
secures the detector to the mounting bracket.
• Insert the electrical conduit.
Wiring Inlets
Note: To remove the cable entry port plugs,
place a large screwdriver in the
large slot and twist, or use a small
screwdriver in the side slots to lever
the plug out.
