Welbilt FRYMASTER FQ4000 Basic Operation

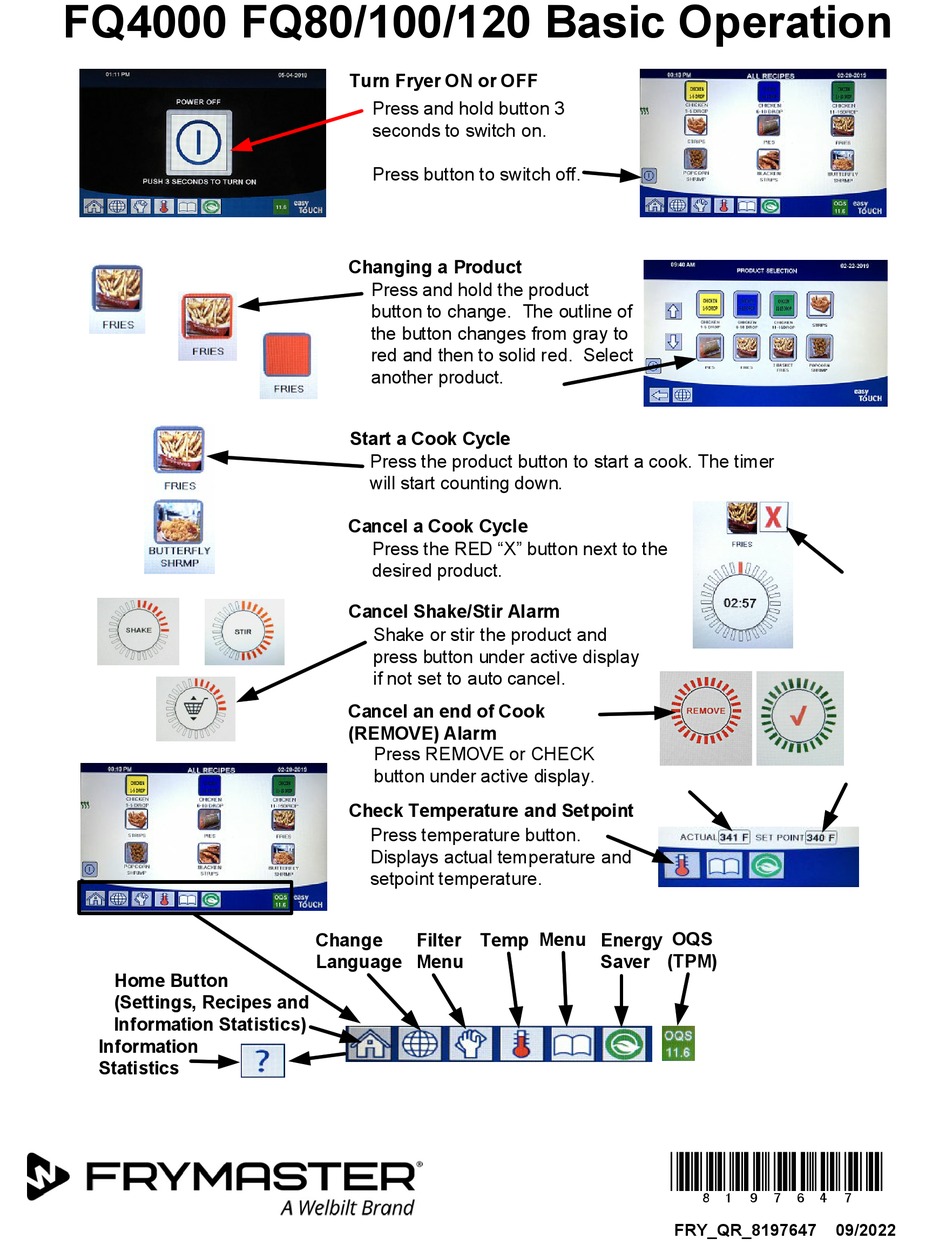

FQ4000 FQ80/100/120 Basic Operation
Home Button
(Settings, Recipes and
Information Statistics)
Information
Statistics

Turn Fryer ON or OFF

Press and hold button 3
seconds to switch on.
Press button to switch off.

Changing a Product

Press and hold the product
button to change. The outline of
the button changes from gray to
red and then to solid red. Select
another product.

Start a Cook Cycle

Press the product button to start a cook. The timer
will start counting down.

Cancel a Cook Cycle

Press the RED "X" button next to the
desired product.

Cancel Shake/Stir Alarm

Shake or stir the product and
press button under active display
if not set to auto cancel.
Cancel an end of Cook
(REMOVE) Alarm
Press REMOVE or CHECK
button under active display.

Check Temperature and Setpoint

Press temperature button.
Displays actual temperature and
setpoint temperature.
Change Filter
Temp
Language Menu
Menu Energy OQS
Saver (TPM)
*8197647*
FRY_QR_8197647 09/2022
