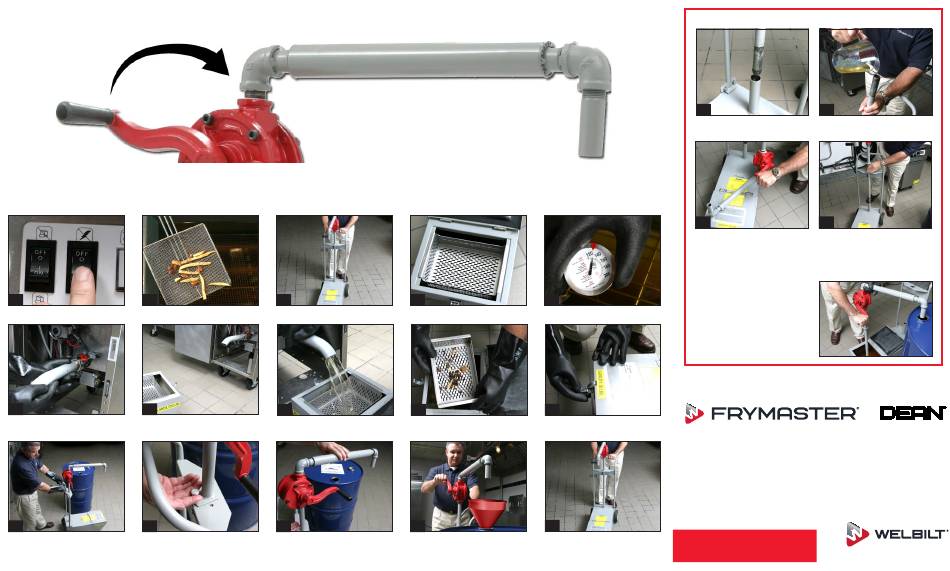

Welbilt Frymaster Dean SDU Series Step-By-Step Manual

SDU:
A Good Turn for Your Exhausted Oil
Rotate crank clockwise
to dispose of oil.
SDU Operation for Fryers Without Built-In Filtration:
Hot frying oil and equipment can cause severe burns. They must be handled with care to avoid such injury caused by improper handling techniques or
inadequate protective gear. Be sure to wear all appropriate safety gear as directed in store operating manual when handling hot frying oil or equipment.
1 2
Turn the fryer off. Skim debris from the oil.
6 7
Attach drain extension. Position SDU under drain extension.
11 12
Move SDU to oil disposal site. Release locking pin on pump head.
SDU Don'ts
SDU Do's
• Prime pump for initial use and • Don't drain water or boil-out solution into
after periods of non-use. SDU tank.
• Don't use without crumb tray.
• Empty crumb tray and tank
• Don't leave oil or shortening in SDU tank.
after each use.
• Don't pump hot oil > 120º F into SDU tank.
• Ensure oil is ≤ 120º F before
• Don't move SDU with lid unlatched.
draining into SDU.
3 4
Retrieve SDU from storage. Ensure SDU is empty and the crumb
tray is clean.
8 9
Open drain valve; drain oil into SDU; Carefully roll SDU from fryer; remove
close drain valve. Remove and store
and empty crumb tray.
drain extension.
13 14
Rotate spout to disposal container. Attach hose or place funnel in oil disposal
container opening. Turn pump handle
toward spout to pump out oil.
(No flow. See troubleshooting section.)
Step-by-Step Guide
5
Ensure the oil is below 120 F.
o
10
Replace crumb tray and latch SDU lid.
15
Return SDU to storage.
Prime Before First Use, After Lengthy Non-Use
1 2
Remove the pump and pipe unit from Invert pump and pour 1 cup of clean
the SDU by lifting up. cooking oil into the pipe.
3 4
With the pump inverted turn the handle Reseat the pump and pipe unit on
clockwise 3-4 turns stopping before oil the SDU.
pumps out of the spout.
Troubleshooting Potential O-Ring Problems
1. Unseat the pump and pipe unit
and allow it to rest in the open tank.
2. Crank the pump.
3. If the oil flows, the O-ring seals
on the pump pipe have failed
and must be replaced.
These instructions are intended as a quick reference. Read the manual, which
accompanied this product, and follow all safety guidelines.
TO ORDER MORE FILTRATION SUPPLIES PLEASE CALL
1-800-221-4583 or visit www.frymaster.com
Shreveport, LA 71106-6814, USA
318-865-1711, fax 318-868-5987
Operating pump with oil hotter than
recommended temperature will void
pump warranty.
8700 Line Avenue
© Frymaster 2020 Printed in the U.S.A.
Bulle tin # 818 -06 08 7 /20
