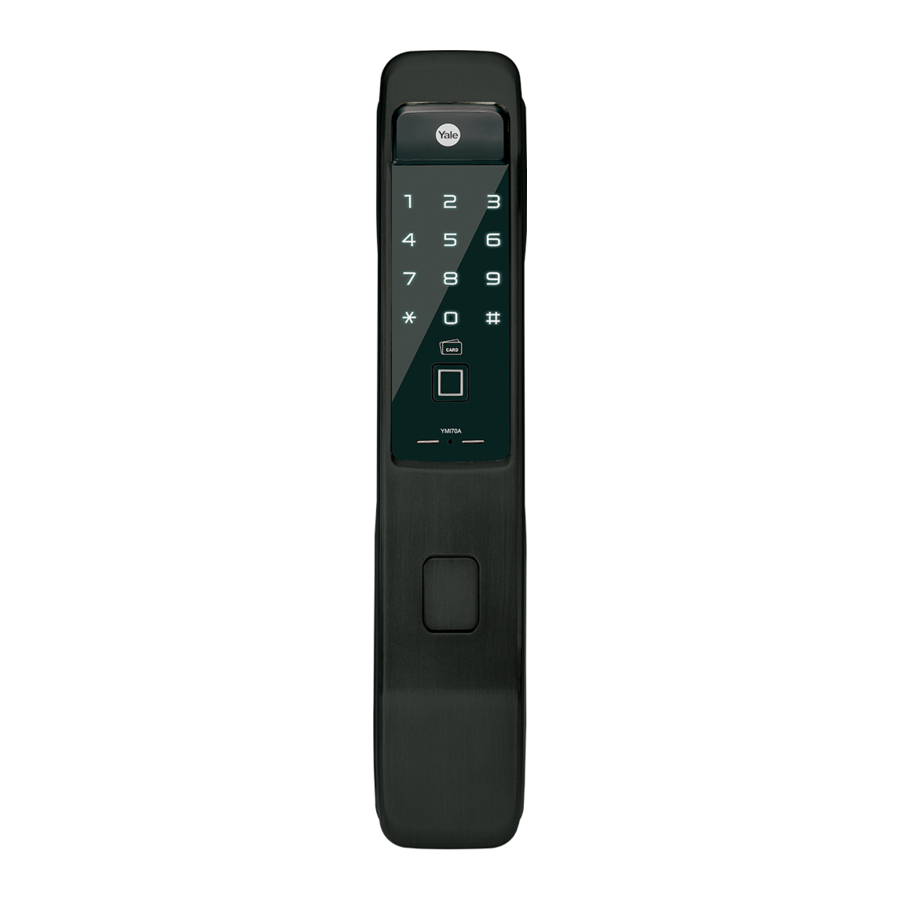

Front Body

(Front Body, installation on the outside of the door)

Specifications

• Battery life may vary depending on temperature, moisture levels, frequency of use and the quality of the batteries.

Main Body

(Main Body, installation on the inside of the door)

1	1.5V AA Alkaline Batteries (4PCS)
2	Slot for Remote control module (Optional)
3	Registration button
4	Open/Close Button
5	Push Pull Bar
6	Internal Forced Lock Switch
7	Battery Cover

Setting Menu

Normal Mode: Without a designated person, anyone who knows 'User PIN Code' has authority to set features.
Master Code: Only a designated person who knows 'Master PIN Code' has authority to set features.
Visitor Code: The visitor code is different from user code and given out to visitors only. Onetime Code: The onetime code is used only once for unlocking the door lock and automatically deleted after usage.
User Slot Number: It should be 2 digits(like '01', '02'...'99', '00') and available in advanced mode.

	Touch the Keypad of the Front Body with your palm to begin
	Press button on the Keypad
	Press button on the Keypad
	Press (Registration) button in every steps to start or complete the session
	Enter User Card Key (Up to 100EA)
	Enter User Fingerprint (Up to 100EA)
	Enter User Code (4 ~ 10 digits)
	Enter Master Code (4 ~ 10 digits)
	Enter Visitor Code (Only 4 digits)
	Enter Onetime Code (Only 4 digits)
	User Slot Number should be 2 digits (like '01'... '99' and '00': Location of 100th user slot must be assigned "00" instead of "100". )
	Rotation area to add more features

Product Features

One-touch Fingerprint Verification
Easy Scan by Goodix fingerprint solution: Live finger detection and secure matching The leading liveness performance improves the security of Yale smart lock dramatically.
Yale Access Bluetooth App (Yale Access BLE module: optional item)
This service is an innovative solution provided by YALE. Using high-tech IoT technology, user can access and unlock the digital door lock with your smartphone.
Smart Touchpad Automatic Locking
The automatic lock sensor detects the door closing and locks the door automatically within 5 seconds. The door locks when touch the keypad with the palm.
As the automatic lock function does not work in manual lock mode, make sure to check that the door is securely locked when leaving the premises.
3 minute Lock Out Feature
After five (5) unsuccessful attempts of an invalid code or card key or fingerprint, lock out mode is activated for 3 minutes.
Smart Etiquette
When entering a pin code on the keypad, the user can open the door lock in silent mode.
Fake PIN Code
Security enhancement to enter any number before or after entering a password to prevent the PIN code from being exposed.
Internal Forced Lock
It is a security-enhancing function that 'disables' authentication methods such as passwords, RFID cards and fingerprints from outside when setting up functions indoors.
External Forced Lock
It is a security-enhancing function that an alarm goes off if someone opens door from inside when setting up functions outside.
Voice Guide Feature
It guides user the operation status how to set each features, mode for easier and more convenient use.
Other features and Benefits

• Remote Controller (Optional): This option may not be available depending on your country or local dealer.
• Network Module/Controller (Optional): It allows door lock to connect with Home network controller.
• Intrusion/Broken Alarm.
• Low Battery Alarm and Emergency Power Supply.

Normal Mode (Default Mode)

Normal mode is a convenient mode for anyone to set the digital door lock. User can set password like user code, visitor code, onetime code and register user's fingerprints, card keys as well. Factory default is a normal mode.

How to press set button of remote controller
Press the set(registration) button located on the front of remote controller. You can press it using a pin like the picture.

Please note the following when using Yale Access Bluetooth App.

Unlocking Door with Code

1. Palm touch


2. Enter the Code


3. Palm touch

   OR
   Enter the button


Unlocking Door with Fingerprint / Card Key

1. Touch the panel (Area sensor) with fingerprint for 1 sec


2. Check Fingerprint recognition


3. Fingerprint scan completed


Contact registered Card Key

External Forced Lock

External Forced Lock Setting Fingerprint

Scan with registered fingerprint and hold the fingerprint area until you hear 3 beep sounds.

External Forced Lock Setting – User Code

1. Palm touch


2. Enter the User PIN Code


3. Enter the button for 5 Sec.


External Forced Lock Setting – Card Key

Contact Card Key on [Card Key reader] for 5 sec. until you hear 3 beeps.

Releasing External Forced Lock Setting
When the door is unlocked from outside based upon proper authentication, the External forced lock will be released.

Internal Forced Lock
Close the door then move the Lock button to "LOCK" position.

Unlocking Door with Smart Etiquette

1. Palm touch for 3 sec


2. Enter the User Pin Code then touch the keypad with your Palm

   OR
   Scan Fingerprint

   OR
   Card Key Touch


3-minute Lock Out Feature

If an invalid user code, fingerprint or card key is entered five(5) times in a row, lock out mode is activated and all buttons on the front body are not activated for three minutes.

To Release 3-minute Lock Out

• Open with inside door bar.
• Open the door with mechanical key.
• Press button.

Alarm

Intrusion Alarm: The alarm goes off when someone forces the door open. For example, In case of an intrusion by opening a gap in the door while the door is locked.
Broken Alarm: The alarm sounds when the front part is completely separated from the main set. For example, forced removal of external product (front body).

To turn off alarm

• Enter the registered User Code.
• Press the button for 5 seconds.
• Enter the registered Fingerprint.
• Touch the registered Card key.

Unlocking Door with Fake Code

1. Palm touch


2. Enter the user code and fake code

   OR
   Enter the Fake Code and User code


3. Palm touch


Resetting Lock to Factory Default

When lock is reset to factory defaults all user codes (including the Master code*)are deleted and all programming features are reset to original default settings(see below).

Code Chart

Duplicate if necessary

Master Mode

Master mode is a mode in which only the administrator can set the door lock and provide access to other users. 100ea user passwords, 100ea card keys, 100ea fingerprint and individual registration and deletion of one-time passwords enable efficient management of visitors.

•
  User Slot Number should be 2 digits. like '01'... '99' and '00': Location of 100th user slot must be assigned "00" instead of "100".

Important notes

Safety and Warning

User Code Only 1EA

PLEASE READ INSTRUCTIONS BEFORE USE.
The functions and design of this product can be changed without prior notice for performance and quality improvement.

Packaging of this product can be recycled.

WEEE Note:
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check your local authority or retailer for recycling advice.
