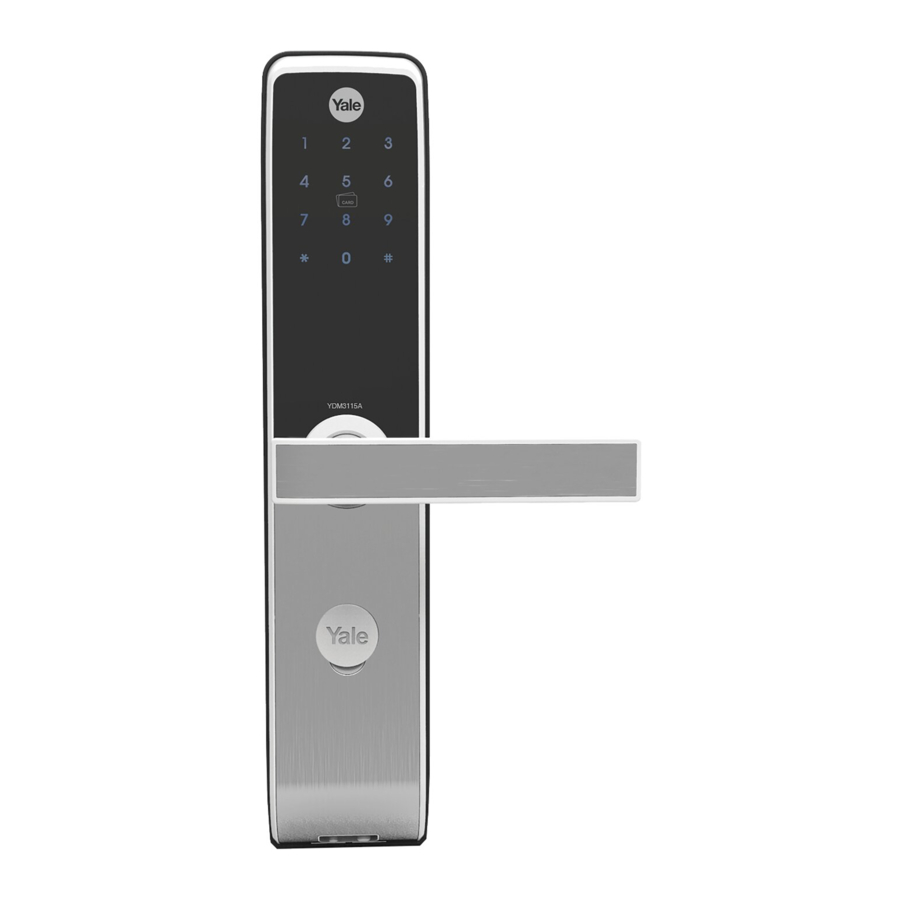

(Front Body, installation on the outside of the door)
1 | Keypad(10-key) |
2 | Card Key reader |
3 | Dead Bolt Jam Lamp |
4 | Lever |
5 | Battery Change Lamp |
6 | Emergency Cover |
7 | Emergency Key |
8 | Emergency Power Supply Terminal |
Optional Accessories
Parts | Specifications | Remarks | |
Front Body | 72(W) X 344(H) X 30(D) mm | Operating temperature -15~55˚C (5~131˚F) | |
Main Body | 72(W) X 344(H) X 36(D) mm | ||
Lever | Zinc die-casting | ||
Card Keys | 4 EA | Up to 100 keys | |
Battery | 4EA 1.5V AA Alkaline batteries (Operating voltage: 4.5~6V) | Last up to 10 months (10 times used a day) | |
Lock Case | Steel and SUS304 | ||
Option | Remote Controller | wireless | Optional |
※ Battery life may vary depending on temperature, moisture levels, frequency of use and the quality of the batteries.
※ Please make sure that all parts are included when purchasing the product.
※ Optional products may not be abailable depending on you country or local dealer.
(Main Body, installation on the inside of the door)
1 | Battery Cover |
2 | Registration button |
3 | Lever |
4 | Manual Thumb Turn |
5 | 1.5V AA Alkaline Batteries (4PCS) |
6 | Slot for Remote control module (Optional) |
7 | Volume Control Switch |
8 | Auto/Manual Lock Button |
9 | Safe Handle Button |
Normal Mode: Without a designated person, anyone who knows 'User PIN Code' has authority to set features.
Master Code: Only a designated person who knows 'Master PIN Code' has authority to set features.
Visitor Code: The visitor code is different from user code and given out to visitors only.
Onetime Code: The onetime code is used only once for unlocking the door lock and automatically deleted after usage.
User Slot Number: It should be 2 digits(like '01', '02'...'99', '00') and available in advanced mode.
Touch the Keypad of the Front Body with your palm to begin | |
Press button on the Keypad | |
Press button on the Keypad | |
Press(Registration) button in every steps to start or complete the session | |
Enter User Card Key (Up to 100EA) | |
Enter User Code (4 ~ 10 digits) | |
Enter Master Code (4 ~ 10 digits) | |
Enter Visitor Code (Only 4 digits) | |
Enter Onetime Code (Only 4 digits) | |
User Slot Number should be 2 digits (like '01'... '99' and '00': Location of 100th user slot must be assigned "00" instead of "100". ) | |
Rotation area to add more features |
Yale Access Bluetooth App (Yale Access BLE module: optional item)
This service is an innovative solution provided by YALE. Using high-tech IoT technology, user can access and unlock the digital door lock with your smartphone.
Smart Touchpad Automatic Locking
The automatic lock sensor detects the door closing and locks the door automatically within 5 seconds. The door locks when touch the keypad with the palm.
As the automatic lock function does not work in manual lock mode, make sure to check that the door is securely locked when leaving the premises.
3 minute Lock Out Feature
After five (5) unsuccessful attempts of an invalid code or card key, lock out mode is activated for 3 minutes.
Smart Etiquette
When entering a pin code on the keypad, the user can open the door lock in silent mode.
Fake PIN Code
Security enhancement to enter any number before or after entering a password to prevent the PIN code from being exposed.
Internal Forced Lock
It is a security-enhancing function that 'disables' authentication methods such as passwords, RFID cards and fingerprints from outside when setting up functions indoors.
External Forced Lock
It is a security-enhancing function that an alarm goes off if someone opens door from inside when setting up functions outside.
Other features and Benefits
Normal mode is a convenient mode for anyone to set the digital door lock. User can set password like user code, visitor code, onetime code and register card keys as well. Factory default is a normal mode.
Only 1EA
Up to 100EA
Only 1EA
Only 1EA, Automatically deleted after use
Set up a new device in the app
Up to 5EA
How to press set button of remote controller: Press the set(registration) button located on the front of remote controller. You can press it using a pin like the picture.
Please note the following when using Yale Access Bluetooth App.
Contact registered Card Key.
From Outside
Press the lever handle down to open door
From Inside
To open when Safe Handle Settings are enabled:
Keep pushing the safe handle button. And then, Press the handle down to open the door.
To open when Safe Handle Settings are disabled:
Press the lever handle down and open the door.
Automatic Lock Mode(Inside/Outside)
In automatic lock mode, the lock automatically locked within 5 seconds after closing the door and detecting the automatic lock sensor.
Manual Lock Mode
The door locks when touching the keypad with the palm. (outside)
Use Thumb turn knob on the main body. (Inside)
Automatic Lock Setting
Release the button to set automatic lock mode on the main-body (after opening the battery cover)
Manual Lock Setting
Press the button to set manual lock mode on the main-body.
External Forced Lock Setting – User Code
External Forced Lock Setting – Card Key
Contact Card Key on [Card Key reader] for 5 sec. until you hear 3 beeps.
Releasing External Forced Lock Setting
When the door is unlocked from outside based upon proper authentication, the External forced lock will be released.
The operation sound volume will be adjusted according to the Volume Switch setting.
If an invalid user code or card key is entered five(5) times in a row, lock out mode is activated and all buttons on the front body are not activated for three minutes.
To Release 3-minute Lock Out
Intrusion Alarm:
The alarm goes off when someone forces the door open.
For example, In case of an intrusion by opening a gap in the door while the door is locked.
Broken Alarm: The alarm sounds when the front part is completely separated from the main set. For example, forced removal of external product (front body).
The product uses four 1.5V Alkaline AA batteries. They may sustain 1 year if used 10 times a day. (Users are advised to use authentic Alkaline batteries.)
You must replace all 4 batteries in the following cases:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE NATIONAL CODE OR RECYCLING PROGRAM.
Duplicate if necessary
PIN Code Management(Up to 100 Users.) | ||
User Type | User Name | PIN Code |
Master | ||
User_ | ||
User_ | ||
User_ | ||
User_ |
Master mode is a mode in which only the administrator can set the door lock and provide access to other users. 100ea user passwords, 100ea card keys and individual registration and deletion of one-time passwords enable efficient management of visitors.
Only 1EA
Up to 100EA
Up to 100EA
Only 1EA, Automatically deleted after use
※User Slot Number should be 2 digits.
like '01'... '99' and '00': Location of 100th user slot must be assigned "00" instead of "100".
Set up a new device in the app
Up to 5EA
\
※ All registered passwords and other credentials can be deleted at the time of mode change.
※ Please install(register) the network module when you want to use a remote control or home network.
Do not install the digital door lock in an outdoor environment.
Do not attempt to disassemble the digital door lock by yourself.
Do not spray water directly or wipe with chemicals such as benzene, gasoline or alcohol.
Do not use force with a tool onto the product.
When using, remember that someone else can see the password.
Make sure to lock the door tight when you go out.
PLEASE READ INSTRUCTIONS BEFORE USE.
The functions and design of this product can be changed without prior notice for performance and quality improvement.
