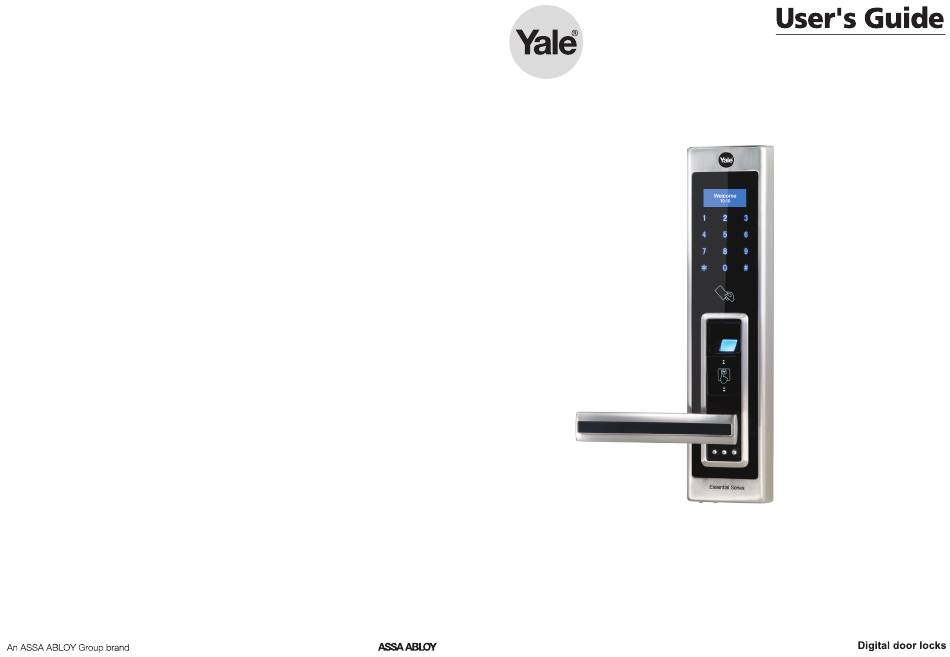

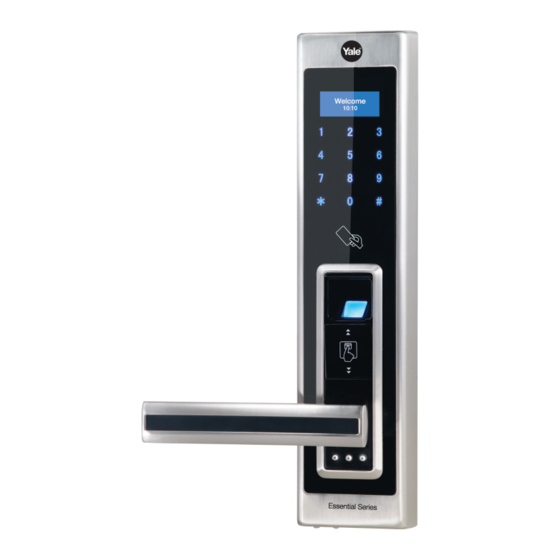

  • Page 1 Essential Series YDME - 90...

  • Page 2: Table Of Contents

    YDME - 90 Essential Series CONTENTS Important Tips Installation 1. The factory default master code is “11111111” . Please change the master code on the Operation Note initial use. After the master code is changed, all the exist users are deleted automatically. Enrolling Fingerprint User 2.

  • Page 3: Installation

    Essential Series Essential Series YDME - 90 YDME - 90 1.Installation Components 1.2 Install the front lock body 1.1 Install the mortise LCD Screen Keypad LOCK UNLOCK LOCK UNLOCK LOCK UNLOCK Card Reading Area Fingerprint Sensor Mortise Battery Cover 1.4 Install batteries 1.3 Install the back 1.5 Install the battery (8X AA Alkaline)

  • Page 4: Operation Note

    Essential Series Essential Series YDME - 90 YDME - 90 Enrolling Fingerprint User with User ID (Recommended for 2.Operation Note convenient for future management ) Operation Note: Please change the master code before enrolling code user. Ope r a t i o n Ex a m pl e Please touch the screen to wake up the lock before operation.

  • Page 5: Deleting Code User

    Essential Series Essential Series YDME - 90 YDME - 90 Deleting with User ID 6.Deleting Code User Deleting wi th U se r ID Op e r a t i o n Ex a m p l e Op e r a t i o n Ex a m p l e Press “2#”...

  • Page 6: Unlocking

    Essential Series Essential Series YDME - 90 YDME - 90 10.Change Batteries(8 x1.5V AA Alkaline Batteries Turn the battery cover switch to “Unlock Status” Input “Master Code” Input “12345678” Input “001” Input “3-Digit User ID”(Twice)” Remove the battery Cover Press”#” Press”#”...

  • Page 7: Extension Functions

    Essential Series Essential Series YDME - 90 YDME - 90 12.Extension Functions Check Date and Time: Press: 7 + # + Master Code + # Reading Fingerprint Records: 12.1 9V External Battery (Available when electrodes exist on the bottom Press: 6 + * + Master Code + # surface of the front lock body) records will be shown on LCD screen.

  • Page 8: Template

    Essential Series YDME - 90 14. Template 24.5 Unit:mm 6600-309 Template ( Euro Automatic Reverse Mortise)
