INSTALLATION & OPERATION
INFORMATION FOR MODELS G57C XXX

PRODUCT DATA

Pump Design ............................................Double Diaphragm
Wetted Parts ............................................................................
......Body and Check Valves ................................Polypropylene
......Diaphragm ....................................................Kalrez
........
Check Valve Seals ..................................Viton
......Springs ..............................................................Hastelloy
Ports ......................................................Air Inlet 1/4" (6.3 mm)
Liquid Inlet 3/8" (9.5 mm) - 1/2" (12.7 mm) - 3/4" (19.1 mm)
Liquid Outlet 3/8" (9.5 mm) - 1/2" (12.7 mm) - 3/4" (19.1 mm)
Net Weight ......................................................1.2 lbs. (0.54kg)

DESCRIPTION

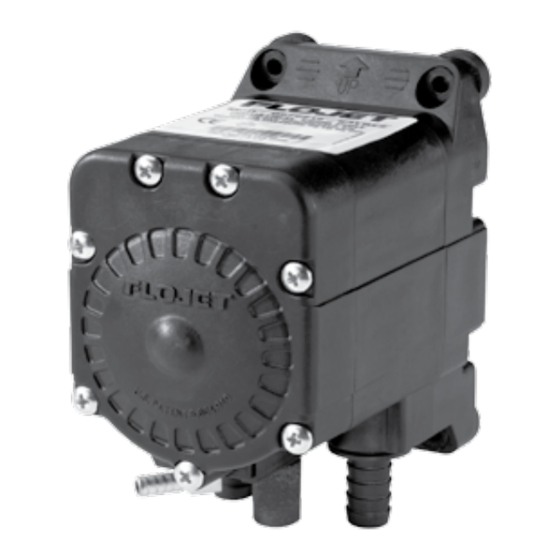

FLOJET Industrial G57C Pumps are designed for
general commercial and industrial applications. These
pumps are constructed from a selection of materials for
handling a broad range of chemicals.
Allowed fluids for
Kalrez ® parts
Lubricating Oils,
Hydraulic Oils,
Vegetable Oils,
Alcohols, Keytones,
Aromatic Hydrocarbons,
Aliphatic Hydrocarbons,
Diluted Acids, Alkalis,
Soaps with solvents,
Automotive brake fluid,
Acetones, Ethanol, inks.

DIMENSIONAL DRAWING

Inches (millimeters)
Dimensional tolerances ± 0.06 inches
Consult factory if precise details are required.
®
6190
®
Extreme™
Not Allowed fluids for
Kalrez ® parts
Halogenated Solvents
Warning: Do NOT pump
Petrol or fluids with flash
point below (37
98°F °C)
Explosion and death may
occur.
Warning: Incompatible
fluids may cause premat-
ure failure of the pump.
It is the customer's
responsibility to ensure
that fluids are compatible
with pump materials.
3.21
(82)
2.20
(56)
4.52
(115)
0.71 0.92
Liquid In
(19) (23)
1.84
(47)
Industrial Air Driven Pump

PERFORMANCE SPECIFICATIONS

PUMP
Liquid Temperature Min ..........................................40°F (4.4°C)
............................Max ......................................120°F (48.9°c)
Priming ..............Dry ..........................................15 ft. (4.5 m)
............................Wet ..........................................20 ft. (6.1 m)
Flow Rates ........Max ....................Up to 5 GPM (18.9 L/min)
Air Inlet Pressure ....................20 to 100 PSI (1.4 to 6.9 bar)
Noise Level ........Max ......................................................87dB
®
® ®
Kalrez and Viton Extreme™ are trademarks or registered trademarks of DuPont
Performance Elastomers. DuPont is a registered trademark of DuPont and its affiliates.
®
Hastelloy A registered trademark of Haynes International, Inc.
®
John Guest A registered trademark of John Guest International, Limited.
AIR FLOW RATE WITH 1/2" PORTS @ 2 GPM
Air In (PSI)
40
60
80
100
PERFORMANCE: KALREZ ® WITH 1/2" PORTS
K a l r e z
F l o w R a t e i n G P M ( 1 / m i n . )
4.58
(116)
5.81
(148)
Air Inlet
Liquid Out
G57C Series
Air Flow Rate (SCFM)
1.0
1.3
1.7
2.2
¨
D i a p h r a g m w i t h 1 / 2 Ó P o r t s
0.25
(6.4)
5.27
(134)
Air Exhaust
Muffler
