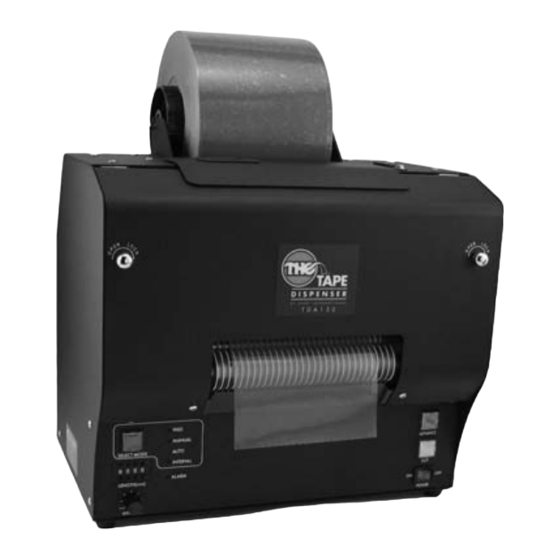

TDA150
Electric Tape Dispenser

ITEMS INCLUDED

Dispenser
Core Holder
Power Cord
1
Power Off
A: Ensure power button is set to off
2

Load Tape

B
Silicon Oil
A: Slide tape roll onto core holder
B: Place loaded core on holding bracket
3
Open Top Panel
B
A
A: Open top door panel
B: Remove tape shaft from unit
4
Affix Tape to Feed Roller
B
A
A
A: Affix tape onto feed roller
B: Re-insert tape shaft into guide
A
