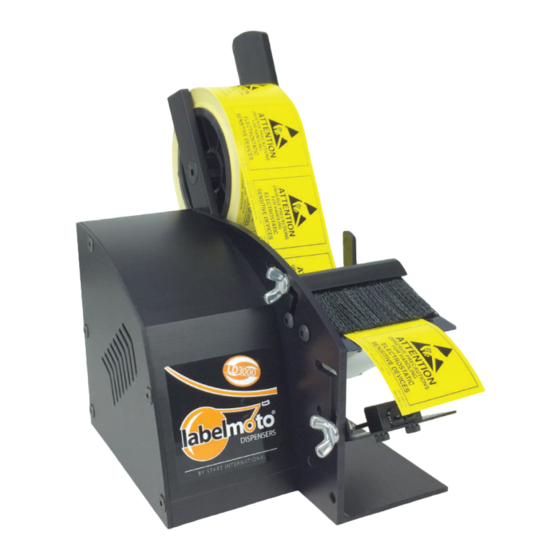

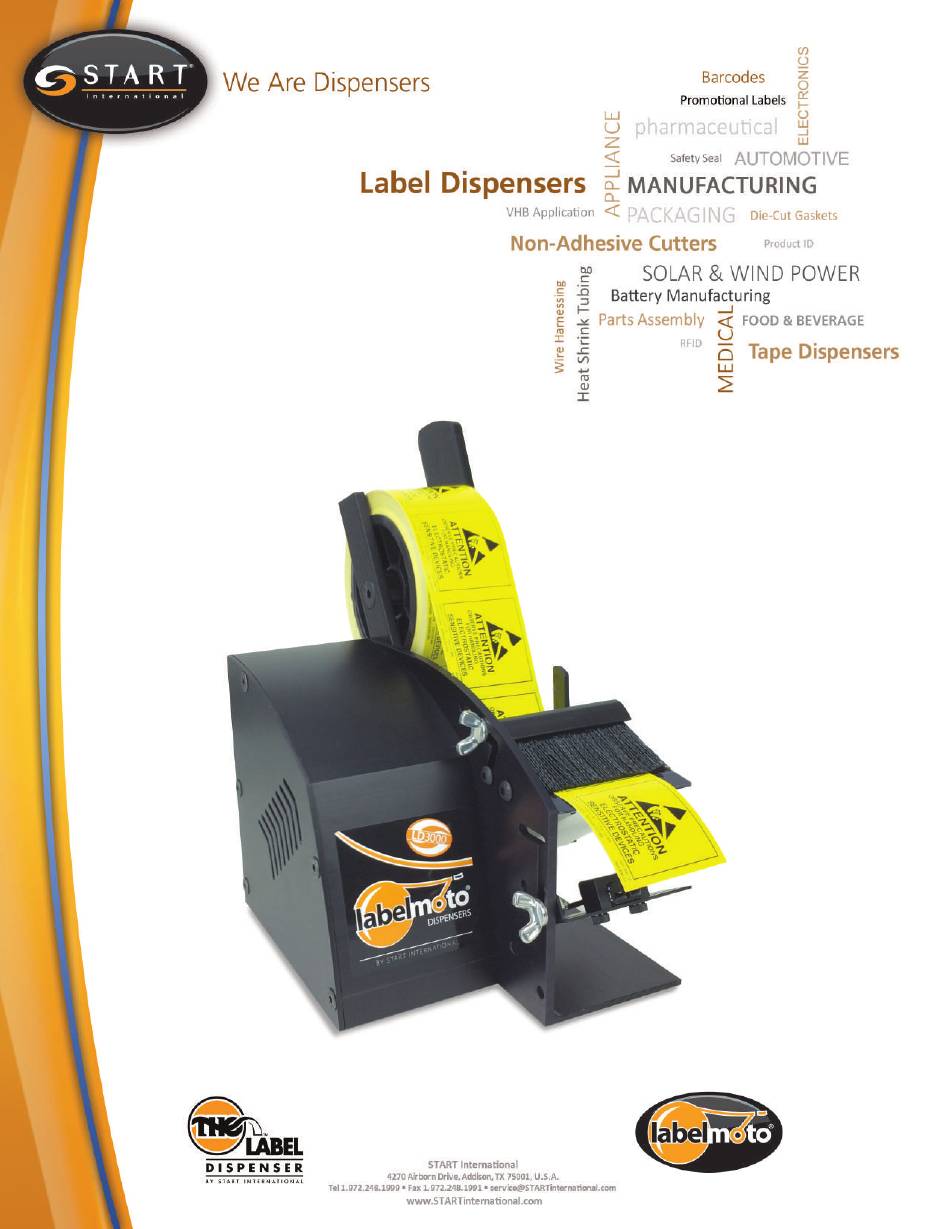

- Page 1 LD3000 Series LD3000 LD3000 FDA...
-
Page 2: Table Of Contents
CONTENTS Read this user’s manual before use to ensure proper operation. Keep the manual on hand for reference in case there is a problem. Warranty lnformation Page 2 Maintenance Page 2 Exploded View Page 3 Features Page 4 Notes Page 4 Repair Policy Page 4 Specifications... -
Page 3: Exploded View
EXPLODED VIEW... -
Page 4: Features
• Do not drop the dispenser or subject it to heavy shock. • Turn off machine when not in use. REPAIR POLICY Contact START INTERNATIONAL to determine nature of problem. Furnish START with the following information: 1. Who the unit was purchased from. -
Page 5: Set-Up
SET-UP INSTRUCTIONS Place the label roll onto the reel hanger bar. The roll should be against a metal lock clip so that it is held straight. Place second metal lock clip onto reel hanger bar to keep the labels snug. Thread the web under the guide rod, between the hold down and the strip plate and back under the strip plate. -
Page 6: Operation/Adjustments
ADJUSTMENTS Hold Down: Using the upper thumbscrew on the side of the machine, adjust the hold down for tensioning. For best results, labels should be pressed firmly against the strip plate. However, if the labels are held too tightly, they will cause excessive drag on the motor. Photosensor: The photosensor can be adjusted in any direction by using the lower thumbscrew on the side of the machine and the thumbscrew underneath the photosensor bracket.
