START International TDA025 Instruction Manual

Electric carousel tape dispenser
Hide thumbs
Table of Contents

Advertisement

Quick Links

TDA025
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDA025 and is the answer not in the manual?

Questions and answers

Related Manuals for START International TDA025

Summary of Contents for START International TDA025

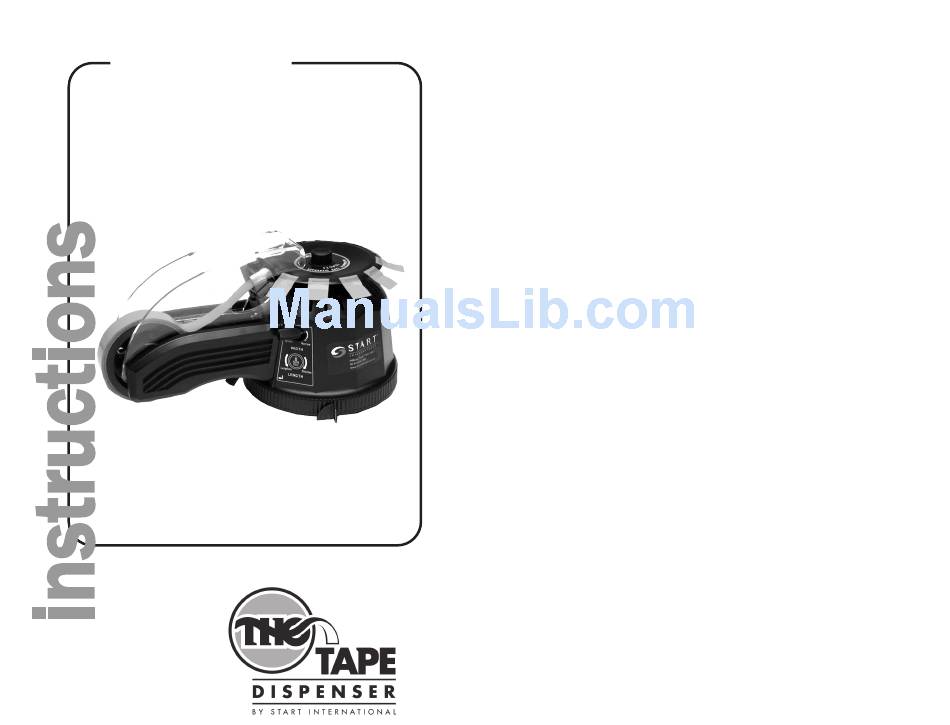

  • Page 1 TDA025 ®...
  • Page 2 TDA025 OVERVIEW NOB FOR CUT PIECE SPACING ANUAL EVER ABLE AFETY OVER OWER LADE TART WITCH PPER LADE RAME OBBIN ENGTH DJUSTMENT OLDER WITCH OWER TDA025 INSTRUCTION MANUAL...

  • Page 3: Before Use

    Note: For major cleaning, wipe the carousel off with benzene or alcohol. (Never clean it with thinner). 5. To avoid shortening the life of the motor, run the TDA025 without tape as little as possible. 6. This is an industrial tape dispenser. It is not for home use. Do not use around children.
  • Page 4 HOW TO SET THE BOBBIN 1. The ON/OFF switch must be “off”. Note: When not in use, unplug the TDA025. 2. Choose the right bobbin for the tape Note: Internal diameter – 25, 32 and 78 mm Outside diameter – Up to 130 mm 3.
  • Page 5 Note: Once the carousel is full, be sure to remove the pieces of tape before you start the TDA025 again or else the tape will overlap. 5. If the motor overheats, the thermostat will automatically shut the TDA025 off. When that happens, let the motor cool before further use.
  • Page 6 Begin taking the tape off from the left side of the tape holder , continue around clockwise. HOW TO ADJUST THE TAPE You can adjust the length and the cut piece spacing whether the TDA025 is “off” or “on”. SHORTEN LENGTHEN 1. Turn the length adjustment knob CLOCKWISE REVERSE the desired tape length.
  • Page 7 4. Try to cut the tape again. If the tape cuts, you have performed the adjustment correctly. Note: If the tape is not cut per- fectly, turn the adjustment screw a little at a time to further adjust the blade. TDA025 INSTRUCTION MANUAL...

  • Page 8: Maintenance

    MAINTENANCE If you have been using the TDA025 for a long time, glue from the tape starts sticking to the blades, and it becomes harder to cut. Remove the glue with benzene or alcohol. If the tape won’t stick to the carousel, press some tape sticky-side down onto the carousel.

  • Page 9: Repair Policy

    START will issue an RMA (Return Material Authorization) for the repair. • TDA025 will be returned to START with a purchase order for $25 to cover the evaluation cost. The $25 evaluation fee will be applied to the repair charge.

  • Page 10: Specifications

    Aluminum Foil Tape Double Sided Tape Soft Forming Tape And More! Optional Extension Stand Power Requirement AC 100V, 120V, 220-240V 50/60Hz 160W Dimensions 300(W) x 165(H) x 170(D) mm (11.8(W) x 6.5(H) x 6.7”(D)) Weight 2.85kgs. (6.4#) TDA025 INSTRUCTION MANUAL...
  • Page 11 PARTS TDA025 INSTRUCTION MANUAL...
  • Page 12 PARTS TDA025 INSTRUCTION MANUAL...
  • Page 13 PARTS TDA025 INSTRUCTION MANUAL...
  • Page 14 PARTS TDA025 INSTRUCTION MANUAL...
  • Page 15 PARTS TDA025 INSTRUCTION MANUAL...
  • Page 16 4270 Airborn Drive Addison, TX 75001, USA Toll Free 800.259.1986 Tel 972.248.1999 Fax 972.248.1991 info@startinternational.com www.startinternational.com 07/09...
