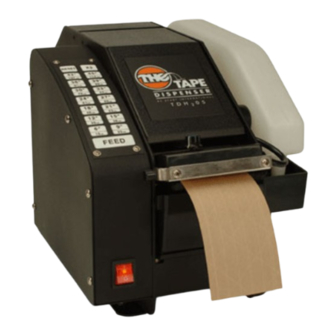

TDH
O5
2
Electric
Gummed "Water Activated"
Tape Dispenser
ITEMS INCLUDED
Dispenser
Power Cord
1
Adjust Guides
BACK
B
A: Open rear cover
B: Adjust reel guides to fit the tape roll
2
Insert Tape
BACK
A
A: Insert tape roll and guide tape over the
black lift roller and the metal guide bar
3
Feed Tape
FRONT
A
A: Raise front cover and continue feeding
tape under the upper tape plate
B: Close cover all the way down
4
Plug In + Power On
B
A: Connect power cord
B: Press power switch
A
(BACK)
to turn on
(FRONT)
Advertisement
Table of Contents
Related Manuals for START International TDH2O5
Summary of Contents for START International TDH2O5
- Page 1 Electric Feed Tape Adjust Guides FRONT BACK Gummed “Water Activated” Tape Dispenser ITEMS INCLUDED A: Raise front cover and continue feeding A: Open rear cover tape under the upper tape plate B: Adjust reel guides to fit the tape roll B: Close cover all the way down Plug In + Power On Insert Tape...
- Page 2 Q8.4 Fill Water Tank Check Tape A: Fill water tank with clean water A: Press FEED button to dispense one piece B: To avoid spilling, place finger over fill hole of tape and ensure tape is loaded correctly when returning full water tank to its holder LD5000 Dispense Tape Clean Brushes...
