TDH
O1
2
Manual

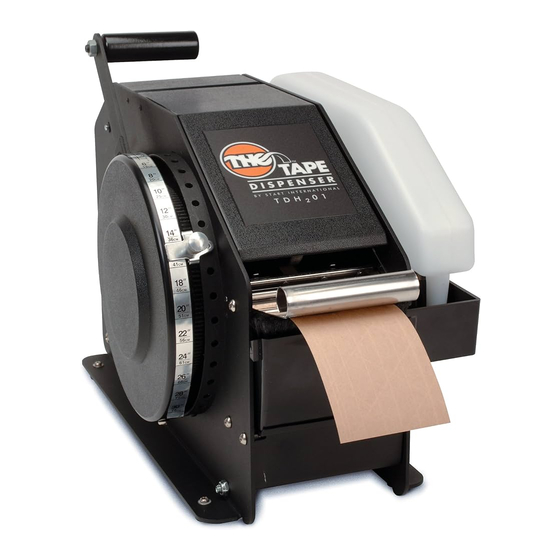

Gummed "Water Activated"
Tape Dispenser
ITEMS INCLUDED
Dispenser
1
Adjust Guides
BACK
B
A: Open rear cover
B: Adjust reel guides to fit the tape roll
2
Insert Tape
BACK
A
A: Insert tape roll and guide tape over the
black lift roller and the metal guide bar
3
Feed Tape
FRONT
A
6
A: Raise front cover and continue feeding
tape under the upper tape plate
4
Check Tape
A: Close lids and pull handle to dispense one
piece of tape. This will ensure that the tape is
loaded properly.
A
Advertisement
Related Manuals for START International TDH2O1
Summary of Contents for START International TDH2O1
- Page 1 Feed Tape Manual Adjust Guides FRONT BACK Gummed “Water Activated” Tape Dispenser ITEMS INCLUDED A: Open rear cover A: Raise front cover and continue feeding B: Adjust reel guides to fit the tape roll tape under the upper tape plate Check Tape Insert Tape BACK...
- Page 2 Q8.4 Adjust Water Level Clean Brushes OPTIONAL STEP A: Remove brushes and wash with clean, warm water. A: If necessary, water level can be adjusted B: Replace brushes. Brushes must be angled by turning the screw on the water tray toward the front of the dispenser.
