5
Load Dispenser
A: Feed label liner under guide
rod and brush
B: Bend liner around strip plate
and take-up hub (label will hang
slightly over edge for lifting)
C: Slide lock rod back into
take-up hub to secure liner
D: Slide small hub lock into
guide rod and rotate clockwise
lightly until it locks into place
6
Adjust Sensor
A
C
A: Loosen wingscrew to adjust sensor plate
B: Point sensor towards front edge of label
C: Tighten wingscrew to secure sensor
plate in place
A
B
7
Plug In & Turn On
Point sensor toward
edge of label
A: Connect power cord (in back)
B: Press power switch (on back) to turn
B
on machine
Now you're ready to roll.
Need more help? Download the full manual or contact us.
D
Small Hub Lock
Slide the hub lock into the rod
Turn the hub lock clockwise
C
lightly until it locks into place
A
B
QuickSTART
Guide

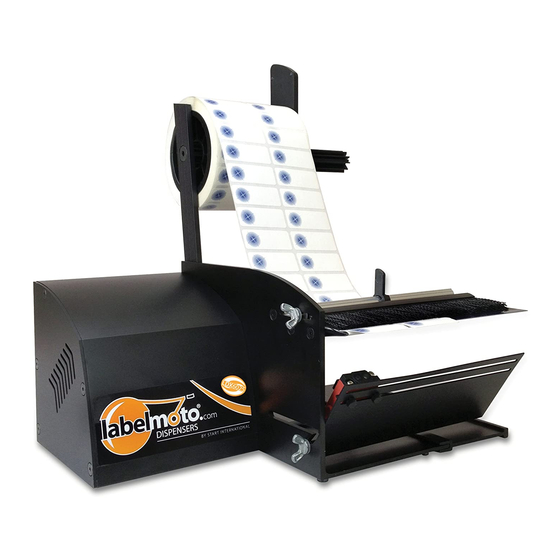

LD6050 Model Shown
LD6025
LD6050
LD6100
LDX6025
LDX6050
LDX6100
4270 Airborn Dr | Addison, TX 75001, USA
972.248.1999 | service@startinternational.com
www.STARTinternational.com
QS03.14
