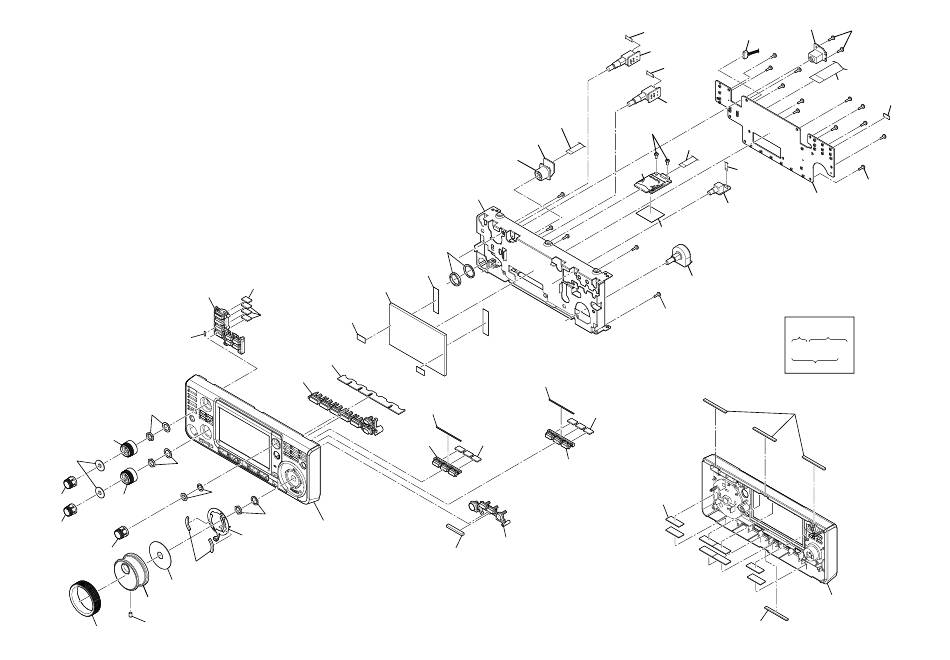

Icom IC-9700 Service Manual Addendum page 124

MP3 (FRONT)
(8610016490)
MP53 (FRONT)
(8930094540)
R1 (VR-A)
(7210003880)
MP37 (FRONT)
(8610013870)
MP52 (FRONT)
R1 (VR-B)
(8930094500)
(7210003880)
MP38 (FRONT)
MP39 (FRONT)
(8610013290) (8610013870)
MP40 (FRONT)
(8610013290)
MP41 (FRONT)
(8610015780)
MP33 (FRONT)
(8930077360)
MP34 (FRONT)
(8930094550)
MP35 (FRONT)
(8610015830)
MP43 (FRONT)
MP36 (FRONT) (8810003560)
(8610015760)
MP58 (FRONT)
DS1 (FRONT)
(8930094650)
(5030004051)
MP55 (FRONT)×2
MP49 (FRONT)
(8930032130)
(8930094520)
MP56 (FRONT)
(8930100360)
MP5 (FRONT)
(8610015710)
S1 (RIT)
(2250001010)
EP1 (FRONT)
(0880001360)
MP1 (FRONT)
(Refere to the parts list.)
MP32 (FRONT)
(8930093280)
W4 (FRONT)
(8900018000)
MIC UNIT
J1 (MIC)
(6510000191)
MP11 (FRONT)
(8010023630)
J1 (MIC)
(6510000191)
MP47 (FRONT)×2
(8930057950)
MP51 (FRONT)
(8930094530)
MP50 (FRONT)
(8930094530)
MP6 (FRONT)
MP63 (FRONT)×3
(8610016470)
(8930094520)
MP8 (FRONT)
(8610015740)
MP7 (FRONT)
(8610016480)
MP62 (FRONT)
(8930097950)
6-6
W31 (CHASSIS)
W1 (FRONT)
(8600037700)
(8910000070)
VR-A UNIT
W3 (FRONT)
(8910000070)
VR-B UNIT
MP24 (FRONT)
(8810008631)
W205 (CHASSIS)
(8900016100)
W2 (FRONT)
SD UNIT
(8910000070)
RIT UNIT
MP61 (FRONT)
(8930088580)
EP1 (FRONT)
(0880001360)
MP21 (FRONT)×5
(8810008661)
MP64 (FRONT)×3
(8930094520)
MP48 (FRONT)×8
(8930094510)
MP54 (FRONT)
(8930083180)
PHONE UNIT
MP23 (FRONT)
(8810008661)
W204 (CHASSIS)
(8910000220)
MP57 (FRONT)
(8930037760)
MP22 (FRONT)×12
(8810008661)
DISPLAY UNIT
Legend:
Ref.No. Unit Name
MP1 (CHASSIS)
(1234567890)
Parts No.
MP54 (FRONT)
(8930083180)
MP1 (FRONT)
(Refere to the parts list.)
