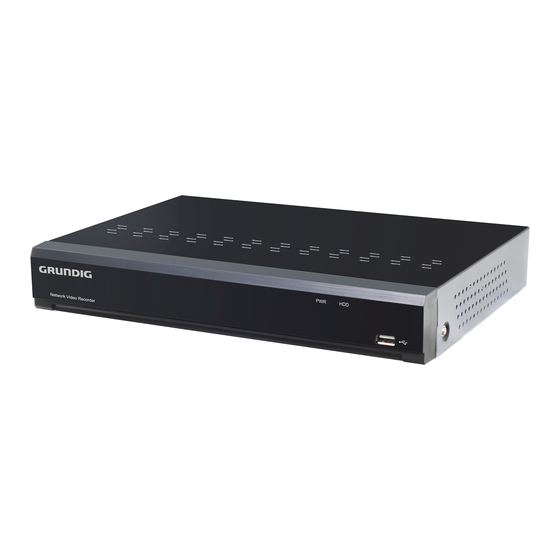

Summary of Contents for Grundig GU-RN-AC8104P
- Page 2 Please find the latest version at WWW.GRUNDIG-SECURITY.COM Limitation of Liability / Legal Disclaimer Abetechs GmbH (Grundig Security) undertakes all reasonable efforts to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s...
- Page 3 OPEN SOURCE SOFTWARE LICENSE INFORMATION The software components provided with Grundig products may contain copyrighted software that is licensed under various open- source software licenses. For detailed information about the...
- Page 4 You may obtain the complete corresponding open-source part of a specific product from us for a period of three years after our last shipment of this product by sending an email to: info@grundig- security.com Safety and Installation Instruction Introduction Please read these instructions carefully and keep them for future reference.
- Page 5 Improper use or replacement of the battery may result in the hazard of explosion. Do not use any accessories that are not recommended by GRUNDIG. Do not modify the product in any way. If the product starts to smell or smoke comes out of the device, immediately stop using the product and disconnect it from the power supply to prevent fire or electric shocks.
- Page 6 Special Installation Instructions for Recorders (NVRs and DVRs) Make sure that the last actual firmware is installed on the IP Device. You may get the actual firmware from www.grundig-security.com website or from tech-support@grundig-security.com. Make sure that the product is secured after installation and locate the recorder in safe places where children are not able to reach it.
- Page 7 Only use an HDD for this device that is recommended by GRUNDIG. The USB flash drive can only be connected to the USB-port of the device. Use the device in conjunction with an UPS if possible. To clean the product, gently wipe the outside with a clean dry cloth.
-
Page 8: Table Of Contents
Table of content 1 Rear Panel Interfaces Description ..........9 2 Installation and Connections ............11 NVR Installation ..............11 HDD Installation ..............11 3 Menu Operation ................13 3.1 Startup ................13 Activate Device ..............13 Set Recover Password ............14 User Login ................. - Page 9 Playback ................19 4 Accessing by Web Browser ............20...
-
Page 10: Rear Panel Interfaces Description
1 Rear Panel Interfaces Description The rear panel interfaces vary with different models. Refer to Table 1-1 for the common interface description of rear panels. Figure 1-1 Rear Panel Common Interfaces Description of Rear Panels Description 1&2 RJ45 Network interface to connect IP-cameras remotely over the Internet or locally. - Page 11 Power connector USB-interface RS485-interface Alarm output Alarm input Video output (HDMI, VGA) Audio output PoE-ports for IP-cameras...
-
Page 12: Installation And Connections
2 Installation and Connections NVR Installation During installation of the NVR: Use brackets for rack mounting. Ensure ample room for audio and video cables. When routing cables, ensure the bend radius of the cables are no less than five times of its diameter. Allow at least 2 cm (≈0.75 inch) of space among racks mounted devices. - Page 13 Figure 2-1 remove the cover Connect the data cable and power cable. Figure 2-2 connect the cables Match HDD screw threads with the reserved holes on the device bottom, and fix HDD with screws. Figure 2-2 fix the HDD...
-
Page 14: Menu Operation
3 Menu Operation 3.1 Startup Proper startup is crucial to expand the life of NVR. It is HIGHLY recommended to use an uninterruptible Power Supply (UPS) with the device. Plug power supply into an electrical outlet. Press the power button (certain models may have power button on the front or rear panel). -
Page 15: Set Recover Password
Set Admin Password Set Recover Password An admin user can configure security questions to create a recover password in case of resetting password. Steps Choose any question from the list and type in your answer. Repeat this step for questions 2 & 3. Note Please keep your answers in mind for the future. -
Page 16: User Login
Set the recover password User Login You have to log in to the device before operating the menu and other functions. Select User Name. Enter password for the selected user. Click OK to log in. Note If you have entered the wrong password for 5 times, the account will be locked for 180 seconds. -
Page 17: Network Settings
Network Settings TCP/IP settings must be properly configured before you can operate the device over a network. Steps 1. Go to Setup → Network → General Figure 3-3 TCP/IP setting 2. Configure network parameters as needed. Note Check Enable DHCP to obtain IP settings automatically if a DHCP server is available on the network. -
Page 18: Configure Date & Time
Configure Date & Time In this menu you can set the Date, Time, Date format, time format, time zone, NTP and DST. Go to Setup > System > General > Date and Time. Click onto the calendar icon to set the system date. In the Time field you can set the system time. -
Page 19: Manual
3.8.2 Manual IP-cameras in the same network as the NVR can be added individually to the system. Steps Go to Setup > Channel > IP Channels. Set the Default Password for the protocol (Private, ONVIF), RTSP) Click search to search for IP-cameras in the network. Click for cameras you want to add to the system Figure 3-4 Add IP Camera... -
Page 20: Recording Settings
playback, audio, digital zoom, stream, PTZ, picture settings, tag, AI-settings and start/stop recording. Recording Settings Before you start Make sure that the disk has already been installed. Steps 1. Go to Setup > Record > Record Schedule. 2. Select a camera. 3. - Page 21 4 Accessing by Web Browser You can get access to the device via web browser. The following web browsers are supported: Internet Explorer 10, Apple Safari, Mozilla Firefox, and Google Chrome. The supported resolutions include 1024*768 and above. Note The use of the product with Internet access might be under network security risks.
- Page 22 If the device is already activated, enter the user name and password to log in. Follow the installation prompts to install the plug-in before viewing the live video and managing the device. Note You may have to close the web browser to finish the installation of the plug-in.
