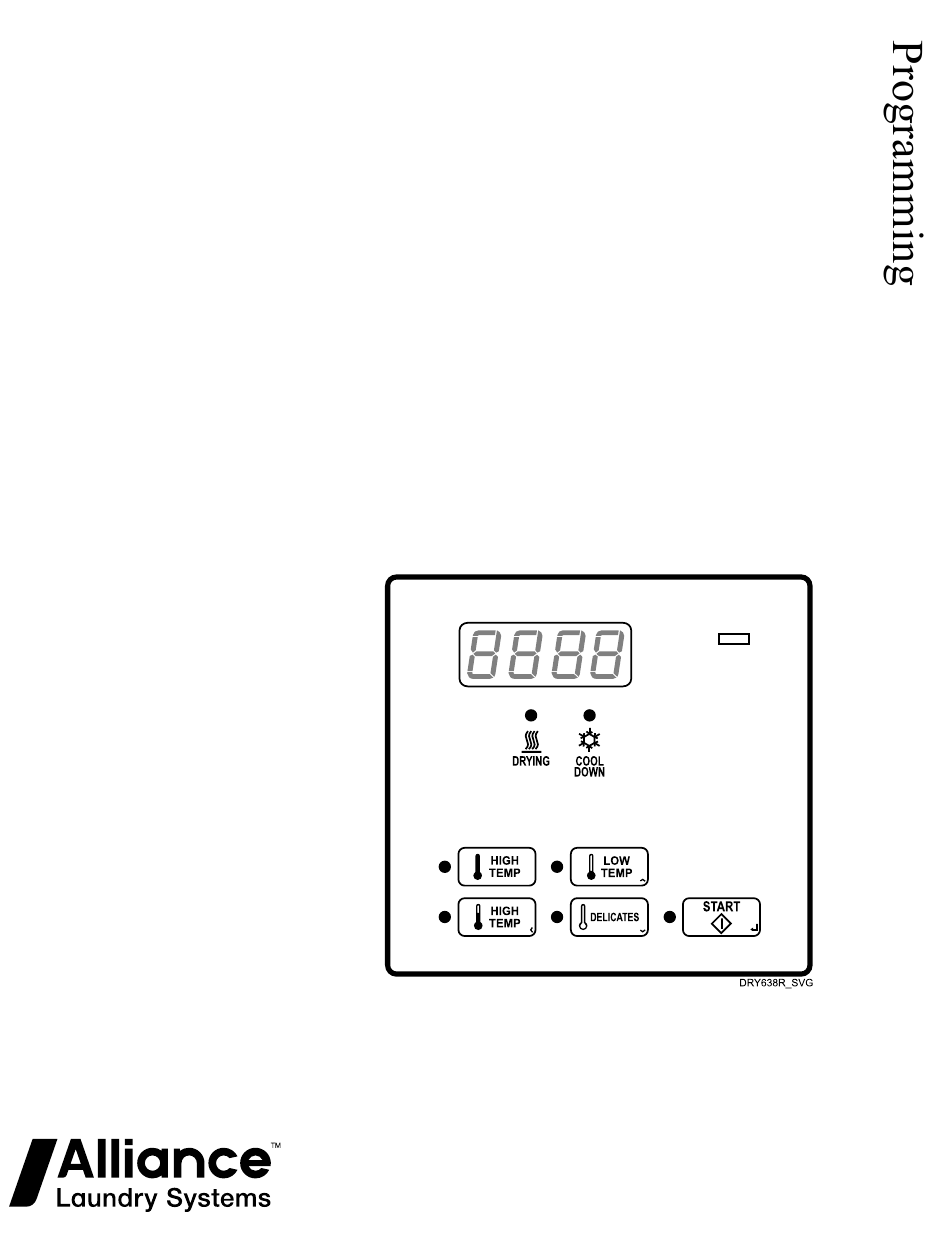

Dryer
Refer to Page 7 for Model Identification
Original Instructions
Keep These Instructions for Future Reference.
CAUTION: Read the instructions before using the machine.
(If this machine changes ownership, this manual must accompany machine.)
Part No. D516167ENR4
January 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BDEBCAGS173TN01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alliance Laundry Systems BDEBCAGS173TN01

Summary of Contents for Alliance Laundry Systems BDEBCAGS173TN01

  • Page 1 Dryer Refer to Page 7 for Model Identification Original Instructions Keep These Instructions for Future Reference. CAUTION: Read the instructions before using the machine. (If this machine changes ownership, this manual must accompany machine.) Part No. D516167ENR4 January 2019...
  • Page 3 Read all instructions before using unit. Hazardous voltage inside. Disconnect power before serv- icing. This product uses FreeRTOS V7.2.0 (www.freertos.org). © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 4: Table Of Contents

    Coin Drop....................14 © Copyright 2019, Alliance Laundry Systems LLC All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher.
  • Page 5 Entering the Audit Feature by Manual Mode..........30 Entering the Audit Feature with the Coin Vault Open........30 How to Read Audit Data................30 How to Exit Audit Feature................30 © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...
  • Page 6 How to Enter Rapid Advance During an Active Cycle........42 How to Exit Rapid Advance Feature............... 42 Power Fail Recovery................43 Communications Mode................. 44 Card Reader Communications (Card Models Only)..........44 © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 7: Model Identification

    NTEBXASP304NW22 SDEBYAGS173TW01 STEBXASP304NW22 BTEBLASP434AW01 HSEBYAGW293CW01 NTEBXASP543NW23 SDEBYRGS153TW01 STEBXASP304UW01 BTEBXASG454NW36 HSGBCAGW113TW01 NTEBYASP543NW23 SDEBYRGS173TW01 STEBXASP304WW01 BTEBXASP434AW01 HSGBDAGW093CW01 NTGBXASP304NW01 SDGBCAGS113TQ01 STEBXASP434AW01 BTGBLASP304AW01 HSGBEAGW093CW01 NTLBXASP304NW26 SDGBCAGS113TW01 STEBXASP434AW12 Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...
  • Page 8 HDEBERGS153CW01 HTEBXASP304NW22 PDGBCRGS113TG02 SDGBXRGS113TW01 STGBXASP544DW01 HDEBERGS173CW01 HTEBXASP544DW01 PDGBCRGS113TW02 SDGBXRGS113TW02 STGBYASP115TW01 HDEBXAGS173CW01 HTEBYASP285CW01 PDGBERGS113CG02 SDGBXRGS303AW01 TDEBXAGS403UW01 HDEBXAGS543DW01 HTGBCASP115TW01 PDGBERGS113CW02 SDGBYAGS113TW01 TSEBXAGW303NW22 HDEBXAGS543FW01 HTGBDASP095CW01 PDGBXRGS113CG02 SDGBYRGS113TW01 TTEBXASP304NW22 © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 9: Preliminary Information

    START pad. If the power failure occurs while the control is in a fatal error mode, it will return to Ready Mode upon recovery. Communications The control may be programmed manually. © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 10: Control Identification

    HIGH DELICATES TEMP DRY638R_SVG1 1. Display 2. 7-Segment Digits 3. START Pad 4. SELECT CYCLE Pads 5. LED Light 6. LED Status Lights Figure 1 © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 11: Display Identification

    During diagnostic testing or manual programming of the control, these digits will display descriptive codes and values (as descri- bed in Entering the Manual Mode). © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 12: Dryer Operation

    When any of the above happens, the display will revert back to the Ready Mode. © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 13: Signals

    This signal will sound one second on and one second off for 10 seconds when START LED is flashing after vend has been satis- fied. © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 14: Special Features

    Machine Configuration #4 Display Test trol. • Machine Configuration #5 Display Test For detailed information on running diagnostic tests, refer to Testing Machine and Electronic Control Functions. © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 15: Opening The Service Door

    This will allow the user to access various programming options, diagnostics and audit capabilities. The control panel is located on the control hood. Refer to Figure 2 . © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 16: Entering The Manual Mode

    5. The display will show rAPd. 6. Press the LOW TEMP (∧) or the DELICATES (∨) keypad to scroll through the options until the desired option appears in the display. © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 17: How To Exit Programming Feature

    Refer to Diagnostic Tests flowchart. TMB1587R_SVG Figure 3 How to Exit Programming Feature Press the MED TEMP (<) keypad until the control returns to Ready Mode. © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 18: Programming Control

    1 (High Temp), 2 (Low dCyC Temp) Card Reader Display on/oFF CArd Control On/Off Global Audio Signal on/oFF (On/Off) Global Errors (On/Off) on/oFF Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...
  • Page 19 115°F/46°C no heat, 100°-160°F/ dELt 38°-72°C Temperature (Fahren- FAHr FAHr/CELS t FC heit/Celsius) Heat Indicator Decimal on/oFF HtdP Point (On/Off) OPL Mode Enable on/oFF (On/Off) © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...
  • Page 20 Programming Control Figure 4 © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...
  • Page 21 Programming Control Figure 5 © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 22: Vend Price Ats Changing Vend Price

    START (enter) keypad to enter the value of the digit and ad- vance to the next digit. 3. AtS will appear in the display. Press the START (enter) key- pad. © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 23: Cycle Time Minutes Cycl

    The new value is saved and the next option in the parameter will appear in the display. NOTE: The default for Coin 1 Top-Off Time Seconds is 0. © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 24: Coin 2 Top-Off Time Minutes C2To

    For example, the coin value for a dollar coin would be measured in cents (100). Therefore, the coin value entered for one dollar coin would be 0100. © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 25: Start Pulse Value Plse

    Table 1 tion without changing the value press the MED TEMP (<) keypad. NOTE: The default cycle programmed at the factory is 4, Med Temp. © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 26: Card Reader Display Control Card

    Prog appears in the display. Press the START (enter) key- pad and AtS will appear in the display. 1. Control must be in Manual Mode. Refer to Entering the Man- ual Mode. © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 27: Time Display Format T Df

    145°F [62°C] 150°F [66°C] 155°F [68°C] 160°F [71°C] 165°F [74°C] 170°F [77°C] 175°F [79°C] 180°F [82°C] Table 2  continues... © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 28: Medium Temperature Nd T

    4. When Lo t appears in the display, press the START (enter) NOTE: The default value is 0. keypad. The current temperature set for Low Temperature will appear in the display. © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 29: Heating Indicator Decimal Point Htdp

    6. Press the START (enter) keypad when the desired status ap- pears in the display. The new value is saved and the next op- tion will appear in the display. © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 30: Collecting Audit Information

    PLSE Total # of coin 1 top-offs toC1 Total # of coin 2 top-offs toC2 Total # of start pulse/card toPL reader top-offs Table 3 © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 31: Manual Reset

    If START (enter) keypad is pressed while yEs is selected, the control will go to diAg. If no is selected, no change to programming will be made. © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 32: Testing Machine And Electronic Control Functions

    10 C1xx Coin Drop #2 Input Test d 11 C2xx Vend Header Present Status Test CHoP (Open) or CHCL (Closed) d 12 Table 4  continues... © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...
  • Page 33 Machine Configuration #3 Display Test d 31 Cxxx Machine Configuration #4 Display Test d 32 dxxx Machine Configuration #5 Display Test d 33 exxx Table 4 © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...
  • Page 34 Machine Configuration #2 Display Test "d 31" Machine Configuration #3 Display Test "d 32" Machine Configuration #4 Display Test "d 33" Machine Configuration #5 Display Test DRY616R_SVG Figure 8 © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 35: Diagnostic Test Descriptions

    To exit the Coin Vault Opening Test, press the MED TEMP (<) This option tests the temperature inside the cylinder while run- keypad. The control will return to the testing mode. ning a cycle. © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 36: Door Switch Input Test

    Machine Configuration Display #2 Test Machine Configuration Display #3 Test This option is not used on this model. This option is not used on this model. © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 37: Machine Configuration Display #4 Test

    Show Entire Display Mode test cycle. All LEDs and display segments will light Show Entire Display Mode This mode will light all display elements. Table 6  continues... © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...
  • Page 38 Table 6 NOTE: If power to the control is turned off before 10 Mi- nute Test Cycle has ended, the cycle will be cleared from control. © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 39: Error Codes

    No Card Reader Initialization Communication is valid, but there is no EC11 card reader initialization. Power down, power up and try again. Table 7  continues... © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...
  • Page 40 If problem persists, replace thermistor or output board. Board ID Incorrect replacement control. Replace E id user control or output board with correct part. Table 7  continues... © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...
  • Page 41 Motor Output Shorted Hardware failure. Replace output board. E nS Table 7 © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 42: Rapid Advance Feature

    Control may be in an active cycle or in the ready mode to use the Rapid Advance feature. How to Exit Rapid Advance Feature Advance through the cycles until reaching the Ready Mode. © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 43: Power Fail Recovery

    START pad to continue the cycle. © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...

  • Page 44: Communications Mode

    The control can be program- med for a limited number of options and have its data read with- out using the keypad. © Copyright, Alliance Laundry Systems LLC - Part No. D516167ENR4 DO NOT COPY or TRANSMIT...
