Related Manuals for Siargo MF-HD Series
Summary of Contents for Siargo MF-HD Series

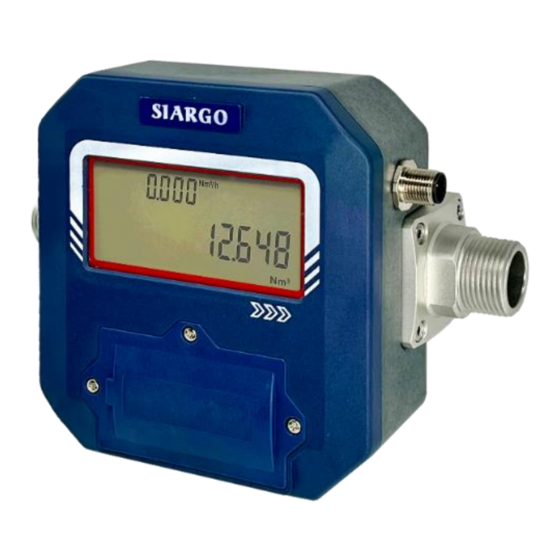

- Page 1 Gas Flow Meters MF-HD Series With MEMS Thermal Mass Flow Sensing VA.2 @ 2022 Siargo Ltd. www.Siargo.com...
- Page 2 Tel: +1(408)969.0368 Email: info@siargo.com © Copyright 2022 by Siargo Ltd. Siargo Ltd. and its subsidiaries reserve the right to change the specifications and/or descriptions without prior notice. For further information and updates, please visit www.Siargo.com. www.Siargo.com MFHD Gas Flow Meter User Manual...
- Page 3 • Do not force the connection. If the thread is not the same as the pipeline, user an adapter or contact the manufacture for the correct model. www.Siargo.com MFHD Gas Flow Meter User Manual P a g e...
-
Page 4: Table Of Contents
Other gases ............................19 Technical specifications ..........................20 Technical notes for the product performance ..................21 Measurement principle ........................21 Precautions for the best performance of the product..............21 www.Siargo.com MFHD Gas Flow Meter User Manual P a g e... - Page 5 Service/order contact and other information ..................25 Appendix I: Meter evaluation via RS485 Modbus ..................26 AI-1. Connect the meter to a PC........................26 AI-2. Software description ..........................26 Appendix II: Document history ........................27 www.Siargo.com MFHD Gas Flow Meter User Manual P a g e...
-
Page 6: Overview
In addition to the general-purpose flow metering, the MFHD series can be applied for utility gas metering that is designed and manufactured with Siargo’s proprietary MEMS (micro-electro- mechanical systems) thermal (D-thermal) sensing technology. The products offer mass flow metering for gases with large dynamic ranges while having a low-pressure drop. -
Page 7: Receipt / Unpack Of The Products
This user manual shall also be included in the packing box or via an online request for an electronic version. In most cases, this manual shall be made available to the customer before the actual order. www.Siargo.com MFHD Gas Flow Meter User Manual P a g e... -
Page 8: Knowing The Products
Contact the manufacturer for the solutions. Change of the battery for the communication operation would be dependent on the frequency of the data transmission. Consult the manufacturer or local dealer for recommendations. www.Siargo.com MFHD Gas Flow Meter User Manual P a g e... -
Page 9: Mechanical Dimensions
3.3 Mechanical dimensions Figure 3.2: Dimensions of MF19HD Figure 3.3: Dimensions of MF25HD www.Siargo.com MFHD Gas Flow Meter User Manual P a g e... -
Page 10: Installation
Additional safety measures during the installation should be applied. This includes but is not limited to leakage verification procedures, standard EDS (electrostatic discharge) precautions, DC voltage precautions, and heavy-duty precautions. Other tasks, such as calibration, part www.Siargo.com MFHD Gas Flow Meter User Manual P a g e... - Page 11 5DN should be in place. Figure 4.2: Installation recommendation (a) 90-degree elbow or T-piece (b) 2x90 degree elbows Figure 4.3: Installation recommendation www.Siargo.com MFHD Gas Flow Meter User Manual 10 | P a g e...
- Page 12 The product should avoid strong electromagnetic interference sources nearby or periodic mechanical shocks to its body or pipeline. e) Slowly open/close valves to prevent abrupt pulse flow impact, damaging the product. www.Siargo.com MFHD Gas Flow Meter User Manual 11 |...
-
Page 13: Basic Operation
5.3 Check the leakage Check leakage before any measurement. If needed, pressurized nitrogen or air can be used for the leakage check. 5.4 Display Figure 5.1: LCD symbol illustration. www.Siargo.com MFHD Gas Flow Meter User Manual 12 | P a g e... -
Page 14: Remote Operation / Wireless Data
The remote user can execute the following functions. This portion shall be updated with customer feedback. • Read the meter data • Setting the parameters • Receive the alarms • Others TBD www.Siargo.com MFHD Gas Flow Meter User Manual 13 | P a g e... -
Page 15: Pressure Loss In Lpg
Table 5.2: Data wire assignment. Wire Color Definition Brown Power supply (5~16 Vdc) White RS485B (-) Blue GND, ground Socket Cable Black RS485A (+) Gray N.C. Figure 5.3: Socket and Cable www.Siargo.com MFHD Gas Flow Meter User Manual 14 | P a g e... -
Page 16: Rs485 Modbus Communication Protocol
Refer to Appendix I for the specific connection for the current product. The digital converter provided by Siargo allows you to plug and play with the meter for its basic functions. For experienced users, the followings are the explanation of the digital interface. -
Page 17: Frame
Note: At the time of shipping, the write protection function is enabled except for address and baud rate. Once the user completes the register value change, the write protection will be automatically enabled once again to prevent incidental data loss. www.Siargo.com MFHD Gas Flow Meter User Manual 16 |... - Page 18 20.340 SLPM, the user will read “0” from register Notes 0x003A and “20340” from register 0x003B, therefore Current flow rate = (0*65536+20340)/1000 = 20.340 www.Siargo.com MFHD Gas Flow Meter User Manual 17 | P a g e...
- Page 19 (write protection is disabled). After the write Notes execution is completed, the firmware will automatically re-enable the write protection. Only Address and Baud rate will not be write-protected. www.Siargo.com MFHD Gas Flow Meter User Manual 18 | P a g e...
-
Page 20: Product Selection
400 SLPM MF25GD G10 NPT 1” or BSPT 1” 0.36 m3/h 6 SLPM 36 m3/h 600 SLPM Note: Air, N2, Ar, and O2 have the same flow ranges. www.Siargo.com MFHD Gas Flow Meter User Manual 19 | P a g e... -
Page 21: Technical Specifications
*Battery life depends on usage and environment, for LPG cylinder applications, battery life can be a minimum of 10 years. **For other gases, please contact the manufacturer. www.Siargo.com MFHD Gas Flow Meter User Manual 20 | P a g e... -
Page 22: Technical Notes For The Product Performance
NIST standard. In normal operation, the product should maintain its status as that at the shipment. However, it is recommended that the product be re-calibrated at least once a year for heavy usage. www.Siargo.com MFHD Gas Flow Meter User Manual 21 |... -
Page 23: Troubleshooting
Circuitry instability Check system, power off No digital interface Wrong address, software Check commands, connection No wireless, BT cannot pair Wrong model, data jam Check model, power off/on www.Siargo.com MFHD Gas Flow Meter User Manual 22 | P a g e... -
Page 24: Warranty And Liability
The products returned under warranty to Siargo shall be at the user or purchaser's risk of loss and will be returned, if at all, at Siargo's risk of loss. Purchasers or users are deemed to have accepted this limitation of warranty and liability, which contains the complete and exclusive limited warranty of Siargo. - Page 25 (5) Any damages incurred by the incorrect usage of the products; (6) Siargo does not provide any warranty on finished goods manufactured by others. Only the original manufacturer's warranty applies;...
-
Page 26: Service/Order Contact And Other Information
11. Service/order contact and other information Siargo Ltd. is making every effort to ensure the quality of the products. In case of questions and or product support, please contact your direct sales, or in case you need additional assistance, please contact customer service at the address listed below. -
Page 27: Appendix I: Meter Evaluation Via Rs485 Modbus
For evaluation or test of the meter, the user can use the RS485 Modbus for the digital data output. For the convenience of the application, Siargo offers user application software and a digital converter that can be used to connect the meter to a Microsoft Windows-compatible computer for digital data reading or acquisition. -
Page 28: Appendix Ii: Document History
Revision VA.2 (July 2022) ➢ Minor corrections ➢ Update service information. Revision VA.1 (February 2022) ➢ Add additional gas options; minor addition. Revision VA.0 (March 2021) ➢ First release. www.Siargo.com MFHD Gas Flow Meter User Manual 27 | P a g e...
