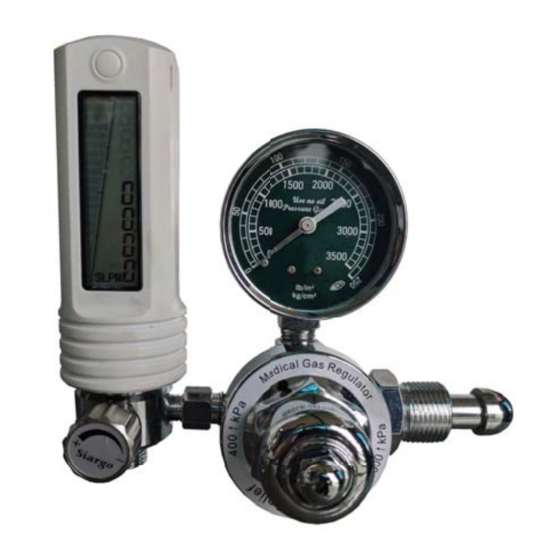

- Page 1 Smart Gas Cylinder Meters with IOT technology MF5806-G Series User Manual (VA.0) ISO 9001 ISO 14001 OHSAS 18001 SIARGO LTD. Please read this manual for ensuring correct use of this product. Make the manual available for easy access.
- Page 2 Smart Gas Cylinder Meters with IOT technology MF5806-G Series User Manual Document No. 10-2017-M14 EN Issue date: 2017.08 Revision: VA.0 Siargo Ltd. 3100 De La Cruz Boulevard, Suite 210, Santa Clara, CA 95054 Tel: +1(408)969.0368 Email: info@siargo.com © Copyright 2017 by Siargo Ltd. Siargo Ltd. and its subsidiaries reserve the rights to change the specifications and/or descriptions without prior notice. For further information and updates, please visit: www.Siargo.com...
-
Page 3: Restriction On Use
Do not use this product in any environments where safety may be a concern. Only a qualified person from Siargo or a person who is accredited by Siargo can perform troubleshooting services to the product, Siargo is otherwise not liable for any consequences thereafter. -
Page 4: Table Of Contents
SAFETY PRECAUTION ................Content ..................... Overview ....................Features ....................Working Principle ..................Description ....................Specifications .................... Dimensions ....................Menu Illustration ..................Parts in Package ..................Safety and Maintenance ................Customer Service ..................Warranty and Liability ................Appendix A APP Menu................www.Siargo.com... -
Page 5: Overview
Medical gas cylinder for homecare and emergency care Fuel gas cylinders for home appliances Welding gas cylinder management Laboratory gas cylinder management Special gas cylinder safety enhancement Gas cylinder production, inventory and dispatch management www.Siargo.com... -
Page 6: Working Principle
Smart cylinder meter User manual Working Principle The MF5806-G smart cylinder meter measures flow using Siargo’s Flow direction proprietary MEMS calorimetric mass flow sensor that is installed in the flow channel forming a plate which serves as an additional flow conditioner from the boundary layer configuration resulting in a laminar flow. -
Page 7: Specifications
The smart cylinder meter can be combined with any types of the cylinder regulators. If required, pressure sensor can also be integrated with the smart cylinder meter. Siargo can also supply the cylinder regulators and assembly with the smart cylinder meter, customer is required to provide desired regulator standard for reference. -
Page 8: Dimensions
Instant flow • • (bar-chart) graph at the left for details. The “Function key” is located on the upper front of the meter head. 2. Operation The followings describe the details for each menu step. Please read carefully before use. www.Siargo.com... - Page 9 2.4 Exit Briefly press the function key, the screen will switch to “Exit” menu. At “Exit” menu, press & hold the function key, the meter will return to normal operation menu. www.Siargo.com...
- Page 10 * Press & hold function key to confirm the entry Press & hold function key Password Correct? Press & hold Briefly press function key function key Reset time counter Briefly press function key Press & hold function key Quit button menu www.Siargo.com...
-
Page 11: Parts In Package
For updates of the product certification information, please contact manufacturer or visit www.Siargo.com. Use for other gases such as extreme corrosive and toxic agents may cause the product malfunctioning or even severe damages. The product sealing is ensured to work under working pressure of 0.8MPa and is leakage proof before the shipment. -
Page 12: Customer Service
3100 De La Cruz Boulevard, Suite 210, Santa Clara, California 95054,USA Phone: +01(408)969-0368 Email: info@Siargo.com For orders, please provide accurate and full post address. Siargo will not ship to P.O. Boxes or via a third party. For further information and updates, please visit www.Siargo.com. www.Siargo.com... -
Page 13: Warranty And Liability
To the extent permitted by law, the exclusive remedy of the user or purchaser, and the limit of Siargo's liability for... -
Page 14: Appendix A App Menu
APP setup Ø Install the Smart Cylinder.apk to your Android devices. Run the APP Open the APP, the following windows will display. About 3 seconds later, the APP will start to search the cylinders that have Siargo’s smart cylinder meter. www.Siargo.com... - Page 15 Select a smart cylinder meter, and it will show the home page. There are 4 functions can be accessed: Setup, Save, Query and Disconnect/Connect. Setup Click the “SETUP” button, one can set the parameters via cylinder menu as below www.Siargo.com...
- Page 16 Click the “SAVE” button, the current cylinder data/records will be saved. Query the data Click the “Query” button, one can select the meter, and then query the data. Disconnect/Connect Click the “Disconnect” button, the connection will be disconnected. Click the “Connect” button, the selected meter will be connected. www.Siargo.com...
- Page 17 Smart cylinder meter User manual Appendix B: Revision History Revision A.0 (September 2017): First released. www.Siargo.com...
