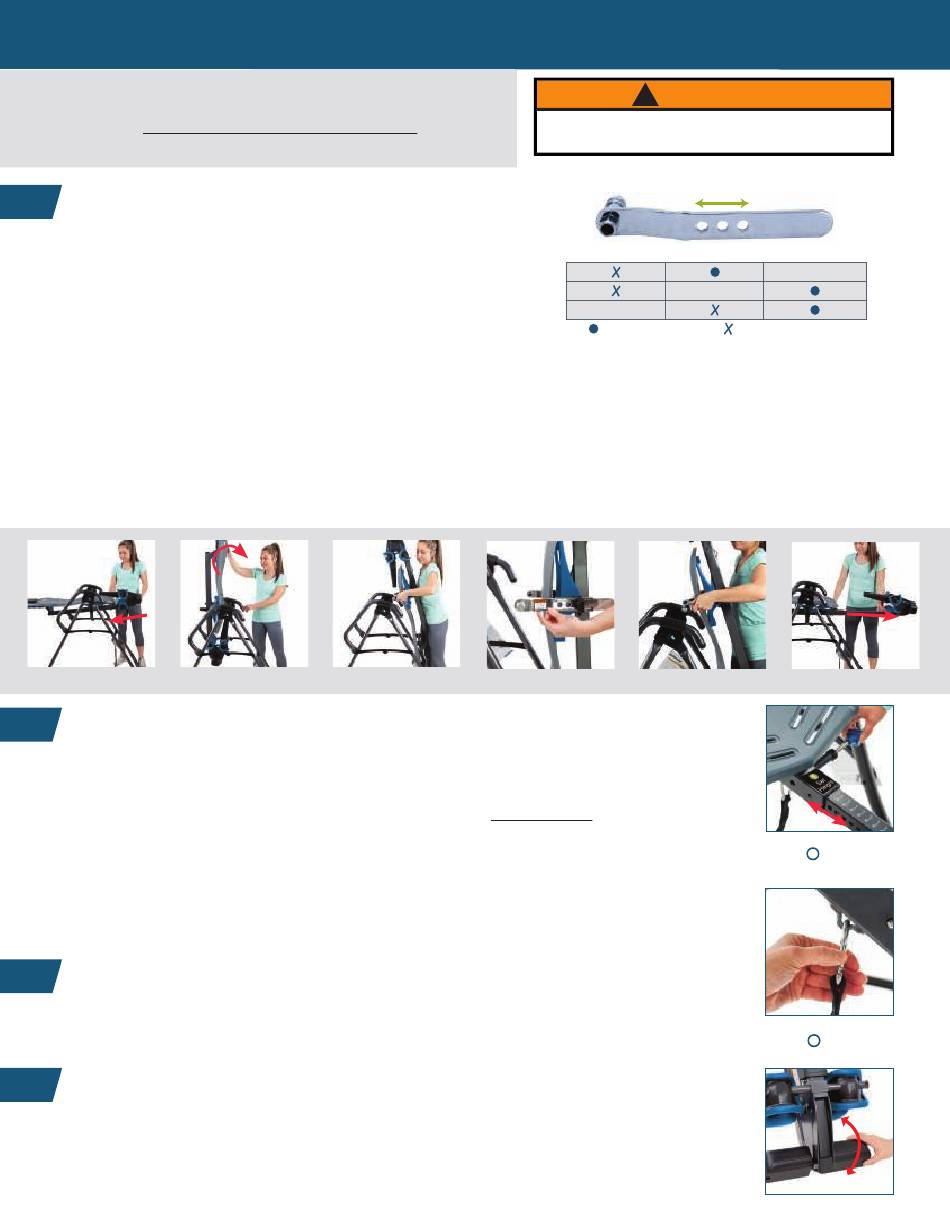

U S E R S E T T I N G S
There are four (4) User Settings on your Teeter
adjusted for your unique needs and body type. Take time to find your
ideal settings. Every time prior to using the inversion table, make sure
the User Settings are adjusted to your personal settings.
1
R OLL ER H IN GES: FIND SET TING
The Roller Hinges control the responsiveness or rate of rotation of
the inversion table. There are three holes; the hole selection
depends both on your body weight and the rotational
responsiveness you desire (diagram right). For users just learning to
use the inversion table, use the 'Beginner / Partial Inversion' setting.
Changing the Roller Hinge Setting
1. Pull out the Height-Selector Locking Pin and slide the Main Shaft
in all the way to the very last hole (the storage setting near the Rear Ankle Cups). Release and engage the Pin (Figure 1).
2. Stand in front of the Table Bed and rotate it opposite from use (Figure 2) to rest against the Crossbar of the A-Frame.
3. Grasp each Roller Hinge under the Pivot Pins, using your thumbs to open the Self-Locking Hooks over the Pivot Pins (Figure 3).
Lift both sides of the Table Bed out of the A-Frame and rest the head of the Table Bed on the floor.
4. Open each Cam Lock completely. Disengage the Roller Hinge from the Bracket Pin and slide it to the desired setting (Figure 4).
Engage the Bracket Pin in the same Roller Hinge hole setting on each side. Secure the Cam Lock.
5. Re-attach the Table Bed into the A-Frame Hinge Plates (Figure 5). Ensure the Self-Locking Hooks snap closed over each Roller Hinge
Pivot Pin. Rotate the Table Bed to the use position and adjust the Main Shaft for use (Figure 6).
Figure 1 Figure 2
2 M AI N SHA F T: DET ERM INE A HEIGHT SET TING
1. Stand on the left side of the A-Frame. Pull out the Height-Selector Locking Pin with your right hand while
sliding the Main Shaft out with your left (Figure 7). For ease of adjustment, rotate the Bed by lowering the
Main Shaft below horizontal to lengthen it or lifting above horizontal to shorten it.
2. Start by sliding the Main Shaft until the last setting you can read is one inch greater than your height
(e.g. if you're 5 ft 10 in/178 cm, the last numbers visible will be 5 ft 11 in/180 cm). This helps to ensure that
the rotation of the table is not too fast. You will test to see if this setting is right for you later. Your ideal
height setting will depend on your weight distribution and could vary several inches on either side
of your actual height.
3. Release the spring-loaded Height-Selector Locking Pin to fully engage a hole setting. Use caution to
prevent pinching fingers. Ensure the Pin passes completely through the Main Shaft.
3
A NGLE T ETH ER: PRE-SET THE ANGL E
Attach the Angle Tether to the U-Bar under the Table Bed (Figure 8) to limit the degree of rotation.
Slide the buckle to lengthen or shorten the tether to pre-set your desired maximum inversion angle,
or unclip the tether altogether when you are ready to rotate into full inversion.
4
A NKL E CO MFORT DI AL
The Ankle Comfort Dial rotates into a High (1) or Low (2) setting (Figure 9), with a one inch height variance.
Set the Ankle Comfort Dial so the Front & Rear Ankle Cups secure around the smallest part of your ankles
(with minimal distance between the Ankle Lock System and the top of your foot). This will reduce body slide
on the Table Bed while inverted, which can cause a shift in weight distribution and interfere with the ease of
which you can control your rotation.
that must be properly
®
Figure 3 Figure 4
: FIND YO UR SET TING
™
FitSpine X2
WARNING
!
Failure to set these adjustments correctly may result in
too rapid inversion or difficulty returning upright.
Most
Responsive
A near Pivot Pin B
Top Hole Middle Hole
80-120 lb
120-220 lb
220-300 lb
Beginner / Partial Inversion
Figure 5
Owner's Manual - 2
™
Least
Responsive
C opposite Pivot Pin
Bottom Hole
36-54 kg
54-100 kg
100-136 kg
Suggested for Full Inversion
Figure 6
Figure 7
1 Set Height
Labeled
right on the equipment!
Figure 8
2 Set Angle
Labeled
right on the equipment!
Figure 9
