Genelec 8000-422B Instruction Manual

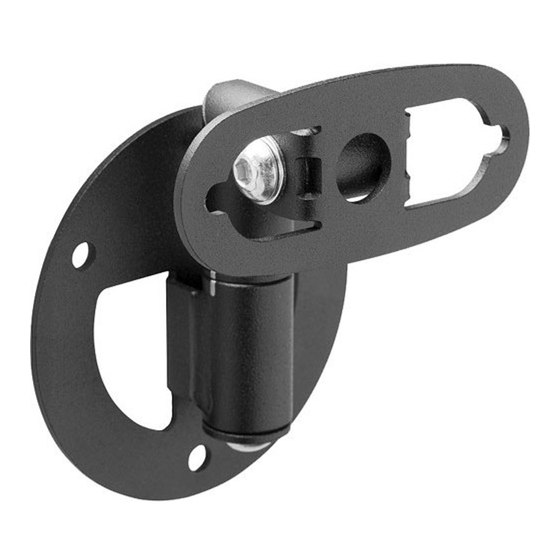

8000-422B/W WALL MOUNT for GENELEC 6010A, 8020B, 8030A
Instruction Manual

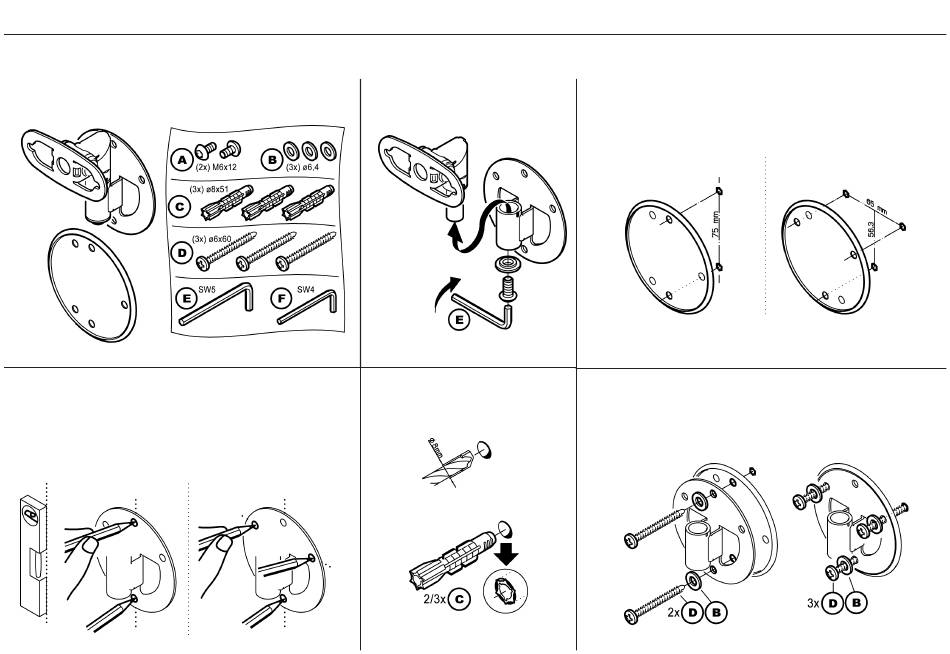

1. Equipment
speaker holder
with wall plate
decorative
plate
3. Wall mount preparation
3.a Determine wall fastening
3.a.1 Provided screw/dowel set is suitable for:
concrete, full brick, perforated brick & drywall
3.a.2 For other walls like wood, adobe etc. use adequate anchors
3.b Adjust wall plate vertically and mark drilling holes (two options):
3.b.1 Two-hole-pattern
2. Separate speaker
2. holder from wall plate
2.b
Remove
speaker holder
from wall plate
2.a
Loosen
lower bolted
assembly
3.b.2 Three-hole-pattern
3.c Anchor holes drilling
3.c for two or three hole
3.c pattern: - dia. 8 mm
3.d Blow out holes and
3.d place anchors
black/white
4. Wall mount fastening
4.a
Adjust decorative plate according to the drilled two-or-three-hole-pattern
4.a.1 Two-hole-pattern
4.b
Bolt down the wall plate along with the decorative plate
onto the wall
Use two or three screws depending on the prepared hole pattern
4.a.2 Three-hole-pattern
