Genelec S360-444B Instruction Manual

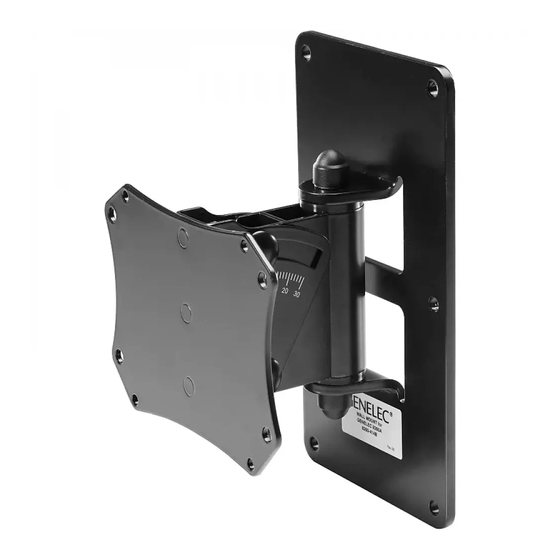

S360-444B GENELEC Wall Mount for GENELEC S360, 8260, 8x5x
Instruction manual

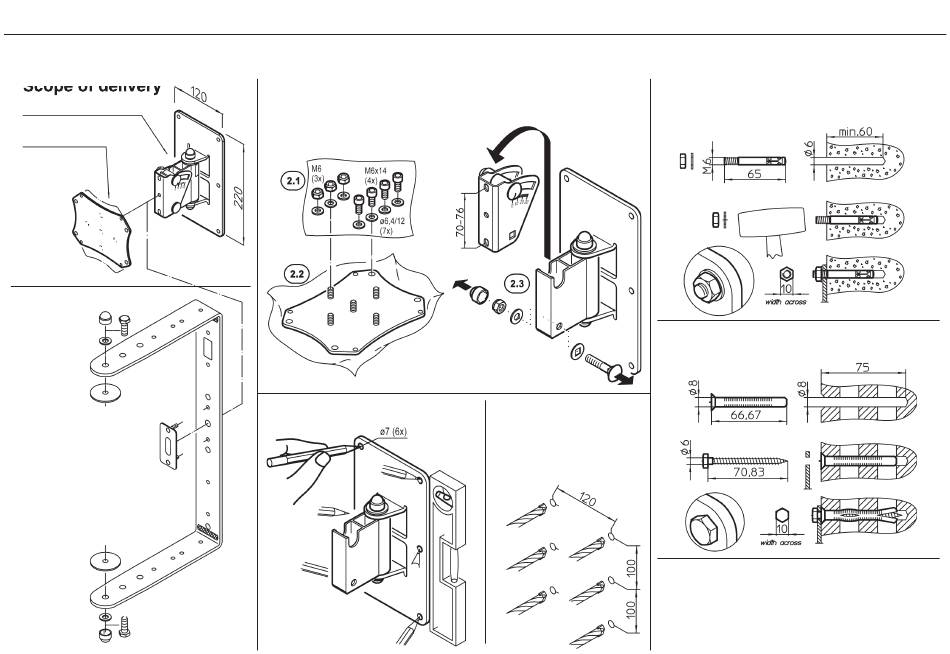

1. Scope of delivery

WALL MOUNT BRACKET
ADAPTOR PLATE
for:
GENELEC 8260A
GENELEC 8x5x
(enables
horizontal
and
vertical
position
of the 8351)
- Not included! -
U-bracket mounting adaptor
for
GENELEC S360
S360-424B
K&M 24468-000-56
2. Required arrangements
2.a
Check if all the componets are there and o.k.
2.1 - Screws, safety nuts and washers (in a PE-bag)
2.2 - Adaptor plate (in air cushion)
2.3 - Wall mount bracket
3. Wall bracket fastening
3.a
Adjust wall
plate vertically
2.c
Gather U-bracket from wall bracket
2.b
Loosen lower
bolted assembly
3.b
Anchor holes drilling (6x)
diameter
-6 mm steel-anchor-bolt
-8 mm universal frame fixing set
4. Wall mount options
A concrete wall - e.g.: steel-anchor-bolt M 6 x 65 mm
- drill and blow out hole, place anchor, wall bracket and washer,
tighten hexnut
B perforated bricks - e.g.: unsiversal frame fixing set
B 8 x 80 mm
- drill, countersink and blow out hole, place anchor and bracket,
fix hexagon head wood screw
C injection-molded-anchor
- without sieve bushing for concrete wall
- with sieve bushing for perforated bricks /
- optional with threaded bolt M6 or threaded bushing M6
Advantages: fixing without pressure, enables repeated mounting,
Advantages: capable for diverse wall materials
Advantages: (please notice instructions of anchor manufacturers).
